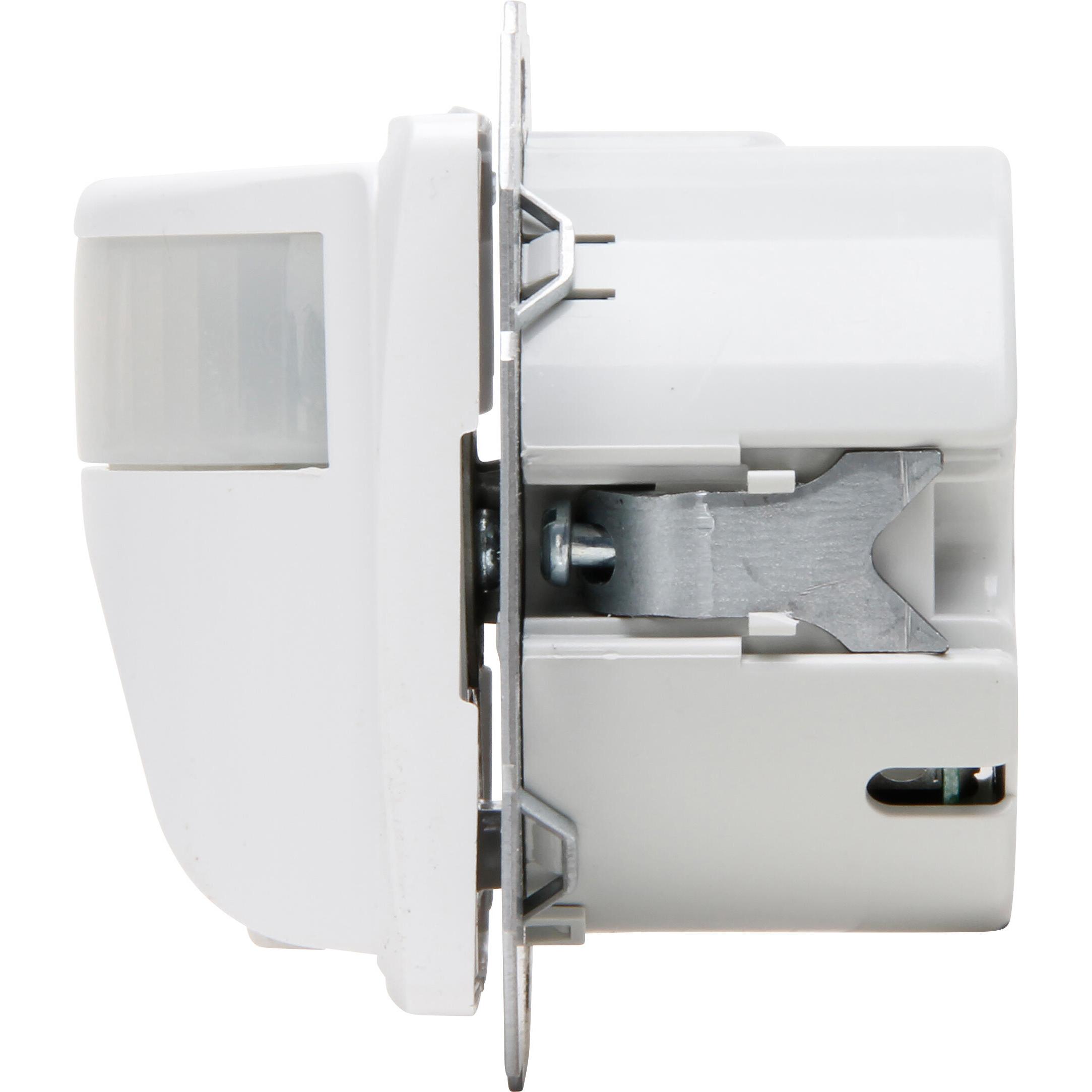

INFRAcontrol T 180°, infrared motion switch, 2-wire, 40 – 400 W, arctiv-white
INFRAcontrol T180° UP IP20, Infrared motion detector, flush-mounted, with toggle switch: permanent OFF, Automatic, permanent ON, 230V~, 50-60Hz, 2-wire device, resistive load 40-400W, twilight threshold continuously adjustable, adjustable from 4-240 seconds, detection range 180°, range 10 m, protection class IP20, compatible with Kopp switch ranges: EUROPA/PARIS/MALTA, in Technic Center packaging, color: arctic-white
| Characteristic | Value |
|---|---|
| Article Nr | 805800515 |
| PU | 2 |
| EAN | 4008224694100 |
| Dim function with dimmer basic element | no |
| With alarm function | no |
| Connection type | Screwed terminal |
| Response value sensitivity adjustable | ja |
| Response value luminosity | 5 – 1000 lx |
| Response value luminosity adjustable | yes |
| Anti-bacterial treatment | no |
| Model | Movement sensor |
| Surface finishing | Glossy |
| Switch-off delay | 0 s |
| Width | 70,0 mm |
| Built-in width | 70,0 mm |
| Built-in length | 70 mm |
| Built-in depth | 40,0 mm |
| Switching-on delay | 0 s |
| Diameter detection range on floor | 10 m |
| Detection angle horizontal | 0 – 180 ° |
| Colour | arctic white |
| Remote operation | no |
| Suitable for C-load | no |
| Suitable for ceiling mounting | nein |
| Suitable for wireless transmission | no |
| Suitable for wall mounting | yes |
| Halogen free | no |
| HVAC-control | no |
| IFTTT support available | no |
| Compatible with Amazon Alexa | no |
| Compatible with Apple HomeKit | no |
| Compatible with Google Assistant | no |
| Constant light control | no |
| Max. duty cycle | 4 min |
| Max. starting current | 6,00 A |
| Max. transmission range frontally | 10,000 m |
| Max. transmission range sideways | 10,000 m |
| Max. switching power | 400 W |
| Max. switching power LED | 0 W |
| Min. switch-on time | 4 s |
| Min. starting current | 0,00 A |
| Min. depth of built-in installation box | 40,0 mm |
| With acoustic sensor | no |
| With connection cable | no |
| With DALI interface | no |
| With remote control | no |
| With signal unit | no |
| Mounting method | Flush mounted |
| Substation input | no |
| Nominal voltage | 230 – 230 V |
| Surface protection | Untreated |
| Optimum mounting height | 1,2 m |
| RAL-number (similar) | 9016 |
| Background monitoring | nein |
| Teach-function for response value luminosity | no |
| Depth | 40,0 mm |
| Animal zone | no |
| Transparent | no |
| Staircase monitoring | no |
| Creep-under protection | no |
| Networkable | no |
| Material | Plastic |
| Material quality | Thermoplastic |
| Forced switch off | no |
| Forced switch on | no |
| Bridging switch | yes |
| Netzstecker - Typbezeichnung | ohne |
