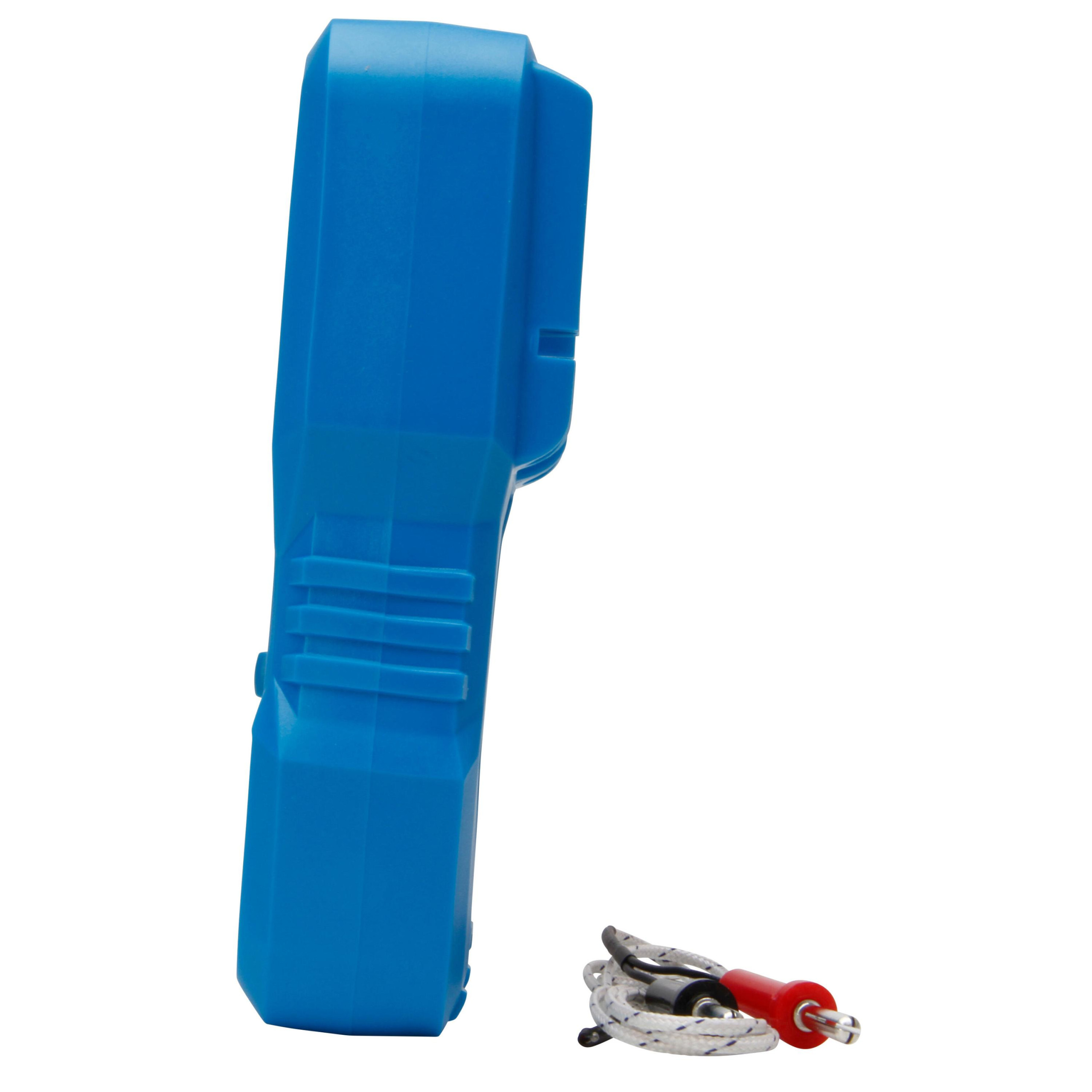

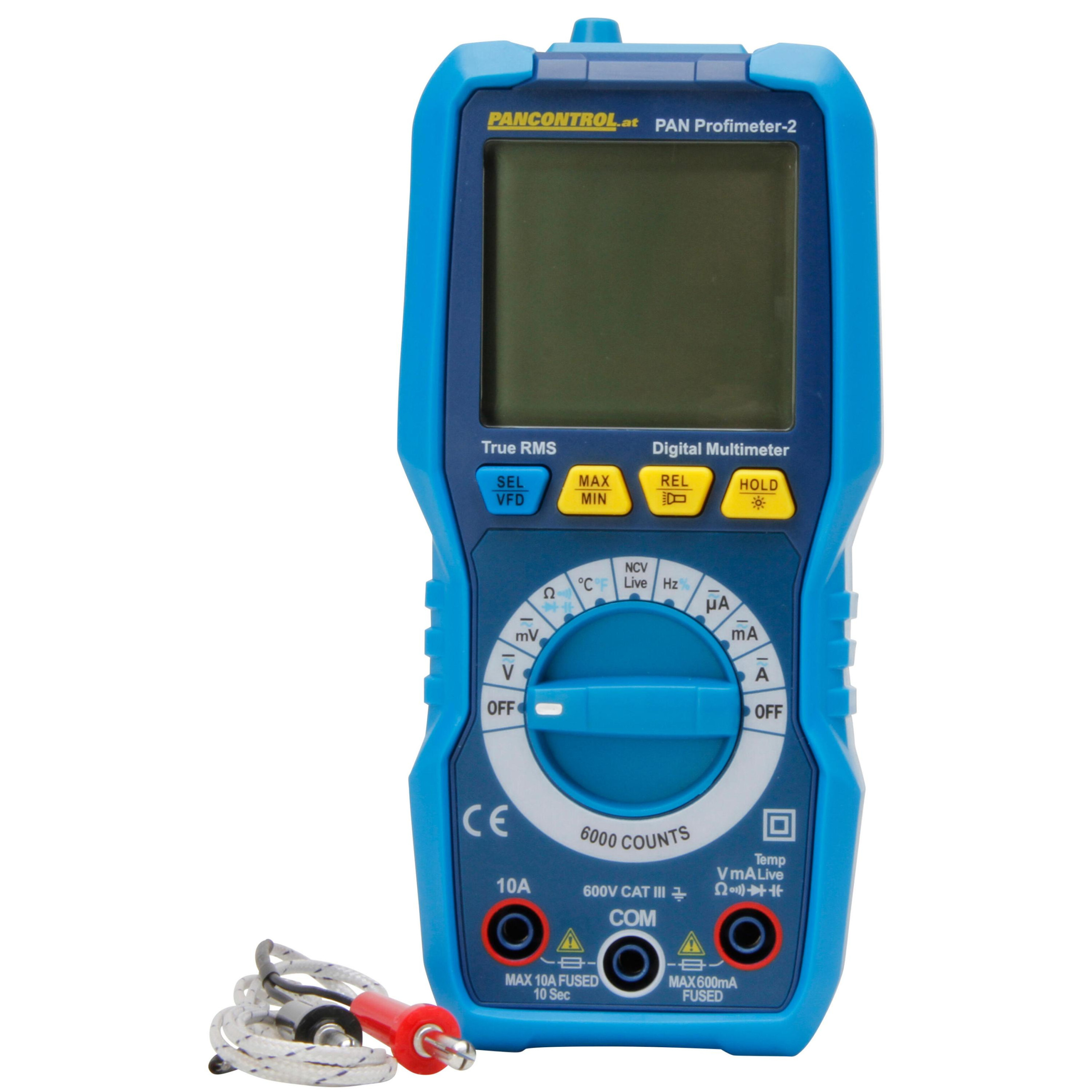

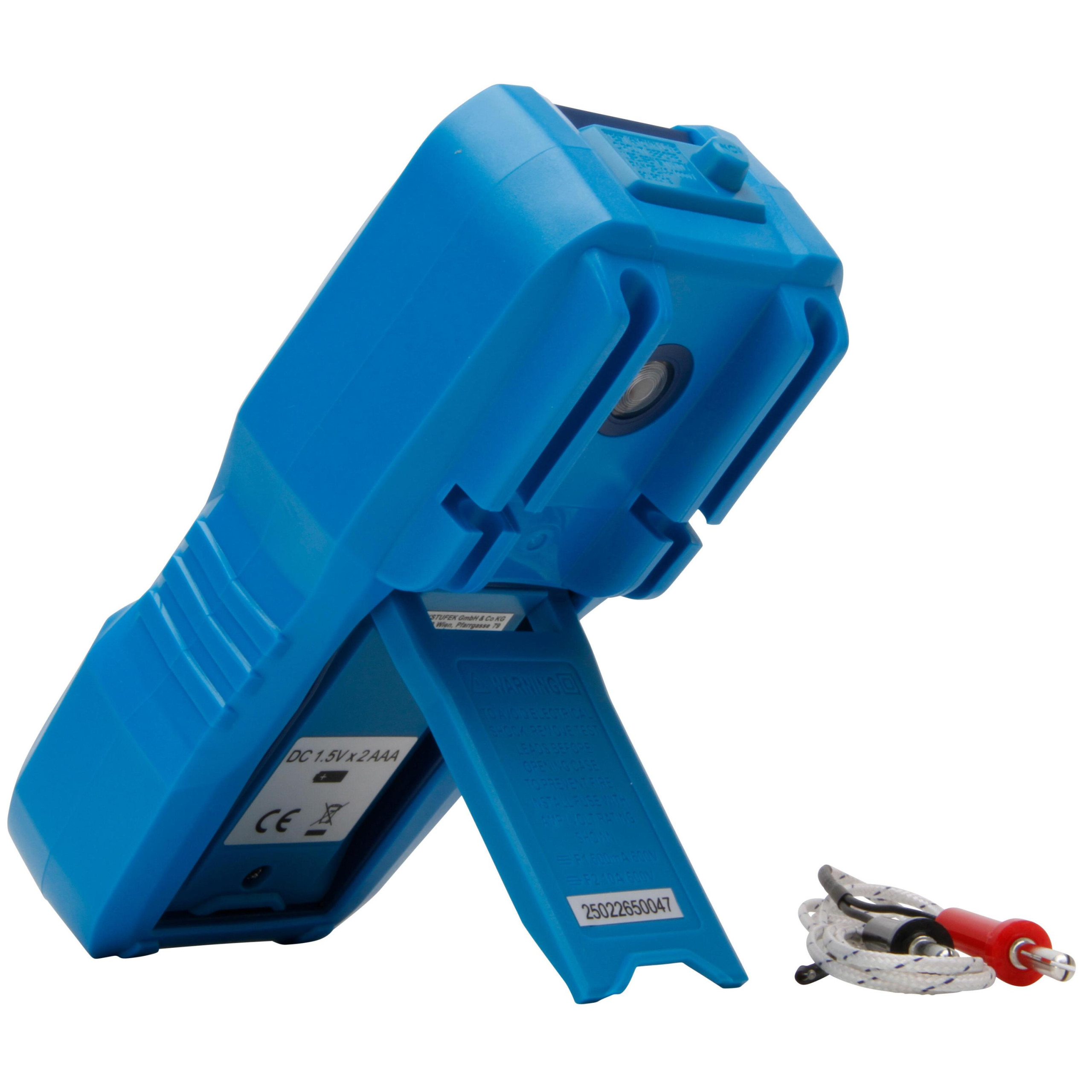

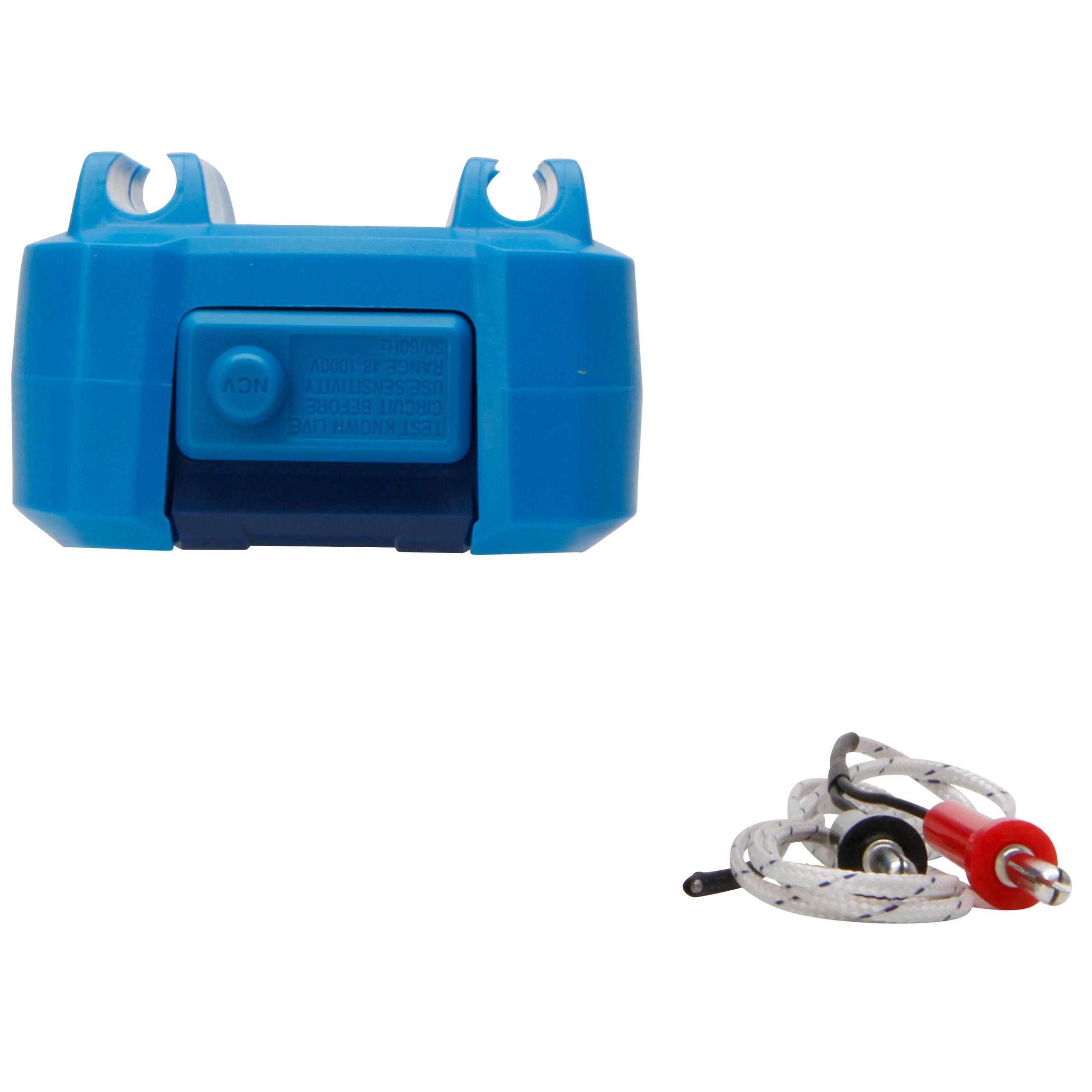

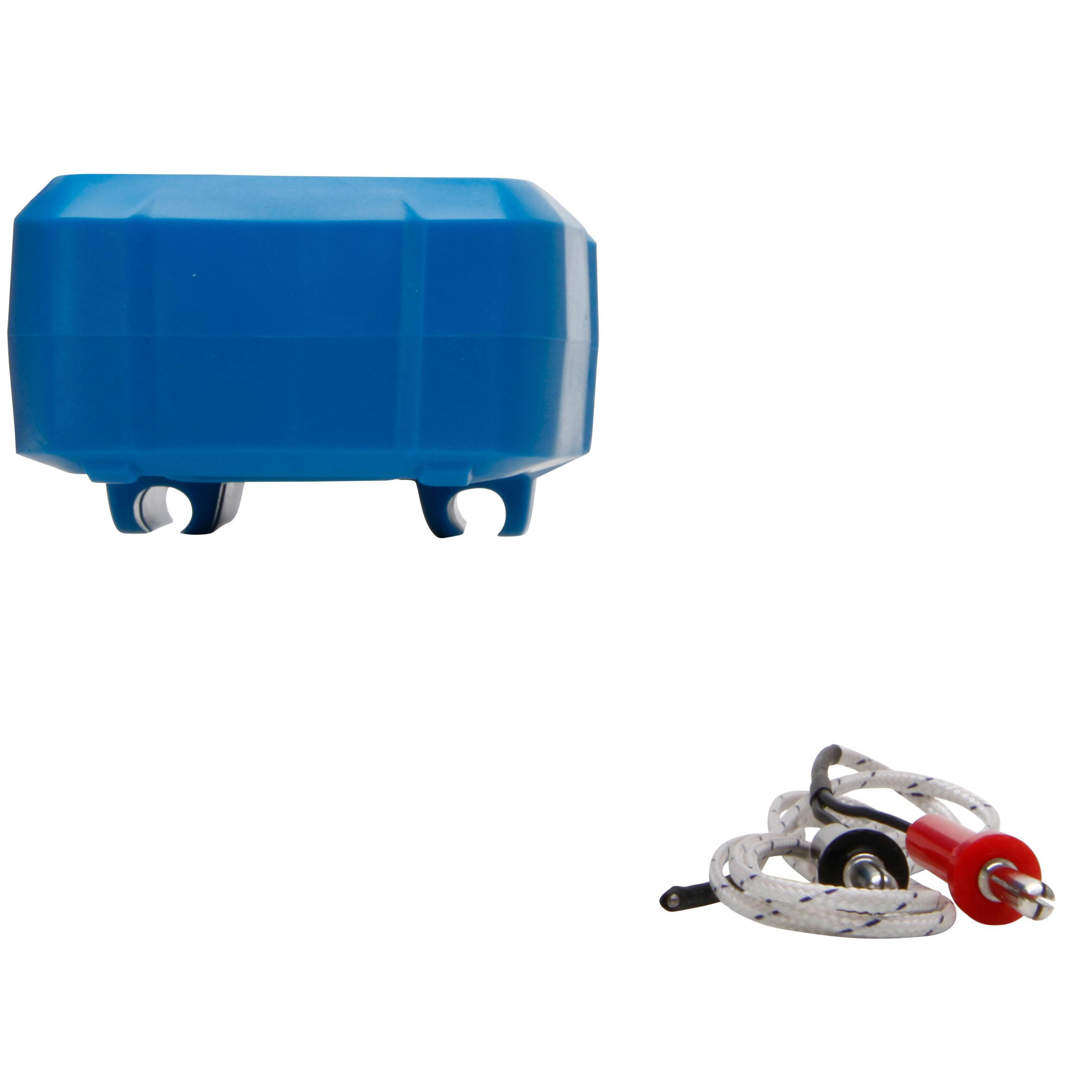

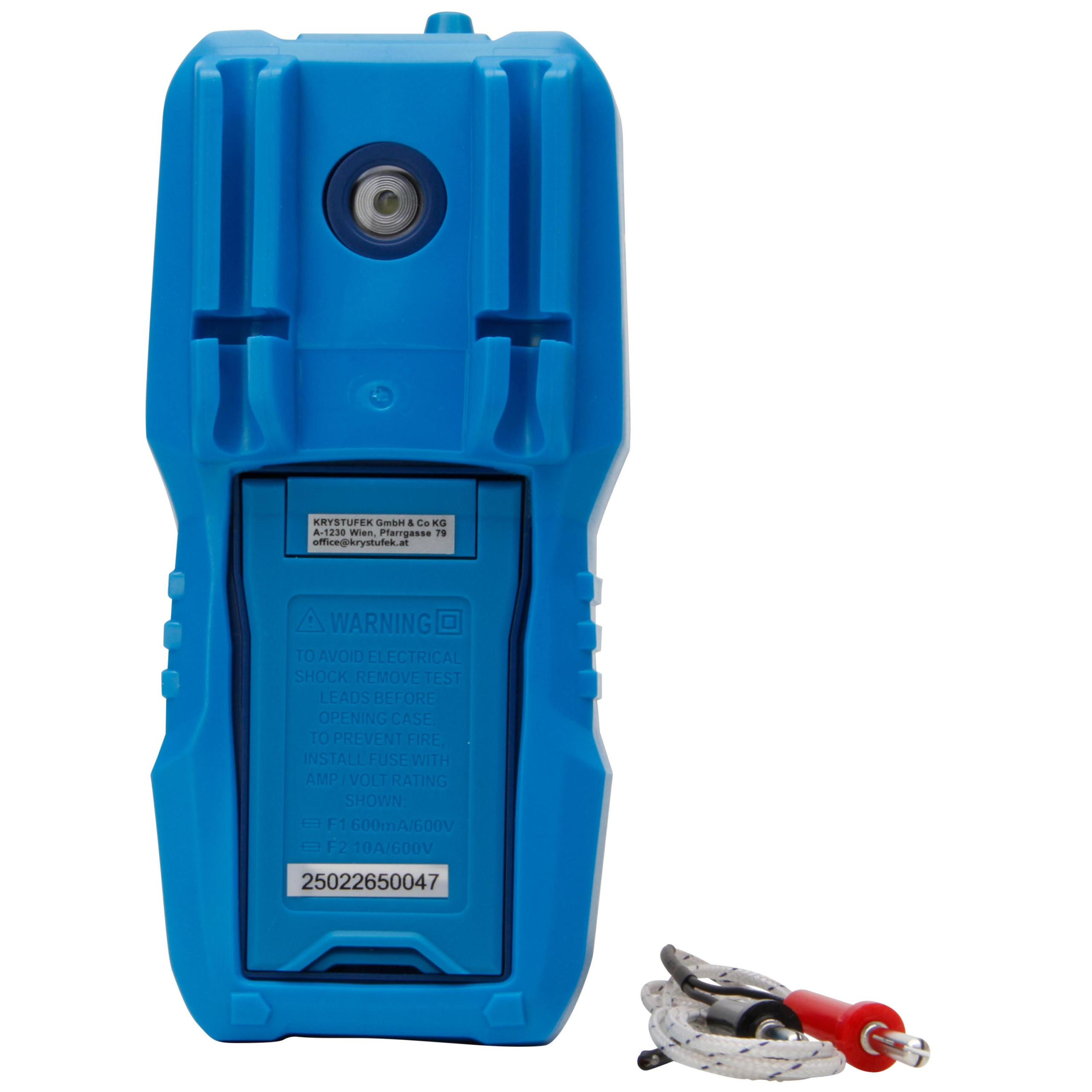

PAN Profimeter-2, digital multimeter CAT III 600V, true RMS, non-contact voltage tester, 1-pole phase testing with acoustic alarm, illuminable digital display 5999 with analog bar, min/max memory, LED flashlight, diode test, data hold, capacitance measurement, frequency measurement, automatic and manual range selection, automatic shutdown, dimensions 166 x 78 x 48 mm, scope of delivery: test cables, operating instructions, type K temperature sensor (measuring range -40°C ~250°C), batteries required: 2x 1.5 V AAA (not included in delivery)
| Characteristic | Value |
|---|---|
| Article Nr | 196402130 |
| PU | 1 |
| EAN | 4008224694827 |
| Analogue bar graph display | yes |
| Analogue bar graph display analogue/logarithmical | no |
| Indication | Analogue/digital |
| Bluetooth interface | no |
| Rotational speed measuring | no |
| Continuity test | yes |
| Resistance test/diode test | yes |
| True RMS measurement | yes |
| Explosion-tested version | no |
| Frequency measurement | yes |
| Inductance measurement | no |
| IR interface | no |
| Isolation resistance measuring range | 0 – 60 MOhm |
| Cable length measurement | no |
| Capacitance measurement | yes |
| Lowest resolution, frequency | 0.001 Hz |
| Lowest resolution, DC voltage | 0.01 mV |
| Lowest resolution, DC current | 0.1 µA |
| Lowest resolution, capacitance | 0.00001 µF |
| Lowest resolution temperature | 1 °C |
| Lowest resolution, AC voltage | 0.01 mV |
| Lowest resolution, AC current | 0.1 µA |
| Lowest resolution, resistance | 0.1 Ohm |
| Power and energy measurement | no |
| With conductivity measurement | no |
| Cable symmetry testing for two wire connections a-b-E | no |
| Max. frequency measuring range | 1 kHz |
| Max. capacitance measuring range | 10 µF |
| Max. voltage measuring circuit category | 600 V |
| Max. voltage measuring range, AC | 600 V |
| Max. voltage measuring range, DC | 600 V |
| Max. current measuring range, AC | 10,00 A |
| Max. current measuring range, DC | 10,00 A |
| Max. temperature measuring range | 1000 °C |
| Max. resistance measuring range | 60 MOhm |
| Max. value storage | yes |
| Multiple display | yes |
| Measuring range selection | Manual/automatic |
| Measuring circuit category | CAT III |
| Measured value memory | no |
| Milliohm measurement with 4 wire technique (Kelvin connection) | no |
| Min. value storage | yes |
| With display backlight | yes |
| With decibel measurement (dB) | no |
| Data hold | yes |
| Nominal test voltage 10 V | no |
| Nominal test voltage 100 V | no |
| Nominal test voltage 1000 V | no |
| Nominal test voltage 250 V | no |
| Nominal test voltage 50 V | no |
| Nominal test voltage 500 V | no |
| Harmonics analysis/power quality | no |
| Relative value measurement | yes |
| Interface | no |
| Degree of protection (IP) | other |
| Automatic circuit breaker | no |
| Peak value memory | no |
| Duty cycle measurements | no |
| Temperature measurement | yes |
| Temperature measurement RTD | no |
| Temperature measurement TC | yes |
| Article width in mm (net dimension) | 78,0 mm |
| Item length in mm (net measurement) | 166,0 mm |
| Item height in mm (net measurement) | 48,0 mm |
| Netzstecker - Typbezeichnung | ohne |
