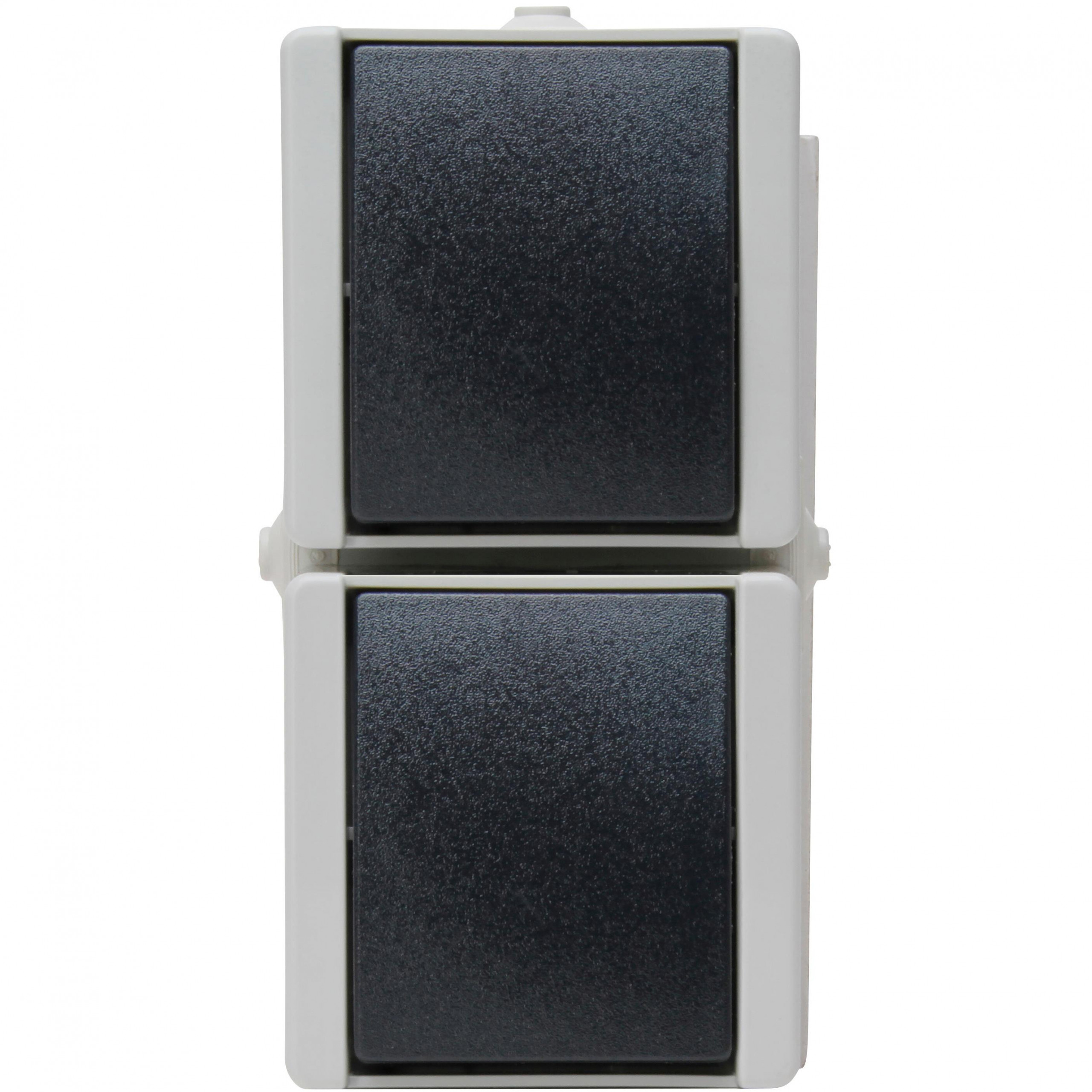

Double earthed socket outlet with hinged lid, vertical, pre wired, colour: grey
Surface Mount, Earthed socket with hinged lid, 2-fold, vertical, without shutter, prewired, 16A, 250V~, proAQA, light-grey/dark-grey
| Characteristic | Value |
|---|---|
| Article Nr | 947555007 |
| PU | 5 |
| EAN | 4008224589420 |
| Lockable | no |
| Connection type | Screwed terminal |
| Anti-bacterial treatment | no |
| Number of active pins (flat) | 2 |
| Number of active pins (round) | 0 |
| Concurrently switching neutral conductor | no |
| Number of loop throughs | 1 |
| Number of modules (module system) | 2 |
| Number of phases | 1 |
| Number of socket outlets switchable | 0 |
| Number of ports USB-A | 0 |
| Number of ports USB-C | 0 |
| Imprint/indication | None |
| Model | Socket outlet CEE 7/3 (type F) |
| Surface finishing | Glossy |
| Eject-mechanism | no |
| Type of fastening | Mounting with screw |
| Rated fault current | 0,00 A |
| Colour | Grey |
| Colour of switch operator | sonstige |
| Fault current protection | no |
| Frequency | 50 – 50 Hz |
| For heavy conditions (according to VDE) | no |
| Suitable for degree of protection | IP44 |
| Width of device | 75,0 mm |
| Height of device | 134,0 mm |
| Depth of device | 58,0 mm |
| Halogen free | no |
| IFTTT support available | no |
| Insulated mounting | no |
| Compatible with Amazon Alexa | no |
| Compatible with Apple HomeKit | no |
| Compatible with Google Assistant | no |
| Max. current rating of USB power supply | 0,00 A |
| Metallic colour | no |
| Min. depth of built-in installation box | 0,0 mm |
| With loop through function | yes |
| With on/off switch | no |
| With built-in bluetooth speaker | nein |
| With enhanced contact protection | no |
| With miniature fuse | no |
| With function lighting | no |
| With hinged lid | yes |
| With orientation lighting | no |
| With signal lamp | no |
| With Wi-Fi signal repeater | nein |
| Mounting method | Aufputz |
| Nominal voltage | 250 V |
| Nominal current | 16,00 A |
| Surface protection | Untreated |
| RAL-number (similar) | 7035 |
| Impact strength | IK00 |
| Protective contact | Earthing clips |
| Label space/information surface | no |
| Transparent | no |
| Rotated central insert | no |
| Material | Plastic |
| Material quality | Thermoplastic |
| Over voltage protection | no |
| Netzstecker - Typbezeichnung | ohne |
