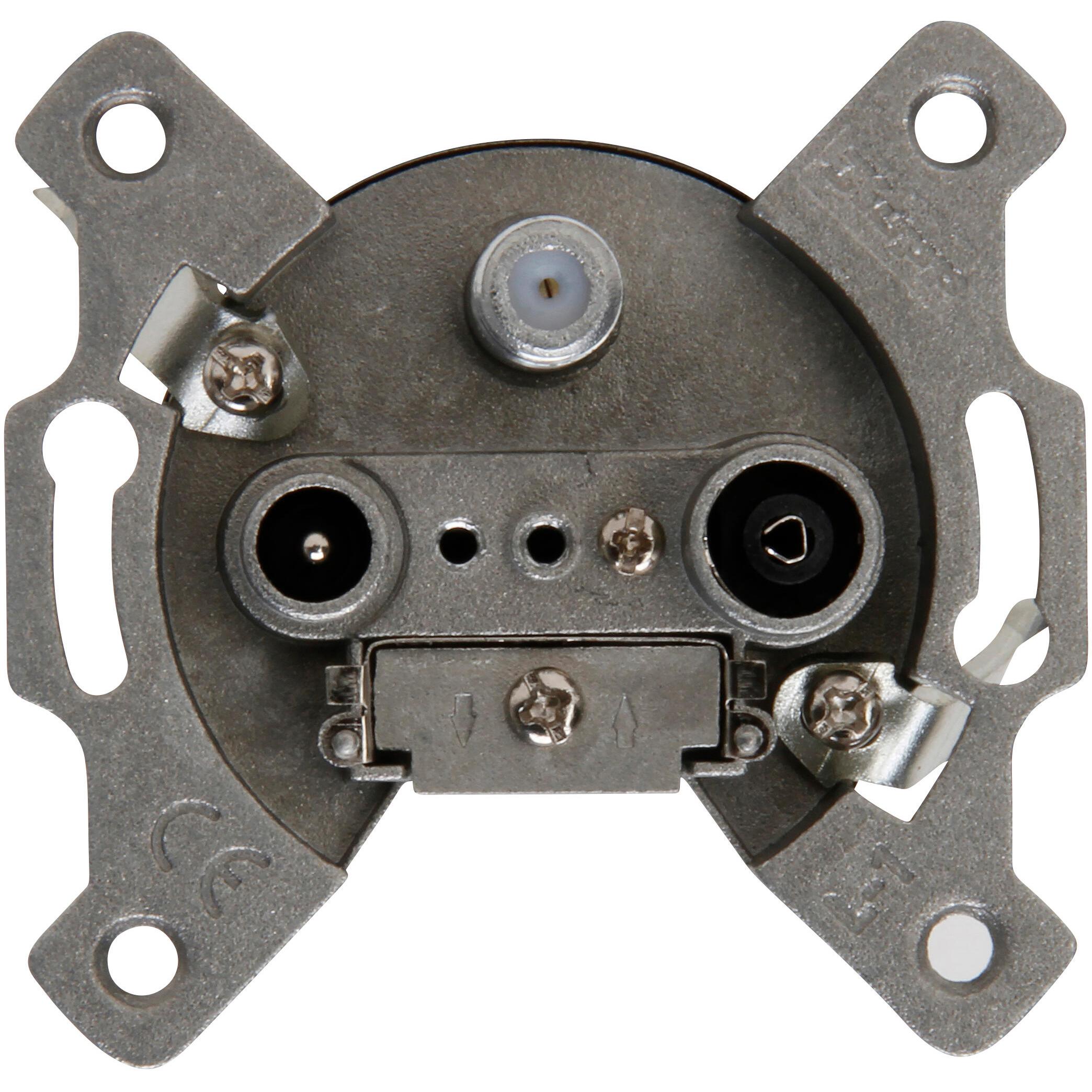

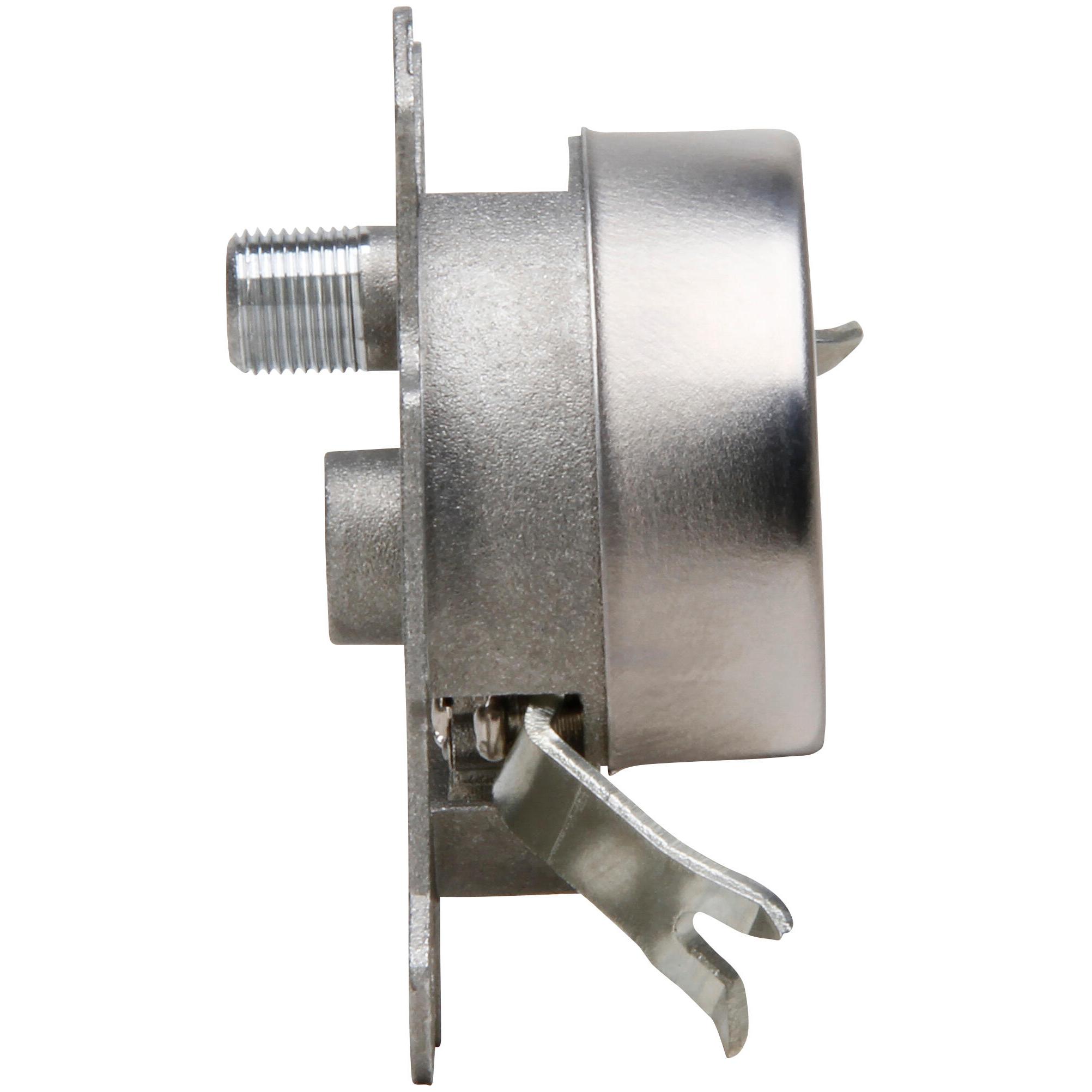

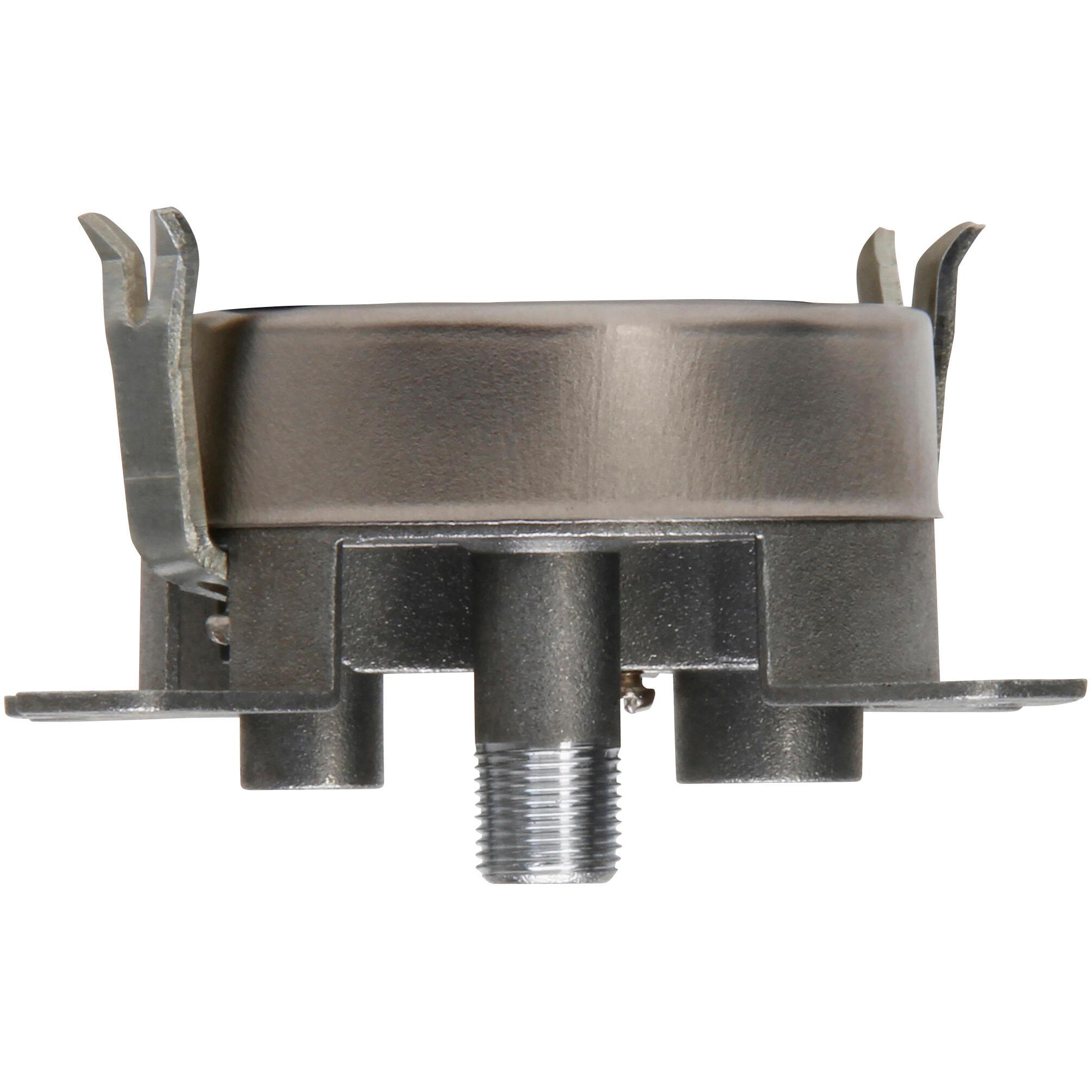

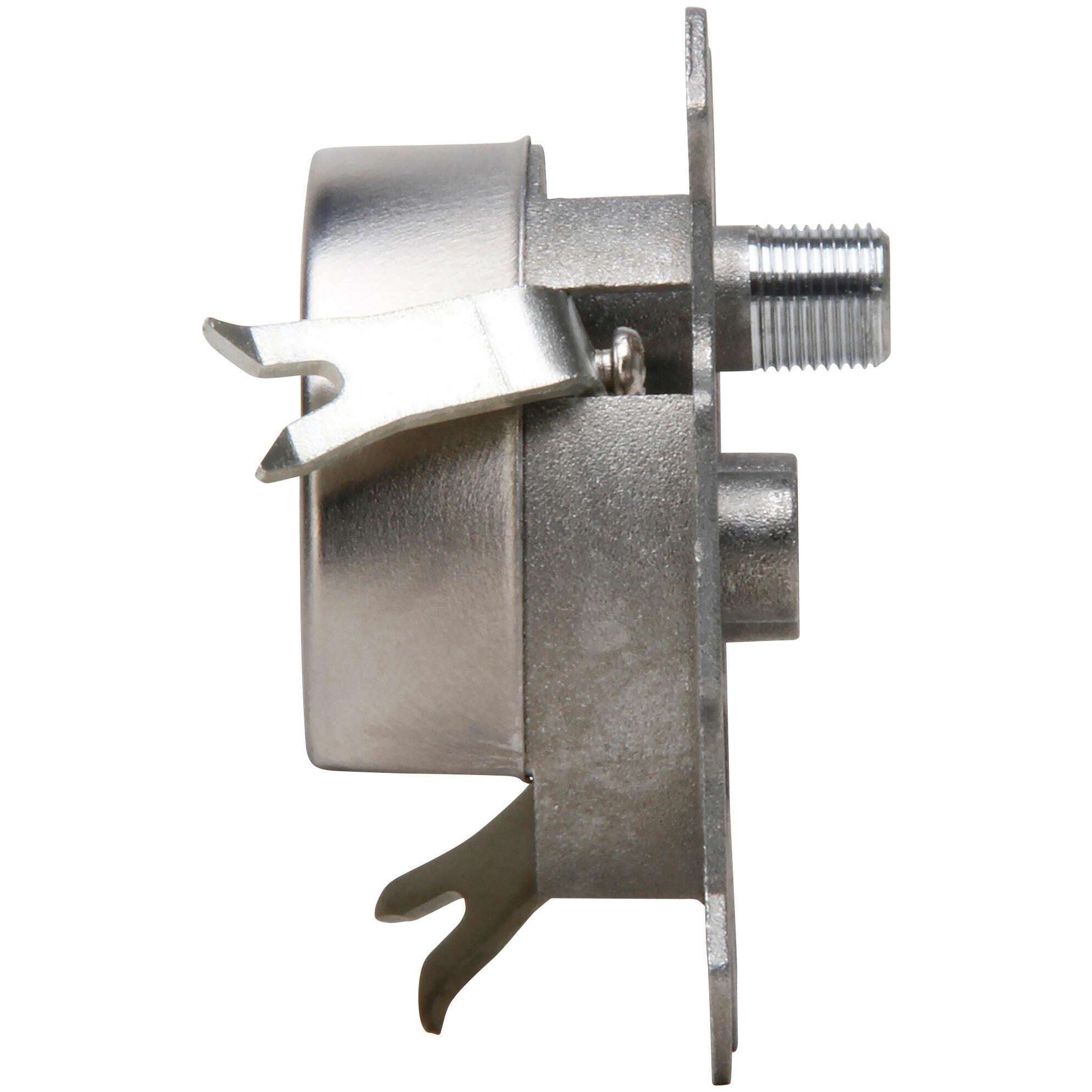

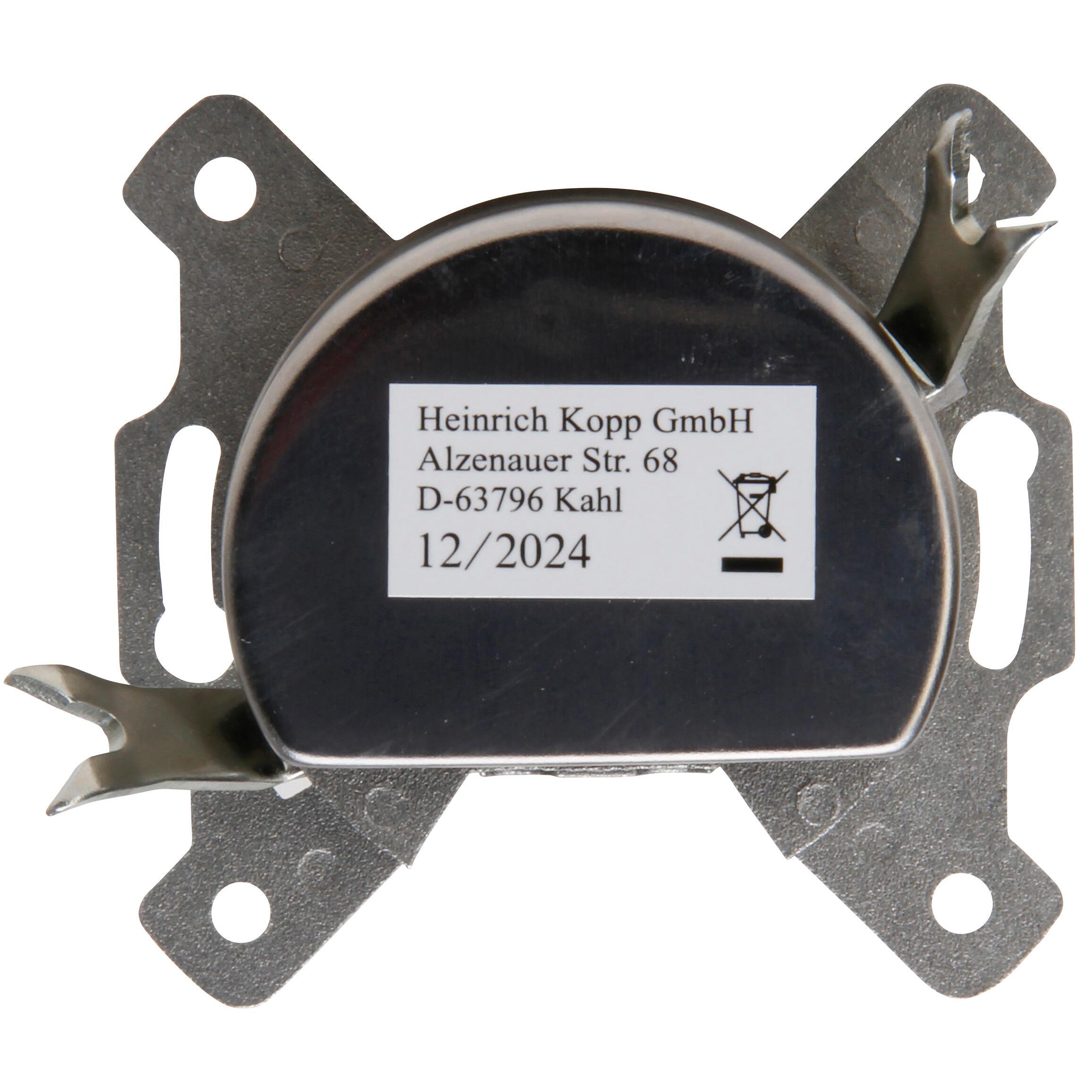

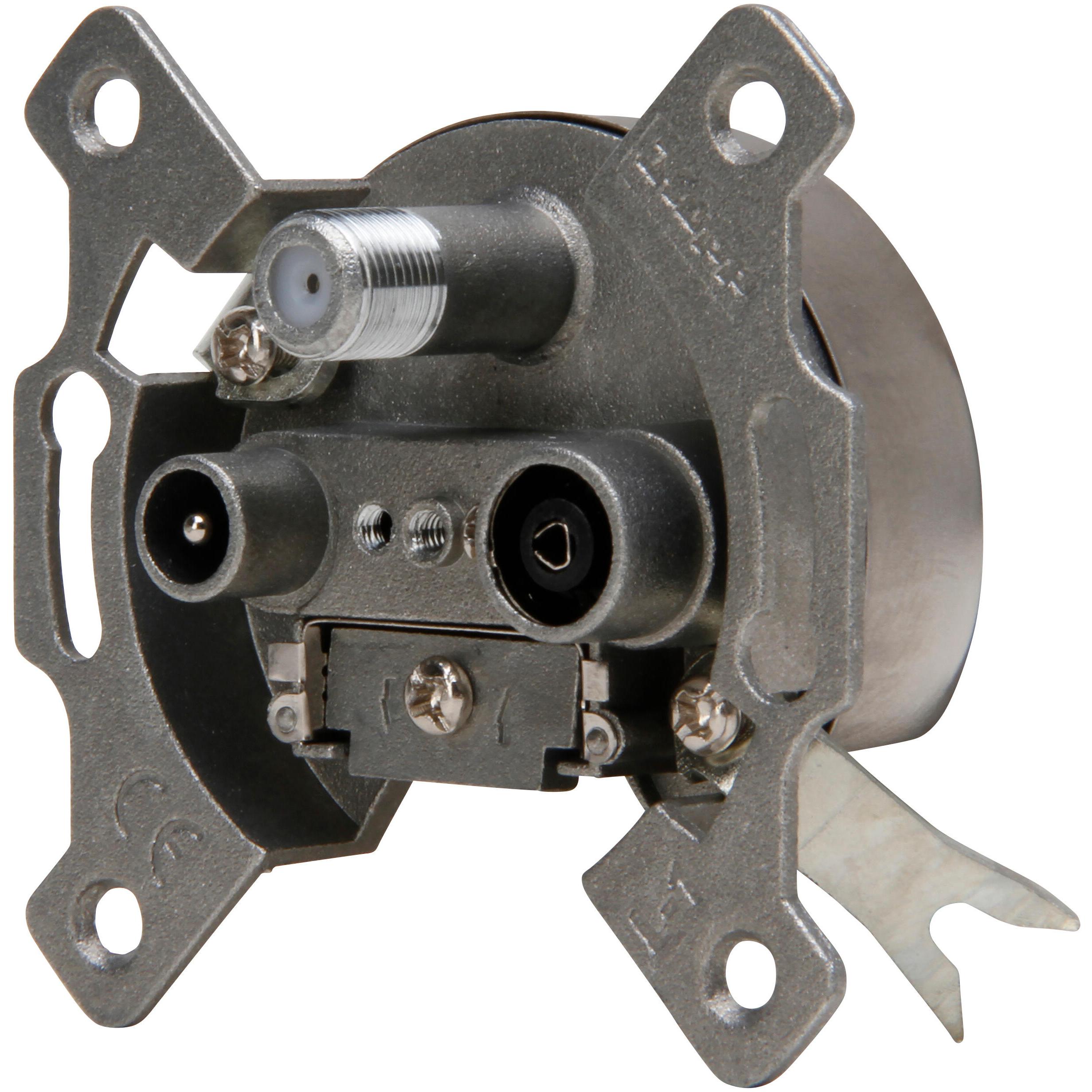

Antenna socket TV/RF/SAT, digital-compatible
Antenna socket base TV/RF/SAT, digitally compatible
| Characteristic | Value |
|---|---|
| Article Nr | 916400002 |
| PU | 5 |
| EAN | 9008229164009 |
| Anti-bacterial treatment | no |
| Surface finishing | Matt |
| Outlet direction | Straight |
| Type of fastening | Mounting with claw and screw |
| Imprintable label | Without indication field |
| Shielded buses | no |
| Colour | Colourless |
| Suitable for number of connectors | 3 |
| Suitable for degree of protection | IP20 |
| Shielded housing | yes |
| Halogen free | yes |
| Contact type | Female |
| Luster terminal | no |
| Min. depth of built-in installation box | 30,0 mm |
| With imprint | no |
| With lighting | no |
| With buses/couplings | yes |
| With hinged lid | no |
| With dust cover | no |
| With strain relief | no |
| Mounting method | Flush mounted |
| Surface protection | not applicable |
| Impact strength | not applicable |
| Support ring | yes |
| Transparent | no |
| Utilization | Coaxial antenna socket outlet |
| Material | Zinc die-cast |
| Material quality | Zinc die-cast |
| Assembly arrangement | Basic element |
| Netzstecker - Typbezeichnung | ohne |
