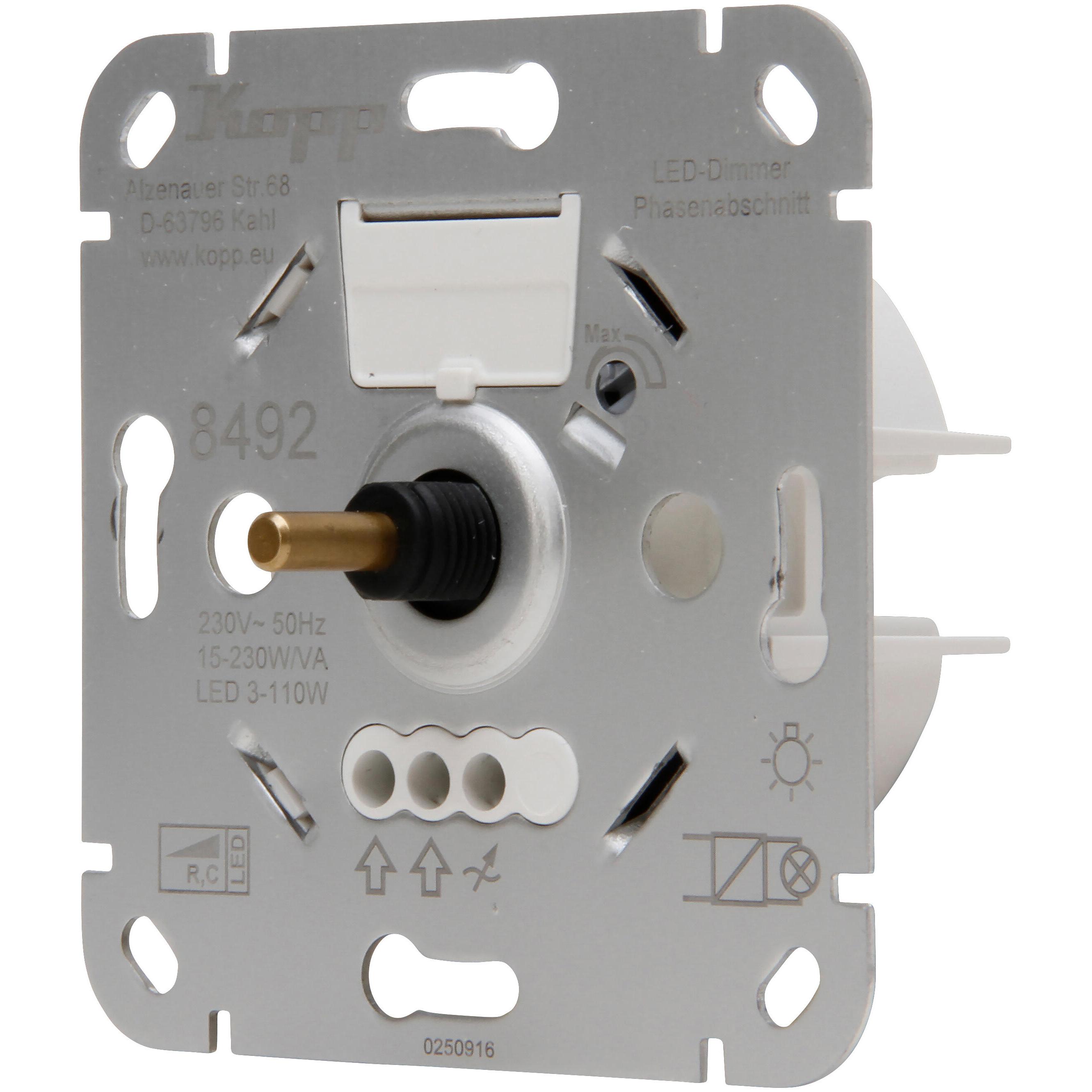

LED rotating dimmer with push-change switch RC 230W

LED rotating dimmer with push-change switch RC 230W, for incandescent, HV, and LV halogen lamps with electronic transformers as well as dimmable LED lamps and dimmable LED drivers, adjustable maximum dimming value, 4mm shaft, with mounting nut and 6mm shaft adapter, dimming method: Phase cut (RC), 230VAC, 50Hz, 15-230W/VA, LED 3-110W

Characteristic Value
Article Nr

849200007

PU

1

EAN

4008224694889

Core cross section

1,0 – 2,5 mm²

Connection type

Screwed terminal

Number of units

1

Number of modules (module system)

1

App control via Bluetooth

no

Surface finishing

Glossy

Method of operation

Turn button

Type of fastening

Screw mounting

Dimming phase cut-off

yes

Dimming phase cut-on

no

Colour

aluminium

Frequency

50 – 50 Hz

Suitable for degree of protection

IP20

Width of device

71,0 mm

Height of device

71,0 mm

Depth of device

25,6 mm

Halogen free

yes

IFTTT support available

no

Compatible with Amazon Alexa

no

Compatible with Apple HomeKit

no

Compatible with Google Assistant

no

Type of load

Capacitive load

Light value memory

no

Max. switching power LED

110 W

Min. brightness controllable

nein

Min. depth of built-in installation box

32,0 mm

Mounting method

Flush mounted

Substation input

no

Nominal power inductive load

0 – 0 VA

Nominal power capacitive load

3 – 110 VA

Nominal power resistive load

15 – 230 W

Nominal voltage

230 – 230 V

Surface protection

Untreated

RAL-number (similar)

9022

Impact strength

IK00

Serial dimmer

no

Transparent

no

Applicable with movement sensor

no

Applicable with transmission button

no

Applicable with infrared button

no

Applicable with presence indicator

no

Applicable with button

no

Applicable with time switch/timer

no

Material

Metal

Material quality

Aluminium

Assembly arrangement

Basic element

Article width in mm (net dimension)

71,0 mm

Item length in mm (net measurement)

71,0 mm

Item height in mm (net measurement)

46,0 mm

Netzstecker - Typbezeichnung

ohne
