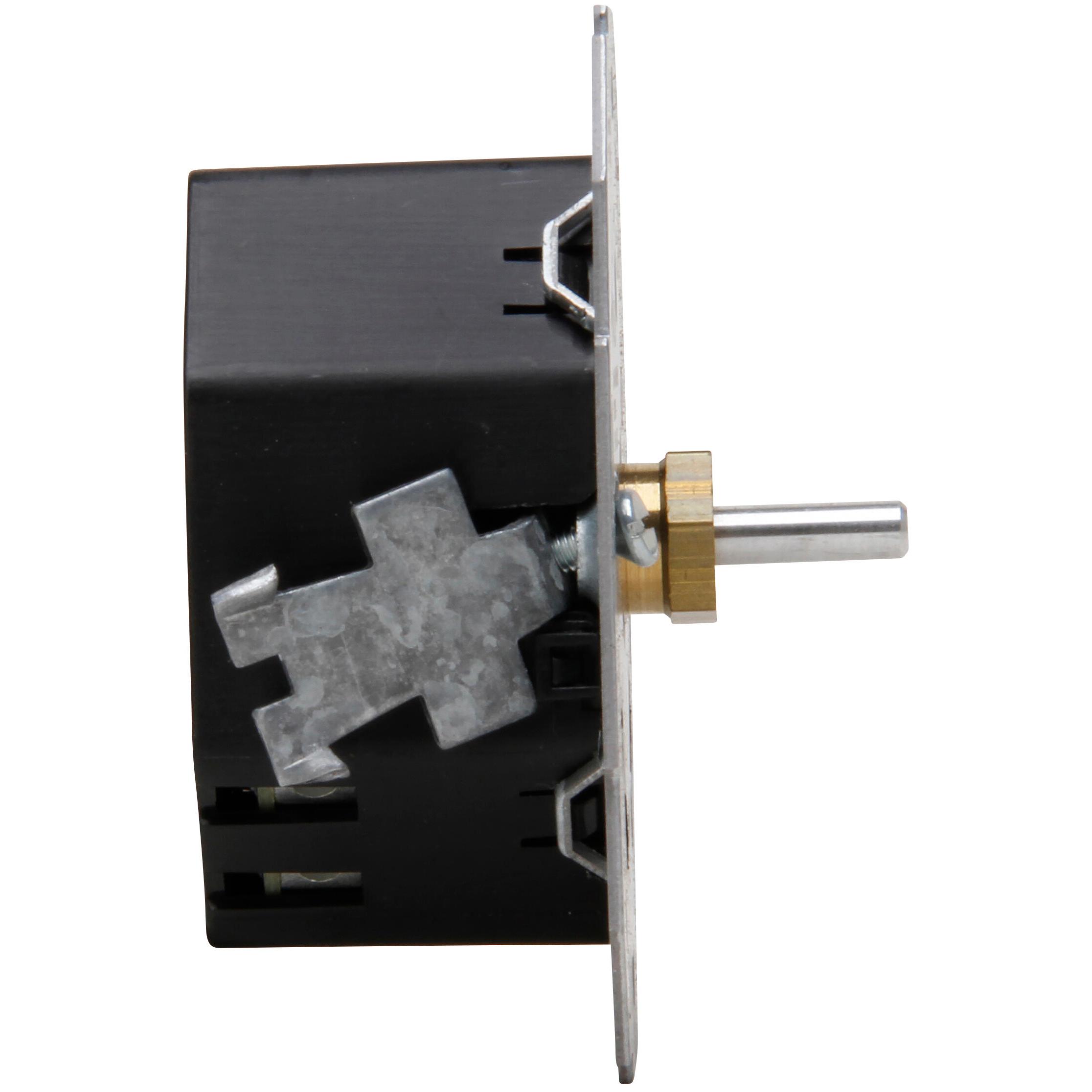

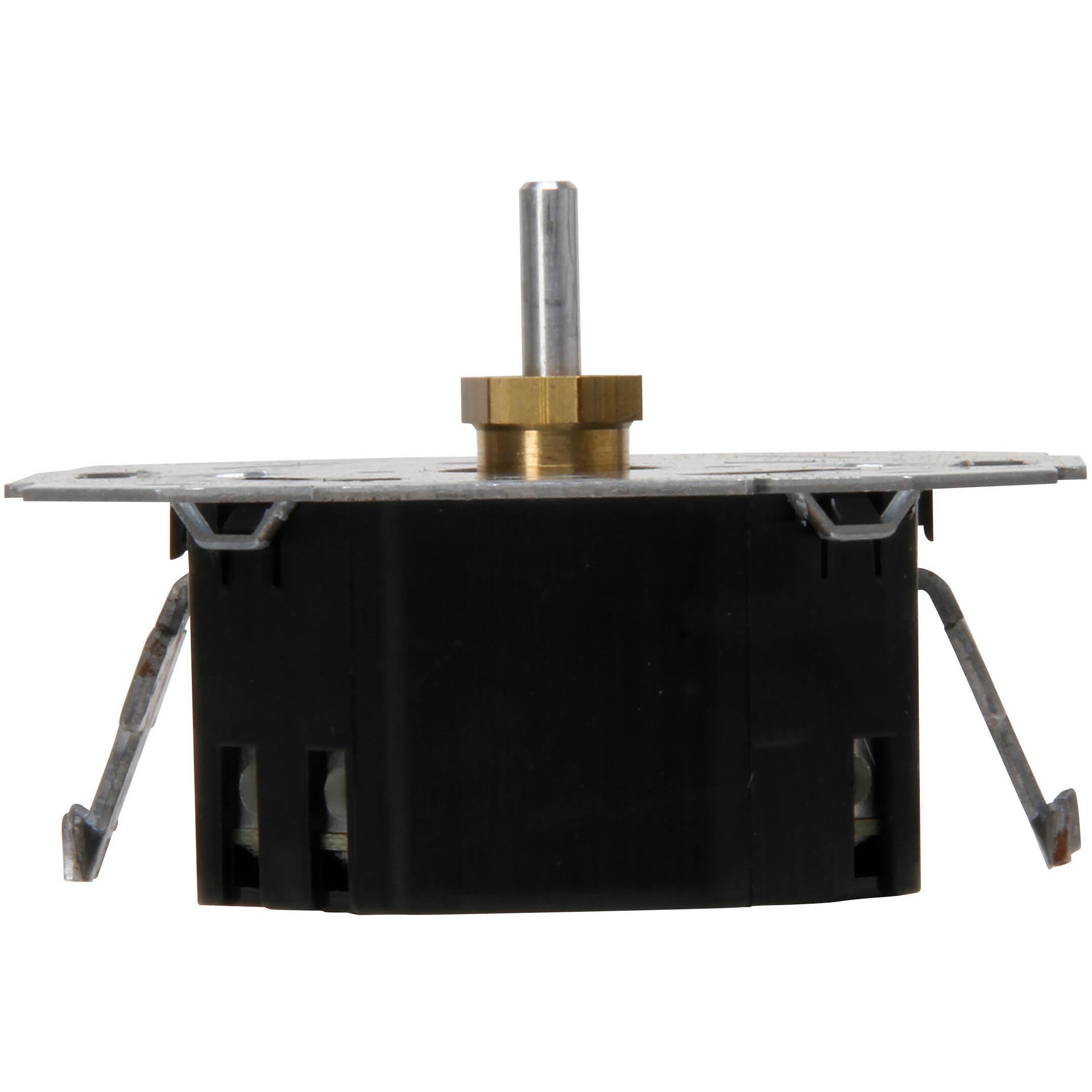

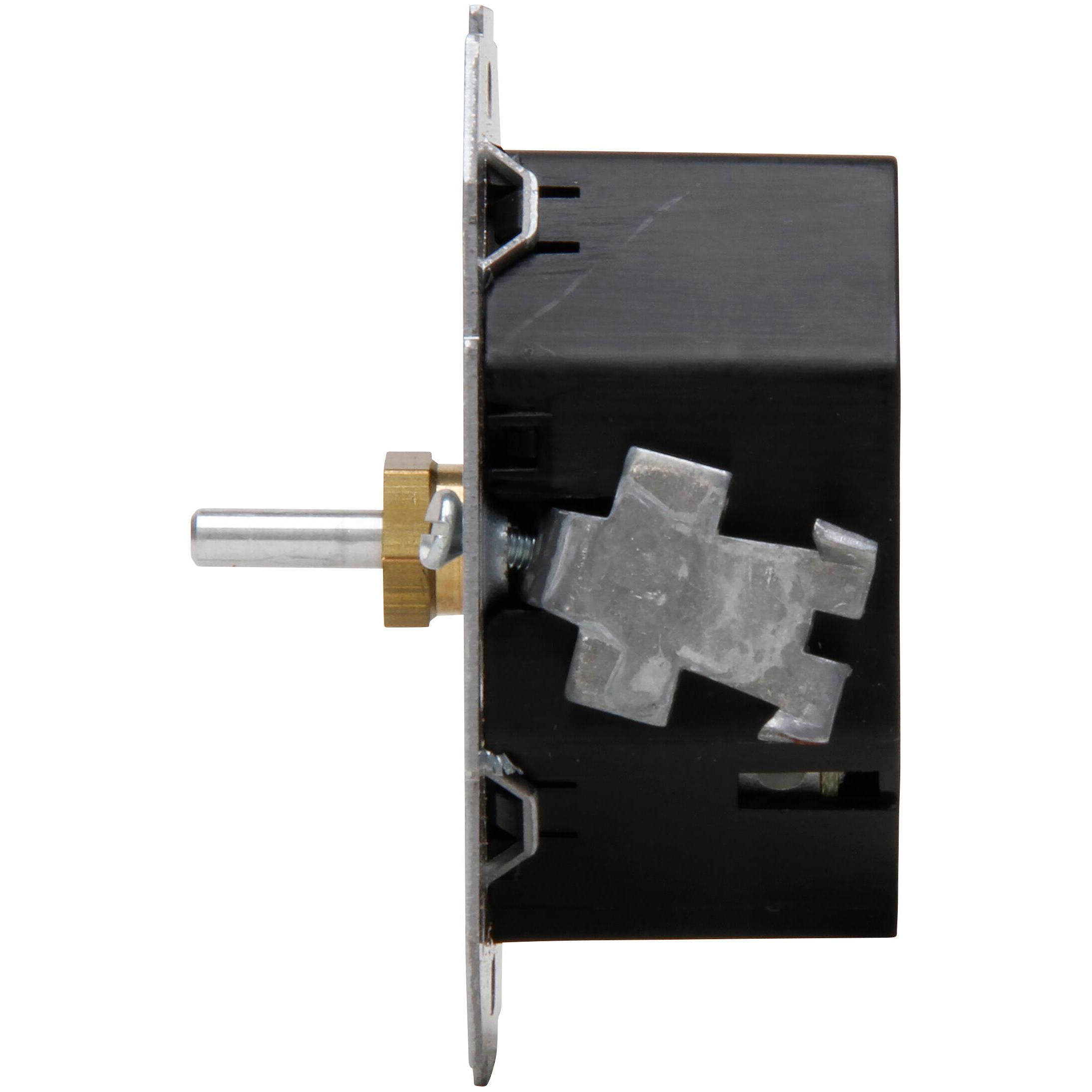

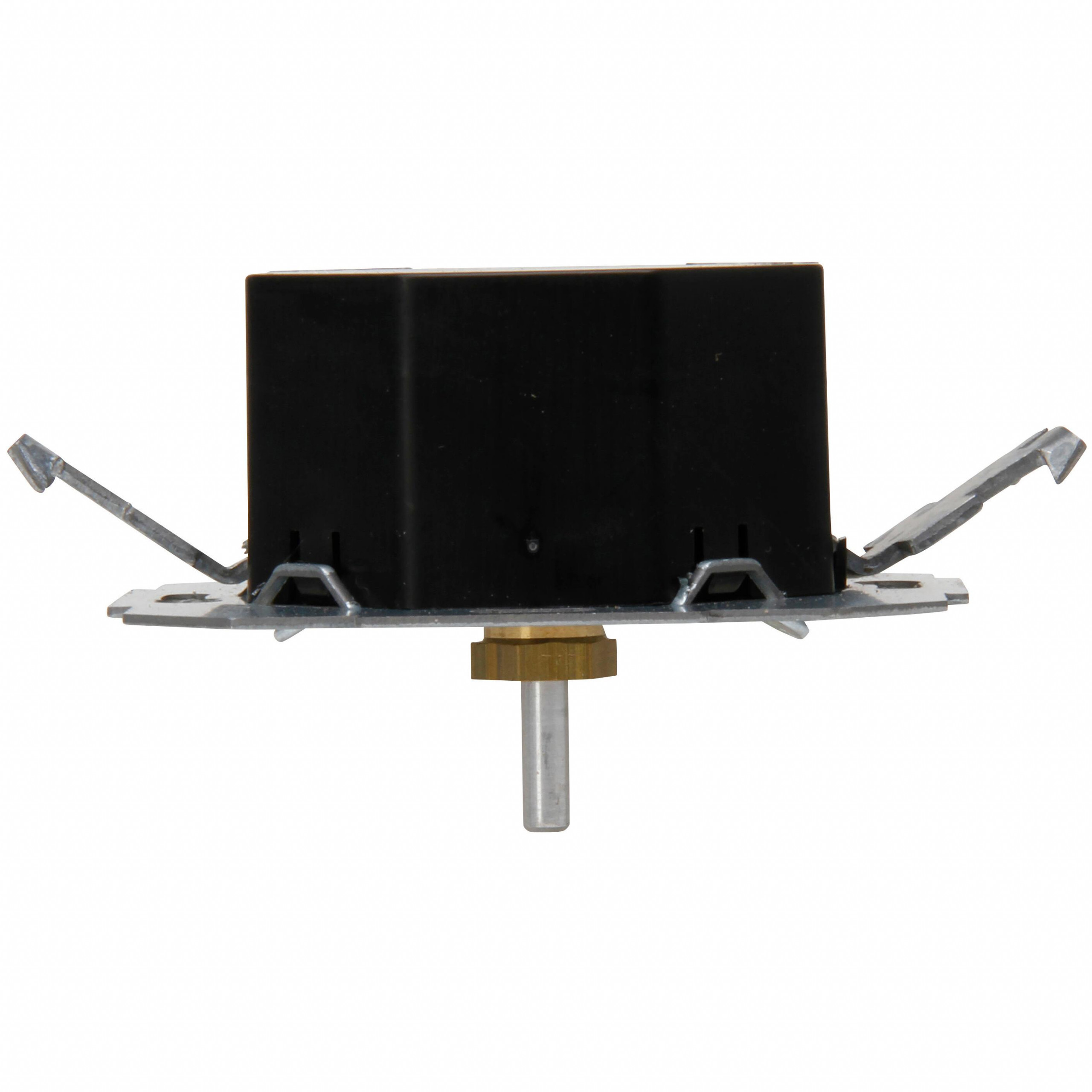

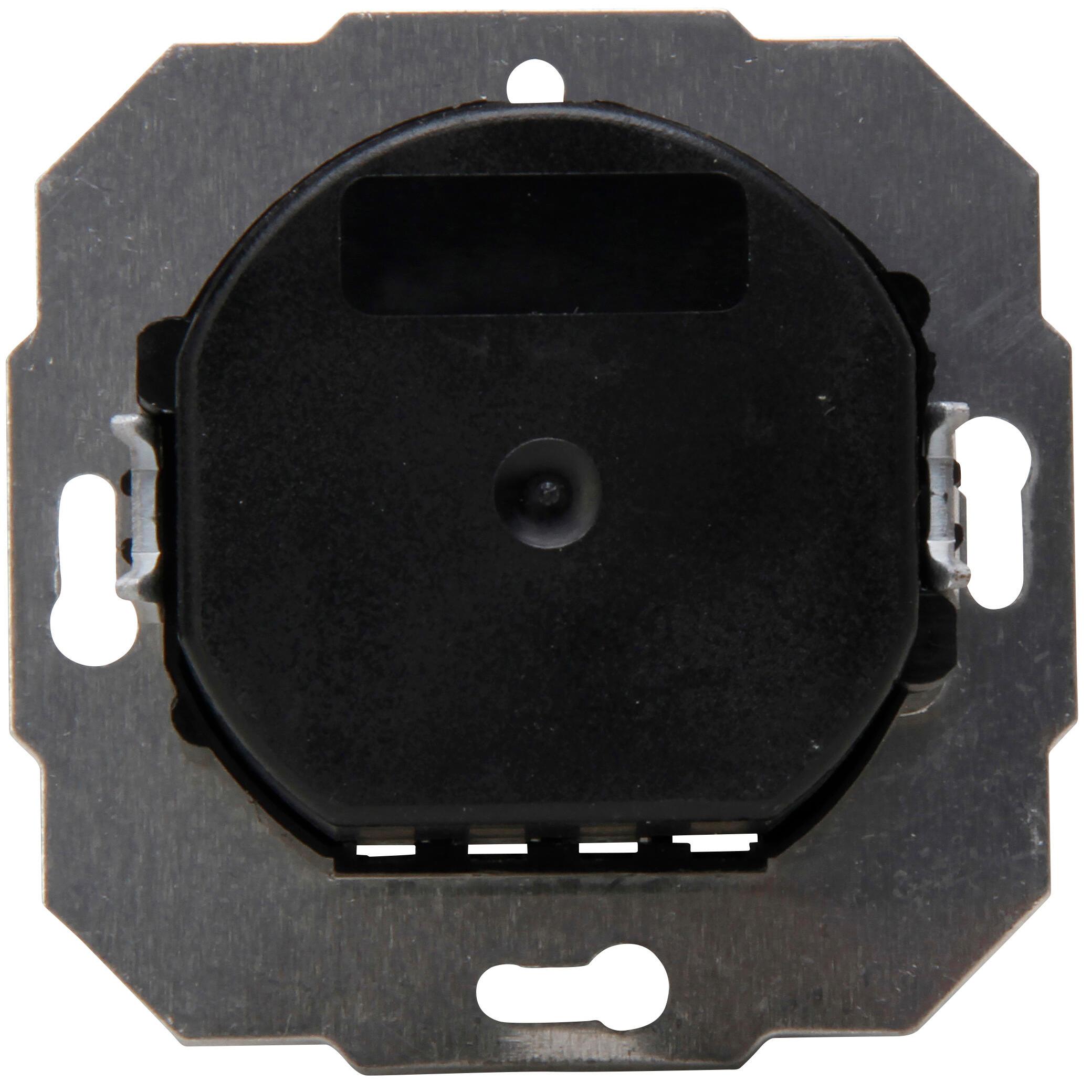

Push-changeover universal dimmer, LED 3-170W
Changeover switch – LED dimmer – for incandescent and 230V halogen lamps, LED 3-170W, also suitable for changeover switching with switch or push-button, max. 300W/VA
| Characteristic | Value |
|---|---|
| Article Nr | 845000186 |
| PU | 2 |
| EAN | 4008224644723 |
| Core cross section | 1,5 – 2,5 mm² |
| Number of modules (module system) | 1 |
| Surface finishing | Glossy |
| Type of fastening | Mounting with claw and screw |
| Dimming phase cut-off | yes |
| Dimming phase cut-on | yes |
| Colour | aluminium |
| Frequency | 50 – 50 Hz |
| Suitable for degree of protection | IP20 |
| Width of device | 71,0 mm |
| Height of device | 71,0 mm |
| Depth of device | 47,0 mm |
| Halogen free | yes |
| IFTTT support available | no |
| Compatible with Amazon Alexa | no |
| Compatible with Apple HomeKit | no |
| Compatible with Google Assistant | no |
| Type of load | Universal |
| Light value memory | yes |
| Max. switching power LED | 170 W |
| Min. brightness controllable | ja |
| Min. depth of built-in installation box | 32,0 mm |
| Mounting method | Flush mounted |
| Substation input | yes |
| Nominal power inductive load | 0 – 300 VA |
| Nominal power capacitive load | 0 – 300 VA |
| Nominal power resistive load | 0 – 300 W |
| Nominal voltage | 230 – 230 V |
| Surface protection | Untreated |
| RAL-number (similar) | 9006 |
| Impact strength | IK00 |
| Serial dimmer | no |
| Control voltage | 230 – 230 V |
| Transparent | no |
| Applicable with movement sensor | no |
| Applicable with transmission button | no |
| Applicable with infrared button | no |
| Applicable with presence indicator | no |
| Applicable with button | yes |
| Applicable with time switch/timer | no |
| Material | Steel |
| Material quality | Sheet steel |
| Assembly arrangement | Basic element |
| Netzstecker - Typbezeichnung | ohne |
