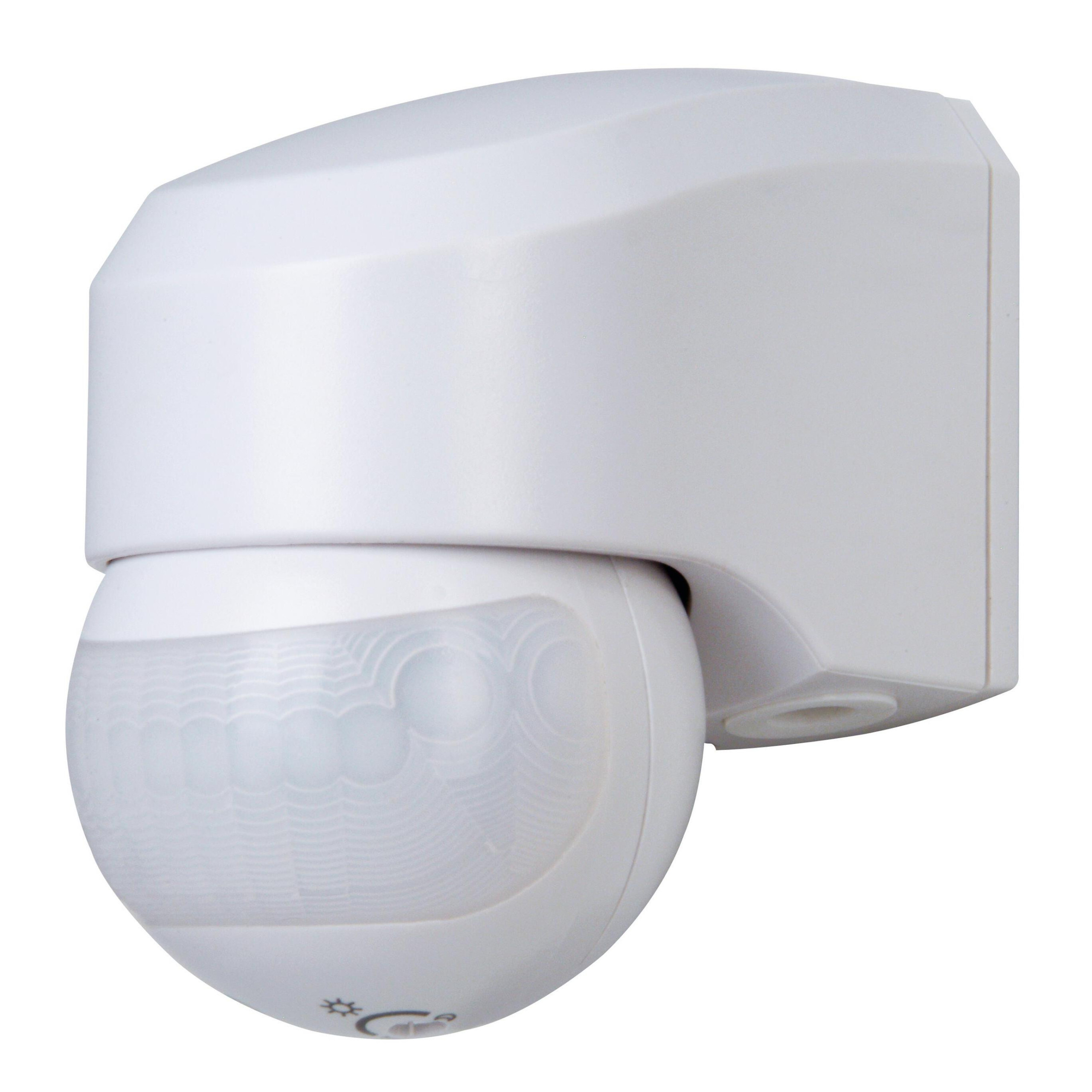

INFRAcontrol motion detector R240° AP IP55, 3-wire device, detection: Infrared, detection angle 240°, detection range up to 16m, mounting: surface mount incl. corner bracket mounting (corner bracket enclosed), recommended mounting height: 2.5m, adjustment options sensor head / lens system: downwards -40°, upwards +90°, sideways -90° or sideways +90°, 230 VAC, 50 Hz, incandescent lamps max. 2,300W, low-voltage halogen lamps (AC) max. 1,000W, high voltage halogen lamps (LV) max. 1,000W, fluorescent lamps (compensated) max. 900VA / 100 μF, energy saving lamps max. 600VA, LED lamps max. 400W/VA, connection heating, air conditioning, ventilation (HVAC): max. 10A, cos φ = 1, ≤ 250VAC; max. 5A, ≤ 30VDC; max. 3A; cos φ = 0.4; ≤ 250VAC, lag time: 5s-30min, response brightness adjustable: 5-500Lux, infinity and “vacation mode”, protection class IP55, color: black
| Characteristic | Value |
|---|---|
| Article Nr | 824615019 |
| PU | 1 |
| EAN | 4008224629768 |
| Dim function with dimmer basic element | no |
| With alarm function | no |
| Connection type | Screwed terminal |
| Response value sensitivity adjustable | ja |
| Response value luminosity | 5 – 500 lx |
| Response value luminosity adjustable | yes |
| Anti-bacterial treatment | no |
| Model | Movement sensor |
| Surface finishing | Matt |
| Switch-off delay | 0 s |
| Switching-on delay | 0 s |
| Diameter detection range on floor | 32 m |
| Detection angle horizontal | 0 – 240 ° |
| Colour | Black |
| Remote operation | no |
| Suitable for C-load | yes |
| Suitable for ceiling mounting | nein |
| Suitable for wireless transmission | no |
| Suitable for wall mounting | yes |
| Halogen free | yes |
| HVAC-control | yes |
| IFTTT support available | no |
| Compatible with Amazon Alexa | no |
| Compatible with Apple HomeKit | no |
| Compatible with Google Assistant | no |
| Constant light control | no |
| Max. duty cycle | 30 min |
| Max. starting current | 16,00 A |
| Max. presence range | 0 m² |
| Max. transmission range frontally | 7,000 m |
| Max. transmission range sideways | 16,000 m |
| Max. switching power | 2300 W |
| Max. switching power LED | 400 W |
| Min. switch-on time | 5 s |
| With acoustic sensor | nein |
| With connection cable | no |
| With DALI interface | no |
| With remote control | no |
| With signal unit | no |
| Mounting method | Surface mounted |
| Substation input | no |
| Nominal voltage | 230 – 230 V |
| Surface protection | Untreated |
| Optimum mounting height | 2,5 m |
| RAL-number (similar) | 9010 |
| Scan angle | 240 ° |
| Impact strength | IK00 |
| Degree of protection (IP) | IP55 |
| Pivoting range sensor, horizontal | -90 – 90 ° |
| Pivoting range sensor, vertical | -40 – 90 ° |
| Sensor type | Passive infrared |
| Voltage type | AC |
| Control current | 0,00 mA |
| Teach-function for response value luminosity | yes |
| Temperature | -20 – 50 °C |
| Animal zone | no |
| Transparent | no |
| Staircase monitoring | no |
| Creep-under protection | yes |
| Networkable | no |
| Material | Plastic |
| Material quality | Thermoplastic |
| Forced switch off | no |
| Forced switch on | no |
| Bridging switch | no |
| Article width in mm (net dimension) | 90,0 mm |
| Item length in mm (net measurement) | 166,0 mm |
| Item height in mm (net measurement) | 111,0 mm |
| Netzstecker - Typbezeichnung | ohne |
