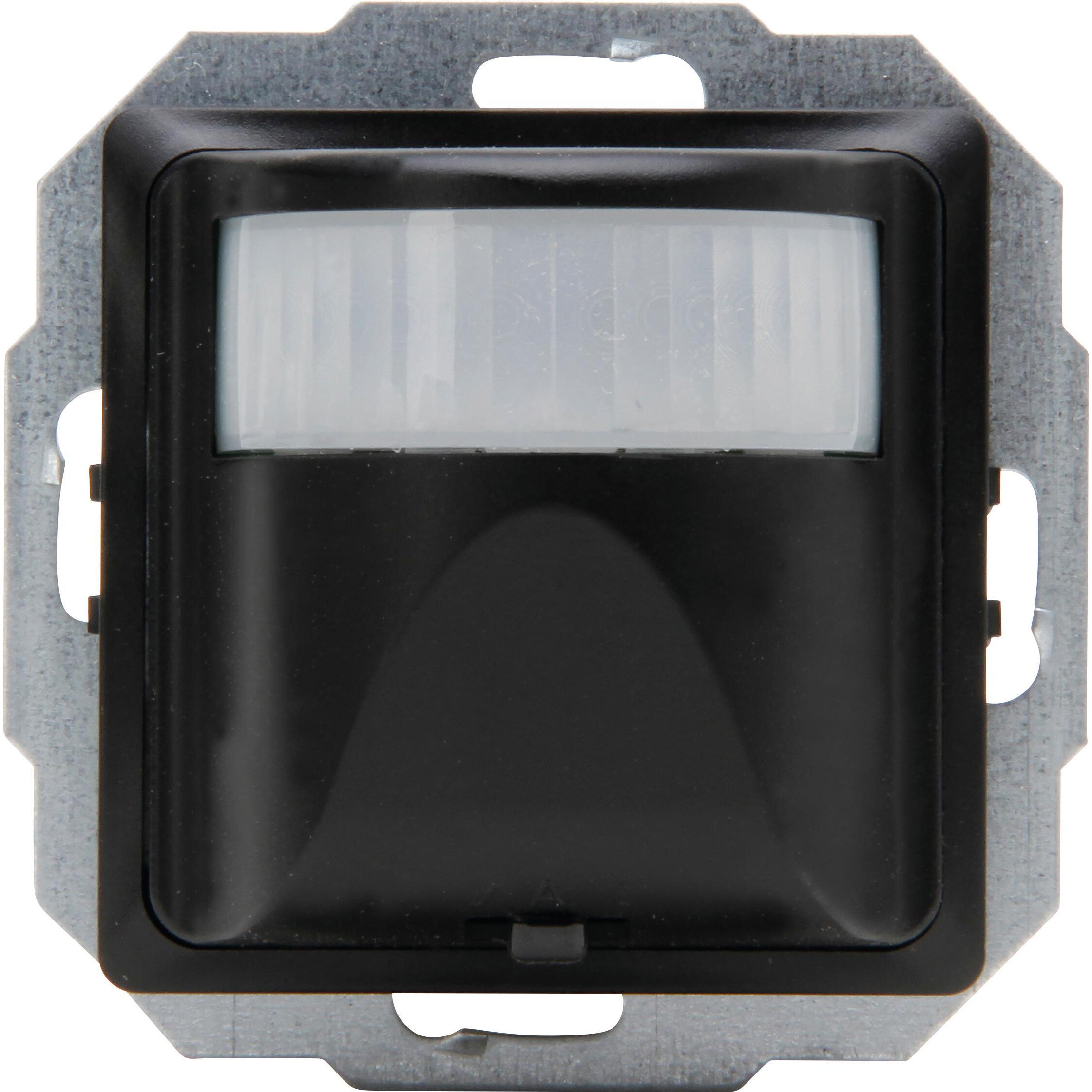

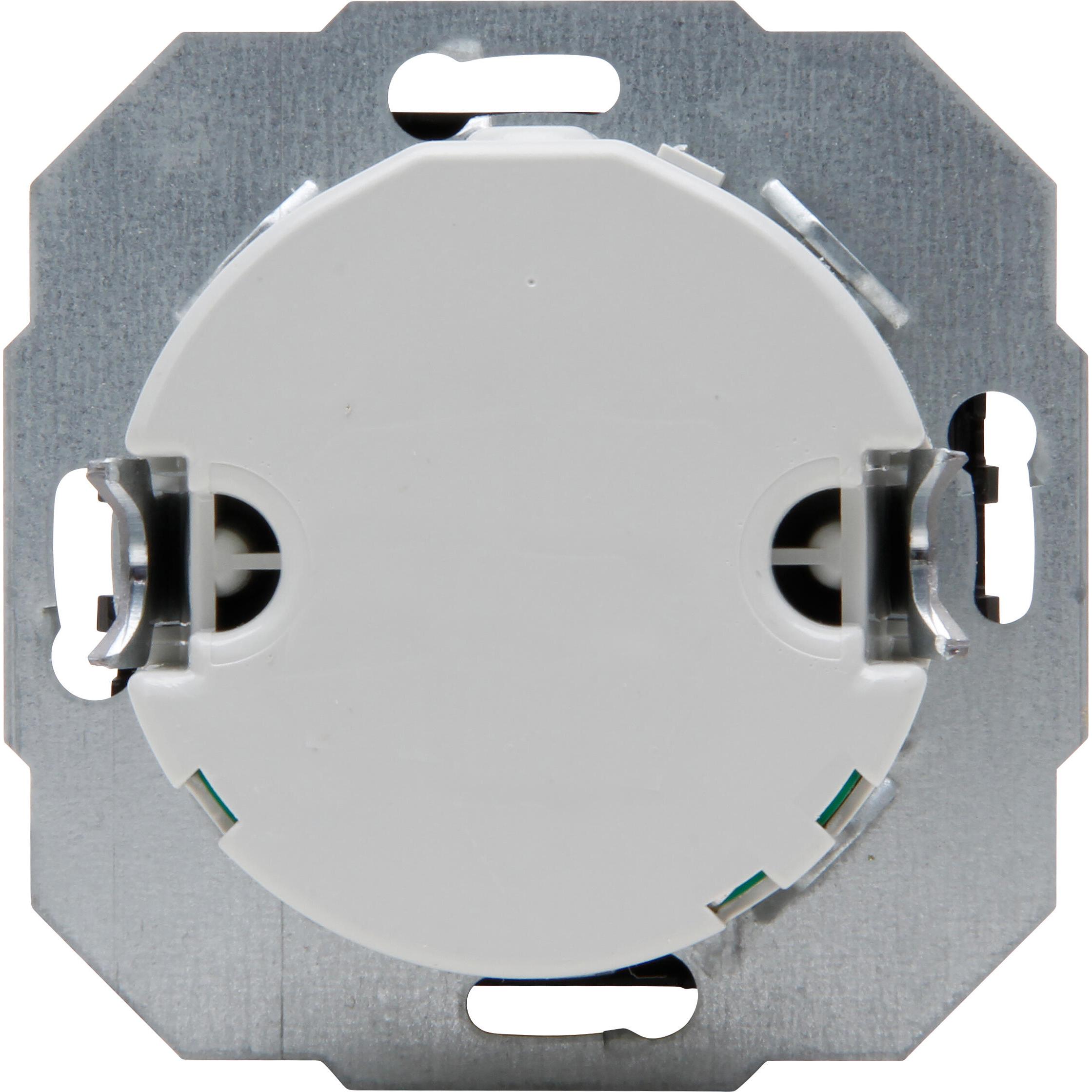

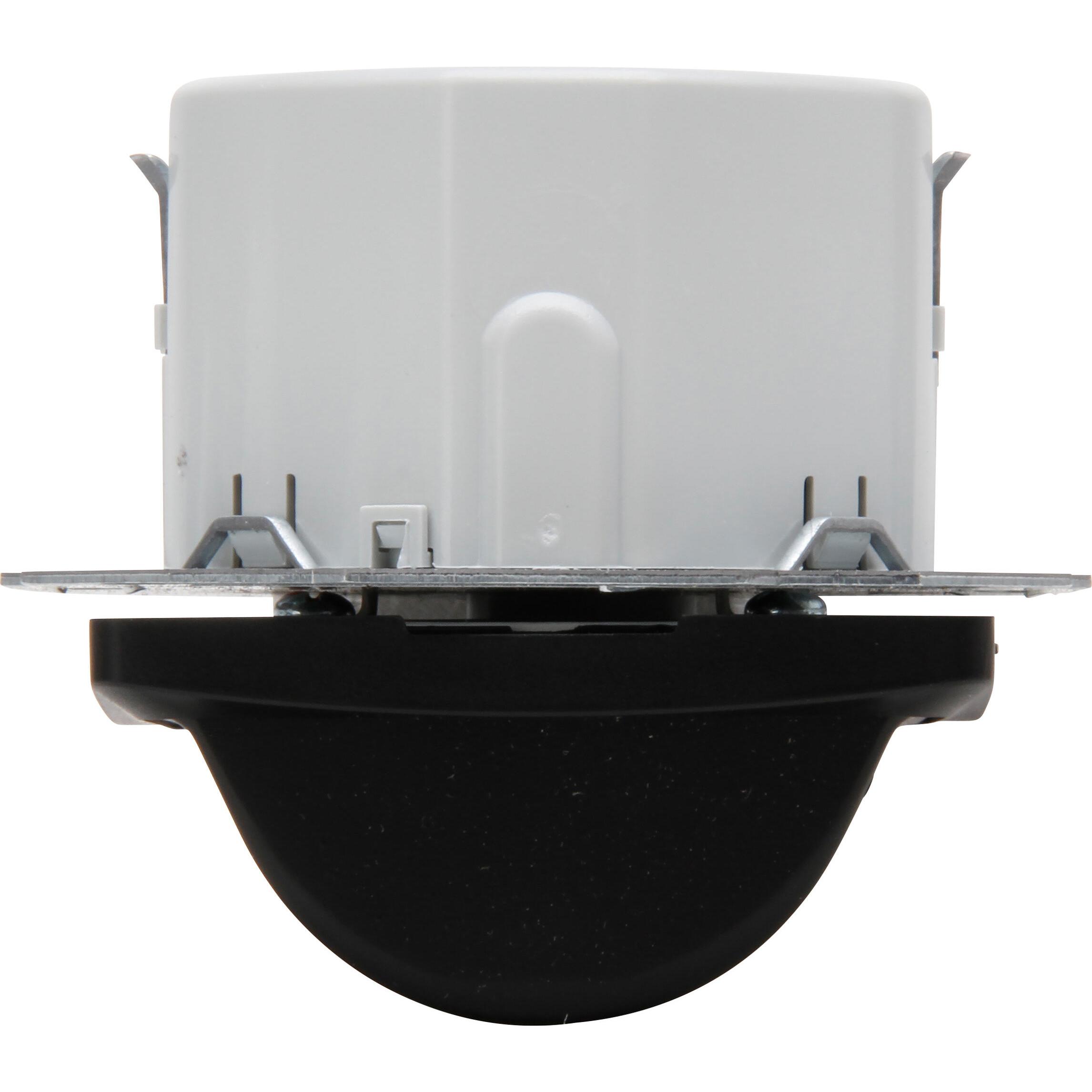

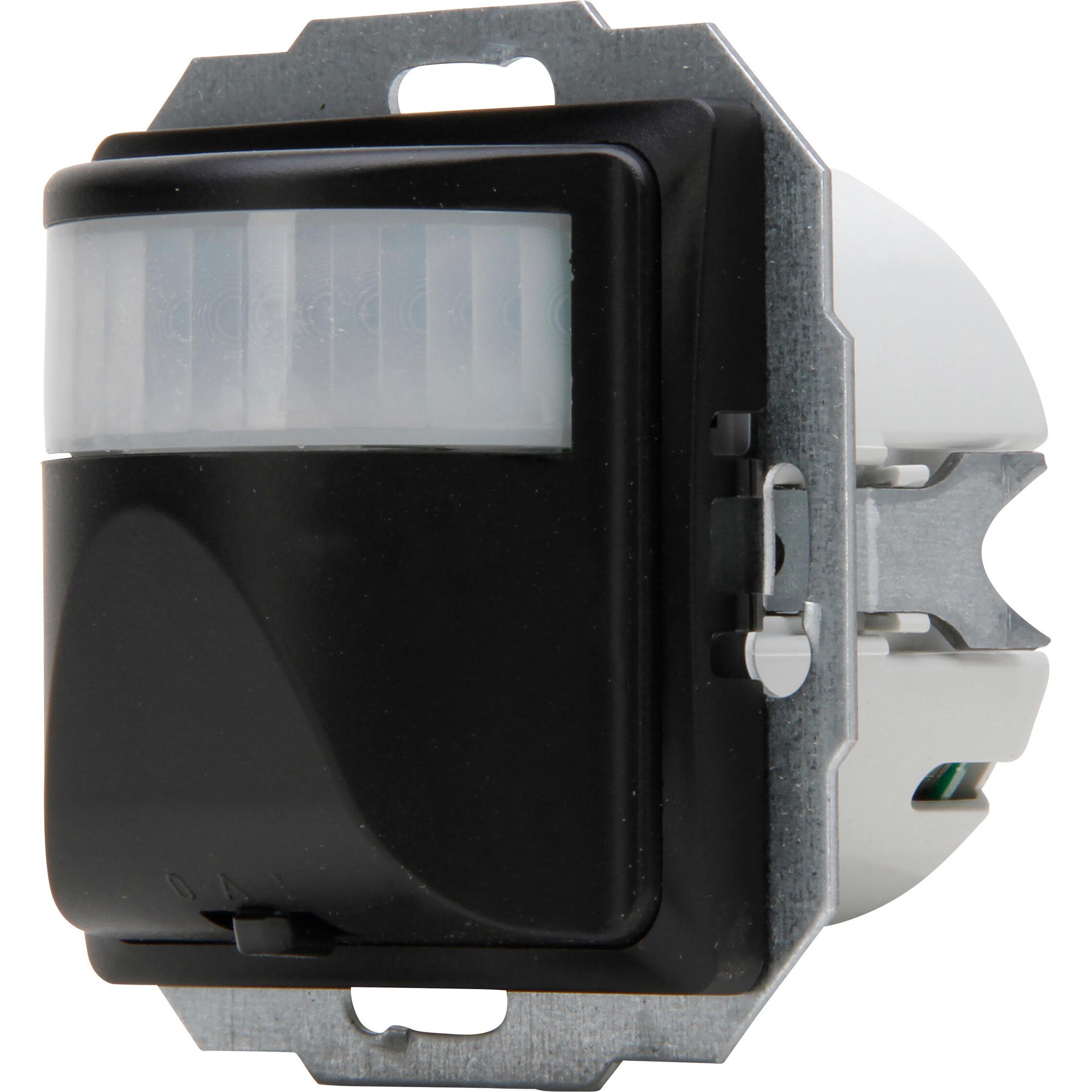

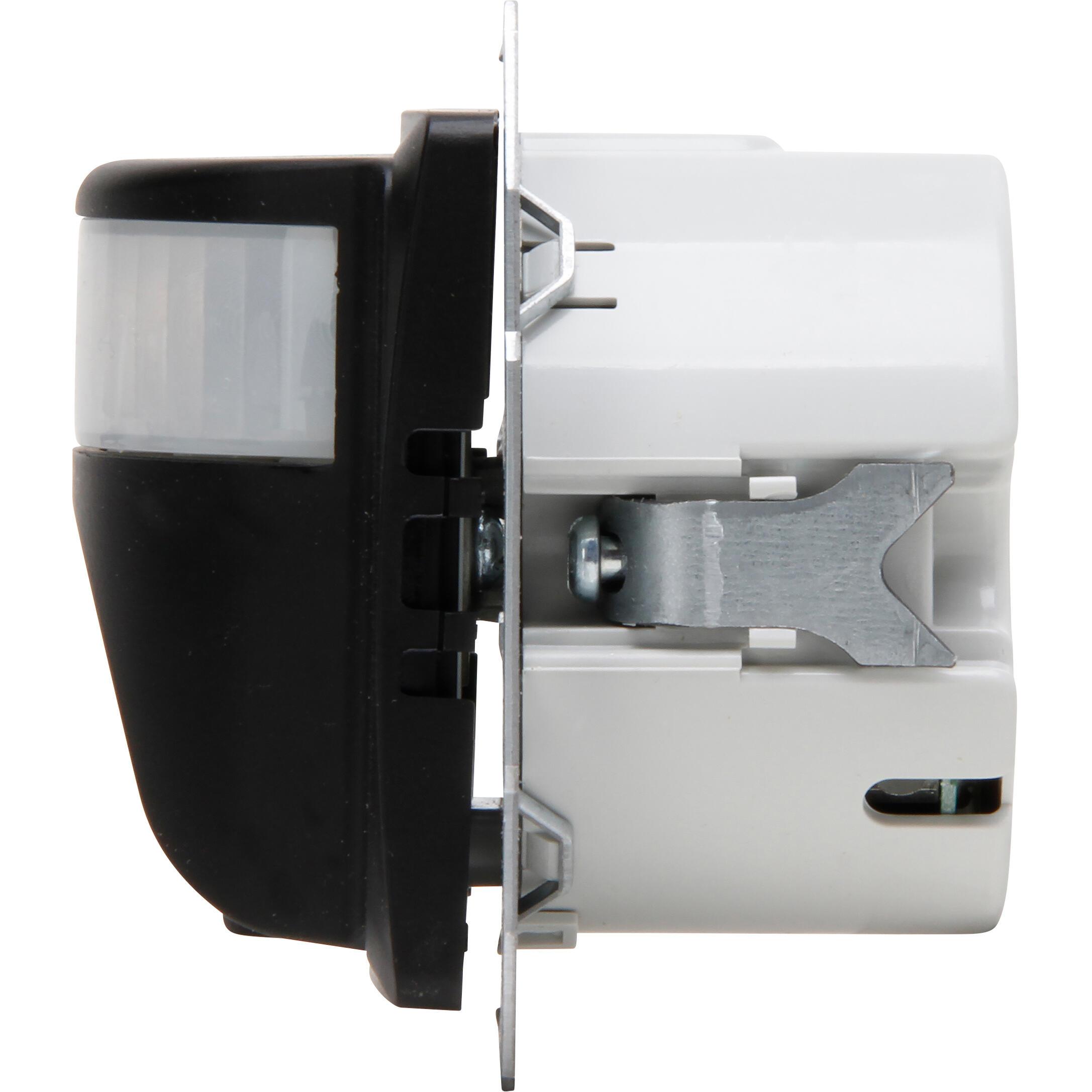

INFRAcontrol 3D 180º UP IP20 Flush mounted infrared motion switch (50x50mm DIN 49075),with frame (Design ATHENIS, PARIS, VENEDIG and MILANO in anthracite / VISION in steel-colour / MALTAin anthracite-metallic), detection angle: 180º, detection range: approx. 10m, switching time: 4-240 seconds, light treshold adjustable with slide switch: permanently OFF, automatic, permanently ON, 3-wire device forresistive and inductive loads switching capacity: max. 1000 Watts, 230V~, 50/60Hz, colour: anthracite
| Characteristic | Value |
|---|---|
| Article Nr | 808405511 |
| PU | 1 |
| EAN | 4008224694124 |
| Dim function with dimmer basic element | no |
| With alarm function | no |
| Connection type | Screwed terminal |
| Response value sensitivity adjustable | ja |
| Response value luminosity | 5 – 1000 lx |
| Response value luminosity adjustable | yes |
| Anti-bacterial treatment | no |
| Number of switching zones | 1 |
| Model | Movement sensor |
| Surface finishing | Glossy |
| Switch-off delay | 0 s |
| Width | 50,0 mm |
| Switching-on delay | 0 s |
| Diameter detection range on floor | 20 m |
| Detection angle horizontal | 0 – 180 ° |
| Colour | anthracite |
| Farbe (Kopp-Bezeichnung) | anthrazit |
| Remote operation | no |
| Frequency | 50 – 50 Hz |
| Suitable for C-load | yes |
| Suitable for ceiling mounting | nein |
| Suitable for wireless transmission | no |
| Suitable for wall mounting | yes |
| Halogen free | yes |
| HVAC-control | no |
| IFTTT support available | no |
| Compatible with Amazon Alexa | no |
| Compatible with Apple HomeKit | no |
| Compatible with Google Assistant | no |
| Constant light control | no |
| Max. duty cycle | 4 min |
| Max. starting current | 16,00 A |
| Max. presence range | 157 m² |
| Max. transmission range frontally | 10,000 m |
| Max. transmission range sideways | 10,000 m |
| Max. switching power | 1000 W |
| Max. switching power LED | 300 W |
| Min. starting current | 0,00 A |
| Min. depth of built-in installation box | 32,0 mm |
| With acoustic sensor | no |
| With connection cable | no |
| With DALI interface | no |
| With remote control | no |
| With signal unit | no |
| Mounting method | Flush mounted |
| Substation input | yes |
| Nominal voltage | 230 – 230 V |
| Surface protection | Untreated |
| Optimum mounting height | 1,1 m |
| RAL-number (similar) | 7024 |
| Background monitoring | nein |
| Impact strength | IK00 |
| Degree of protection (IP) | IP20 |
| Pivoting range sensor, horizontal | 0 – 0 ° |
| Pivoting range sensor, vertical | 0 – 0 ° |
| Sensor type | Passive infrared |
| Voltage type | AC |
| Teach-function for response value luminosity | no |
| Temperature | 0 – 40 °C |
| Depth | 61,4 mm |
| Animal zone | no |
| Transparent | no |
| Staircase monitoring | no |
| Creep-under protection | no |
| Networkable | no |
| Material | Plastic |
| Material quality | Thermoplastic |
| Forced switch off | yes |
| Forced switch on | yes |
| Bridging switch | yes |
| Netzstecker - Typbezeichnung | ohne |
