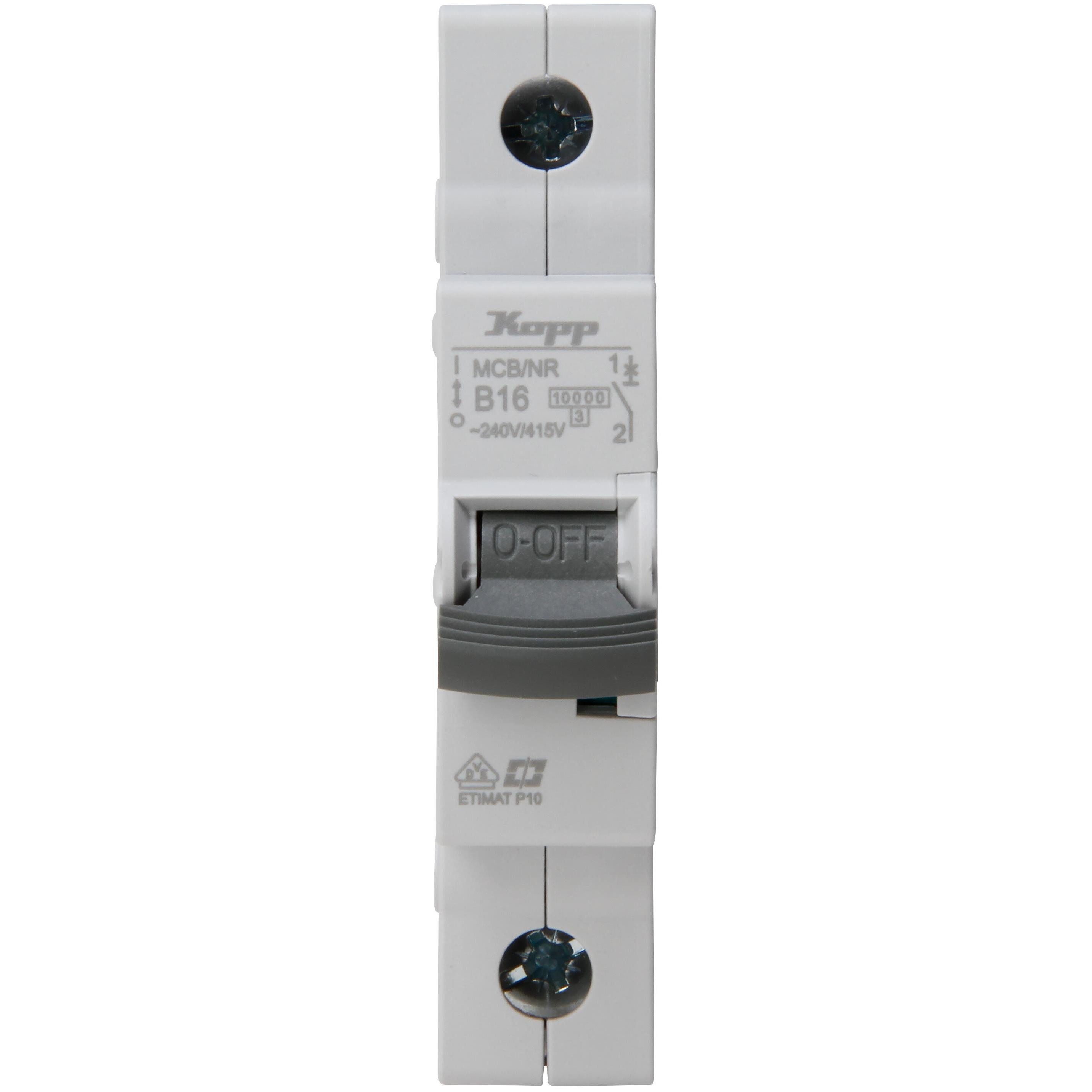

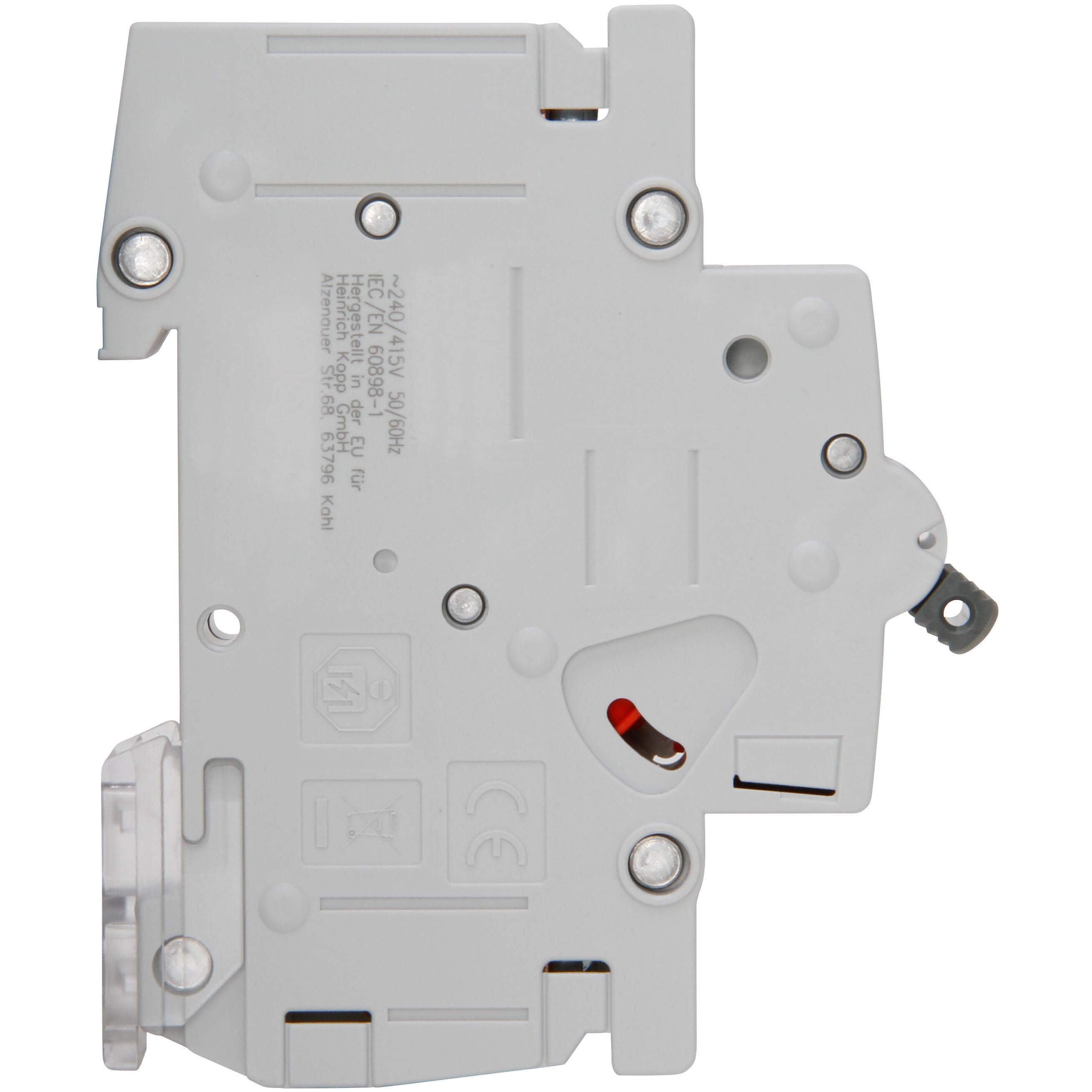

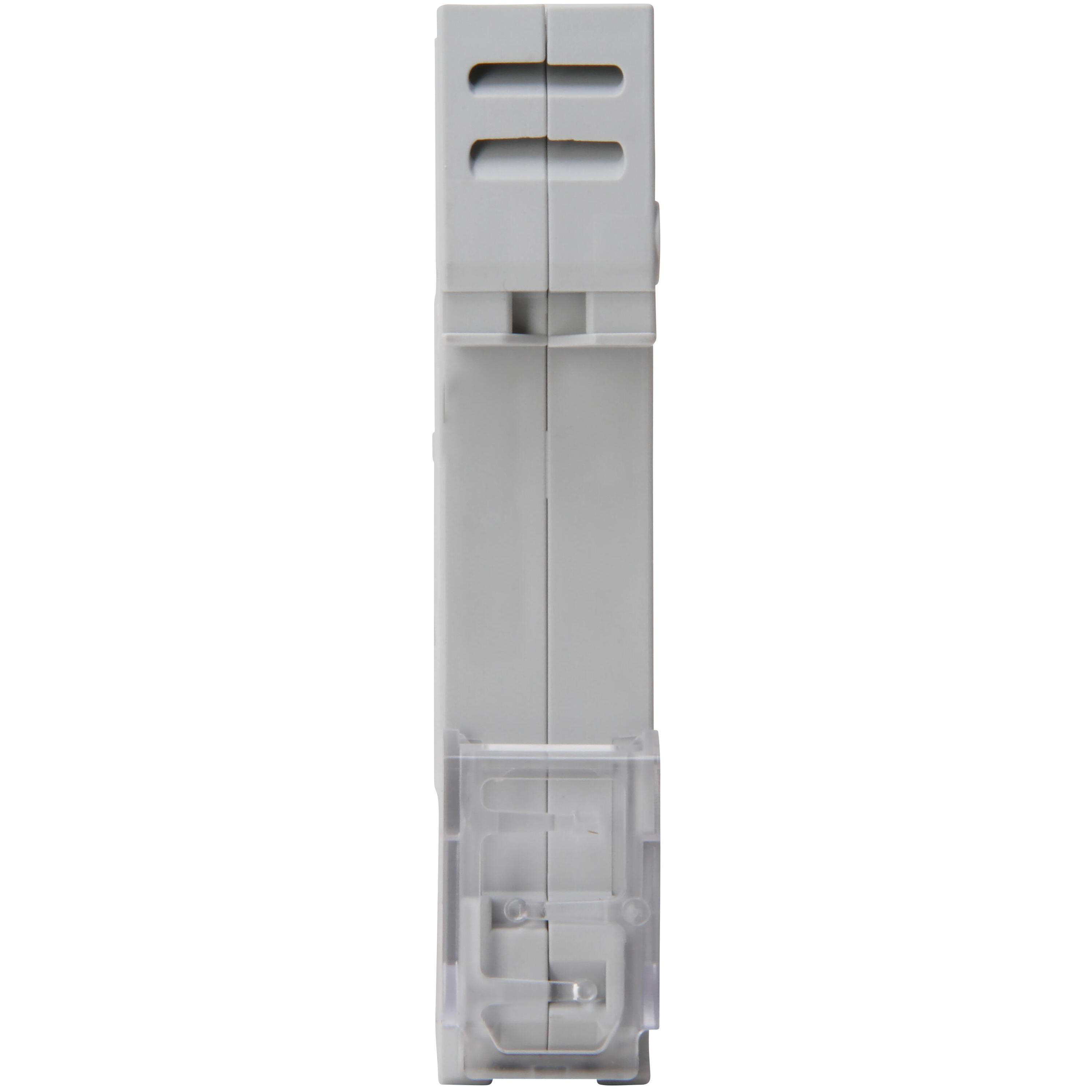

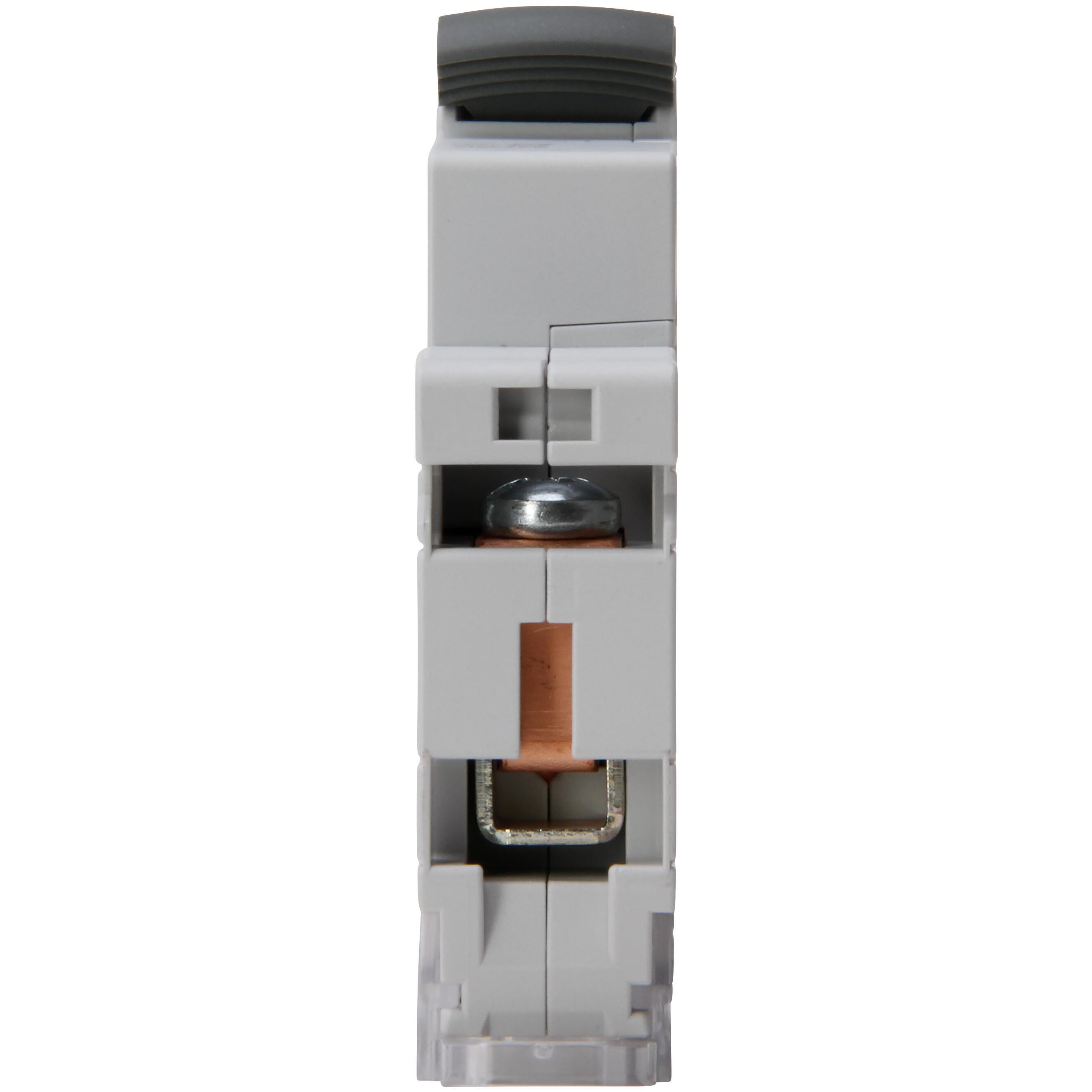

Miniature Circuit Breaker (MCB), 1-pole, B-characteristic, 16A
Miniature Circuit Breaker (MCB), 1-pole, B-Characteristic, 16A, 230/400VAC acc. 60VDC, 10kA
| Characteristic | Value |
|---|---|
| Article Nr | 721600097 |
| PU | 12 |
| EAN | 4008224674775 |
| Connectable conductor cross section solid-core | 1,00 – 25,00 mm² |
| Connectable conductor cross section multi-wired | 1,00 – 25,00 mm² |
| Number of protected poles | 1 |
| Release characteristic | B |
| Rated insulation voltage Ui | 500 V |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 10,00 kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 10 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | 15,00 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V | 15 kA |
| Rated voltage | 230 V |
| Rated impulse withstand voltage Uimp | 6,00 kV |
| Rated current | 16,00 A |
| Width in number of modular spacings | 1 |
| Built-in depth | 69,5 mm |
| Current limiting class | 3 |
| Explosion-proof | no |
| Frequency | 50 – 60 Hz |
| Concurrently switching neutral conductor | no |
| Number of poles (total) | 1 |
| Degree of protection (IP) | IP20 |
| Voltage type | AC |
| Ambient temperature during operating | -25 – 55 °C |
| Flush-mounted installation | no |
| Pollution degree | 2 |
| Additional equipment possible | yes |
| Over voltage category | 3 |
| Article width in mm (net dimension) | 17,8 mm |
| Item length in mm (net measurement) | 69,5 mm |
| Item height in mm (net measurement) | 88,0 mm |
| Netzstecker - Typbezeichnung | ohne |
