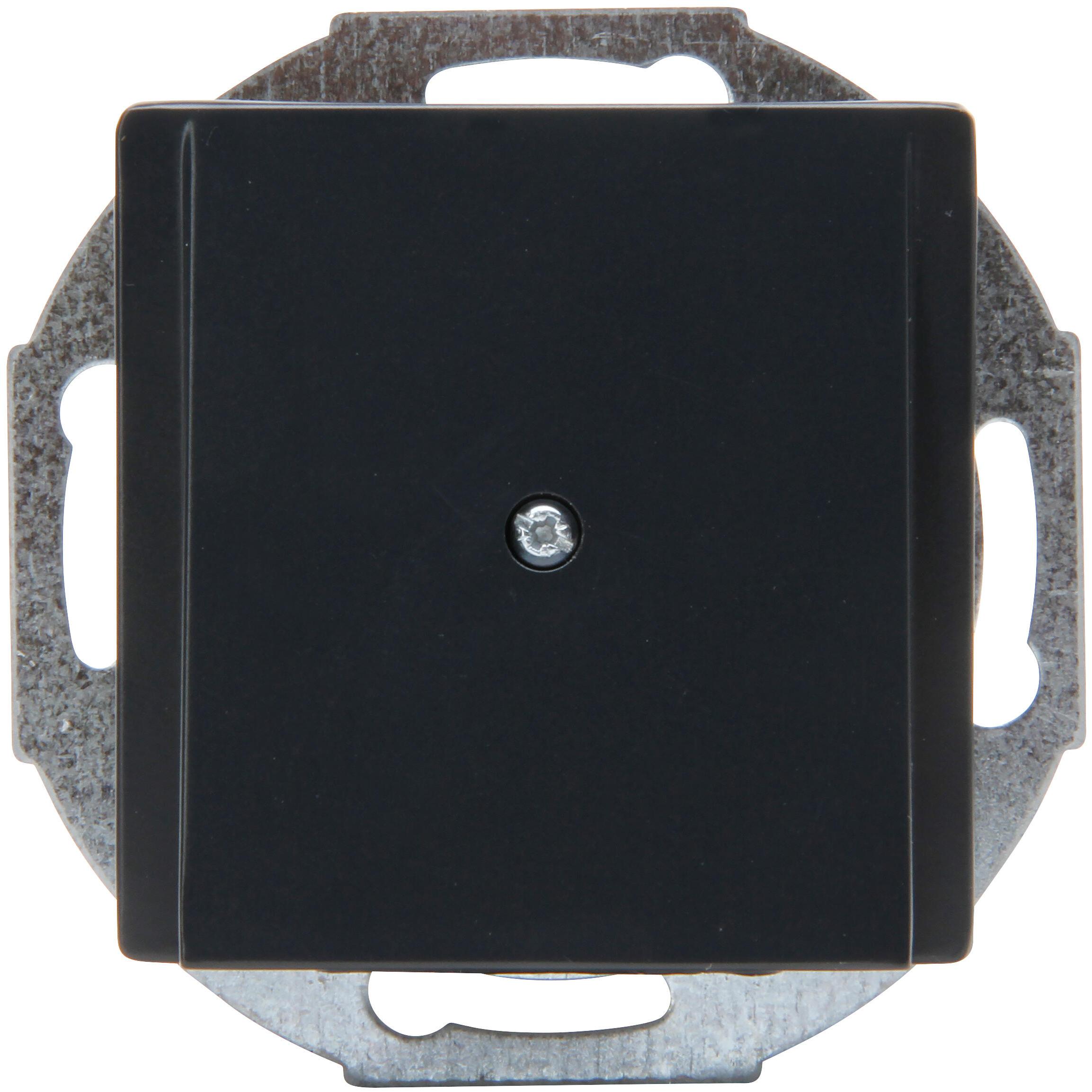

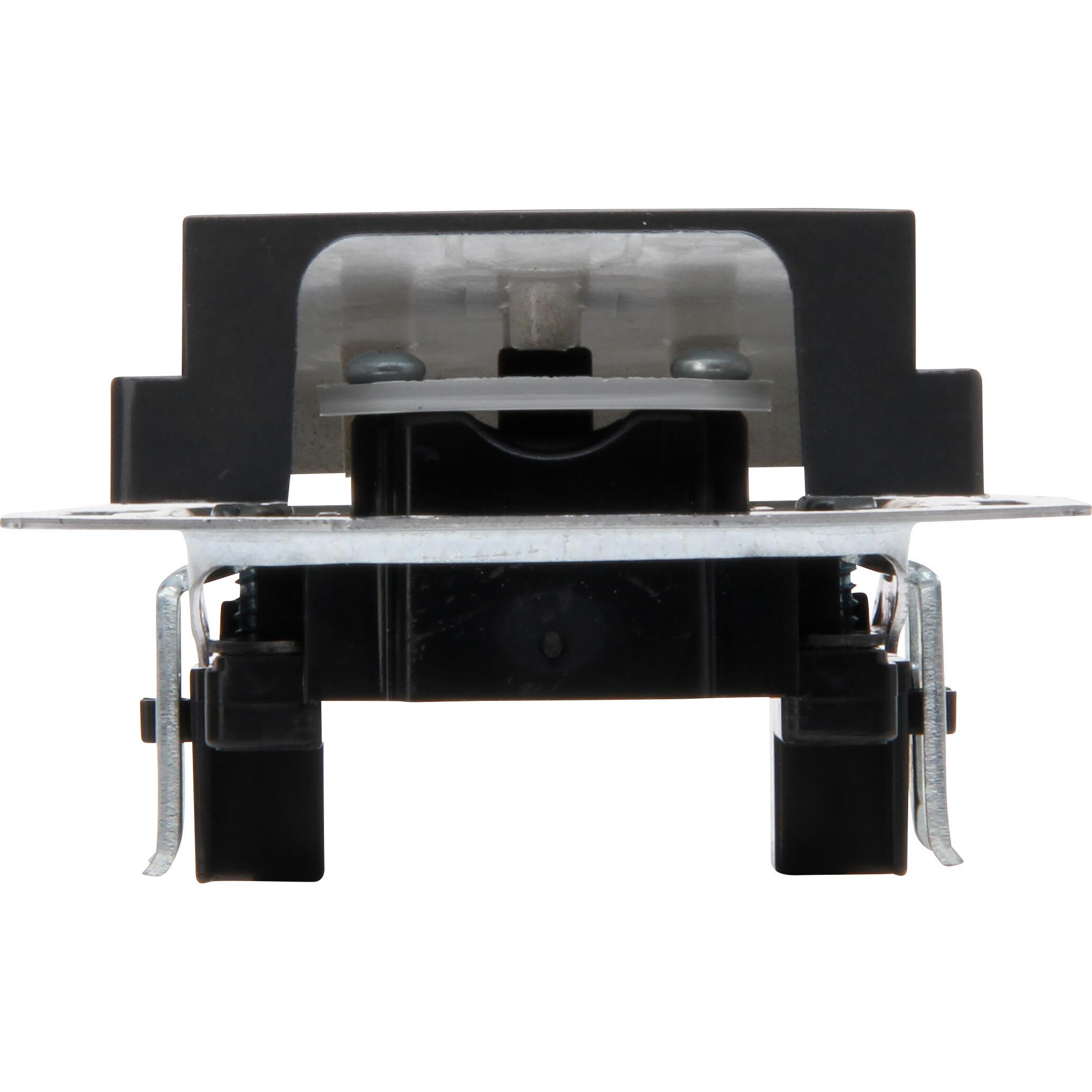

HK07 – cable outlet socket, colour: anthracite
HK07 – cable outlet socket, colour: anthracite
| Characteristic | Value |
|---|---|
| Article Nr | 492215005 |
| PU | 3 |
| EAN | 4008224661119 |
| Anti-bacterial treatment | no |
| Number of modules (module system) | 0 |
| Surface finishing | Matt |
| Outlet direction | Bottom |
| Type of fastening | Mounting with claw and screw |
| Imprintable label | Without indication field |
| Shielded buses | no |
| Colour | anthracite |
| Suitable for number of connectors | 0 |
| Suitable for degree of protection | IP20 |
| Shielded housing | no |
| Width of device | 70,0 mm |
| Height of device | 70,0 mm |
| Depth of device | 44,5 mm |
| Halogen free | yes |
| Contact type | Female |
| Luster terminal | no |
| With imprint | no |
| With lighting | no |
| With buses/couplings | no |
| With hinged lid | no |
| With dust cover | no |
| With strain relief | no |
| Mounting method | Flush mounted |
| Surface protection | Lacquered |
| RAL-number (similar) | 7024 |
| Impact strength | IK00 |
| Support ring | yes |
| Transparent | no |
| Utilization | Cable outlet |
| Material | Plastic |
| Material quality | Thermoplastic |
| Assembly arrangement | Central cover plate |
| Netzstecker - Typbezeichnung | ohne |
