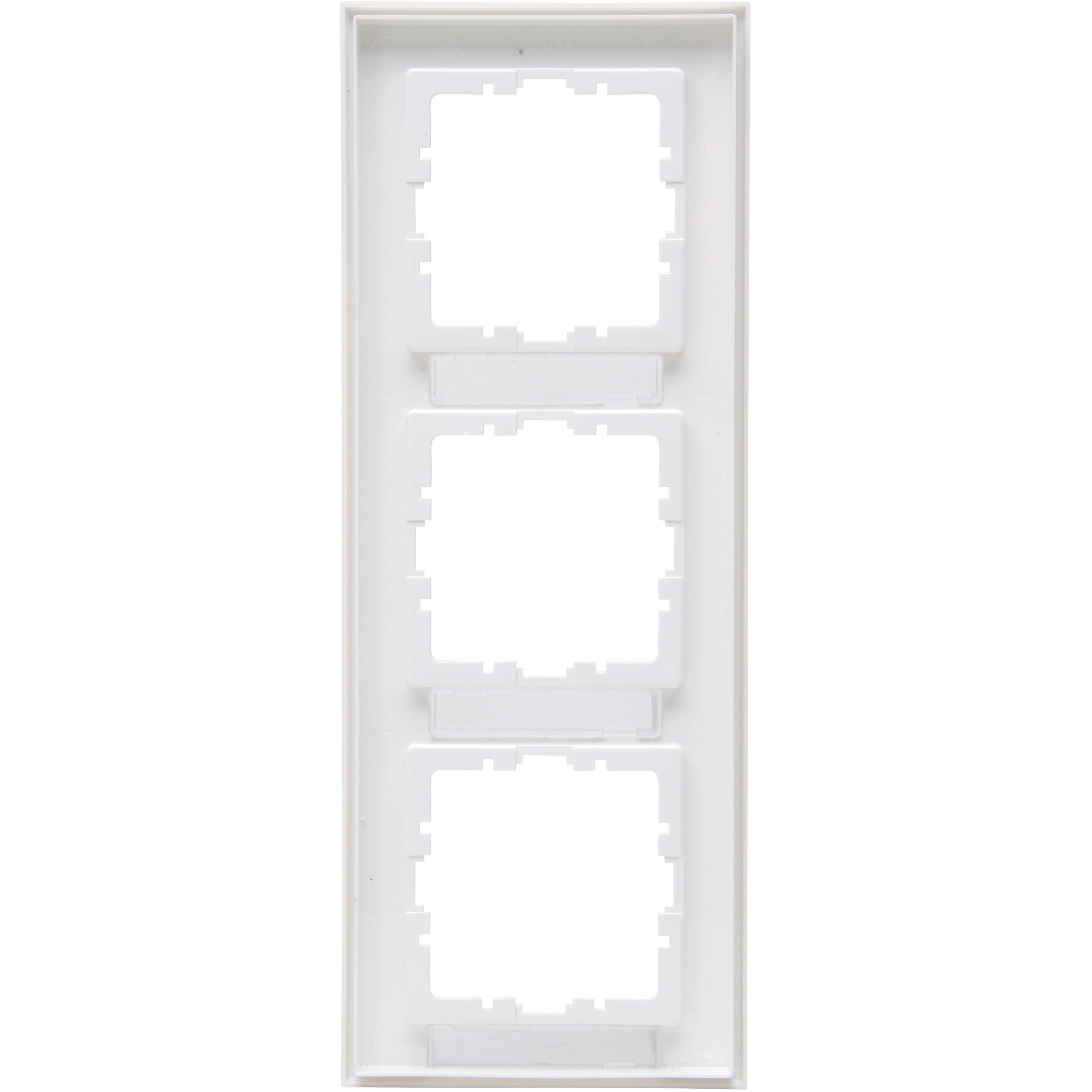

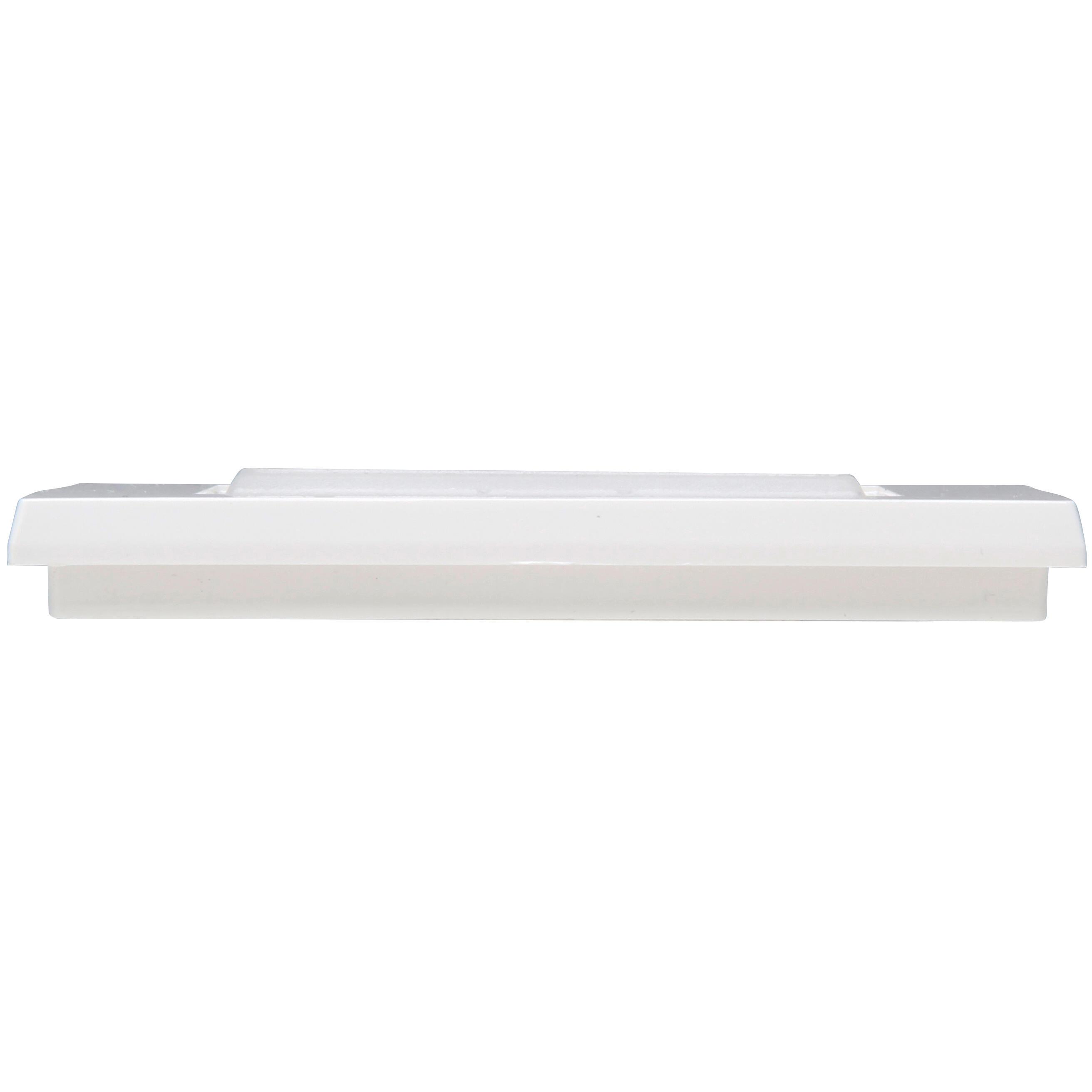

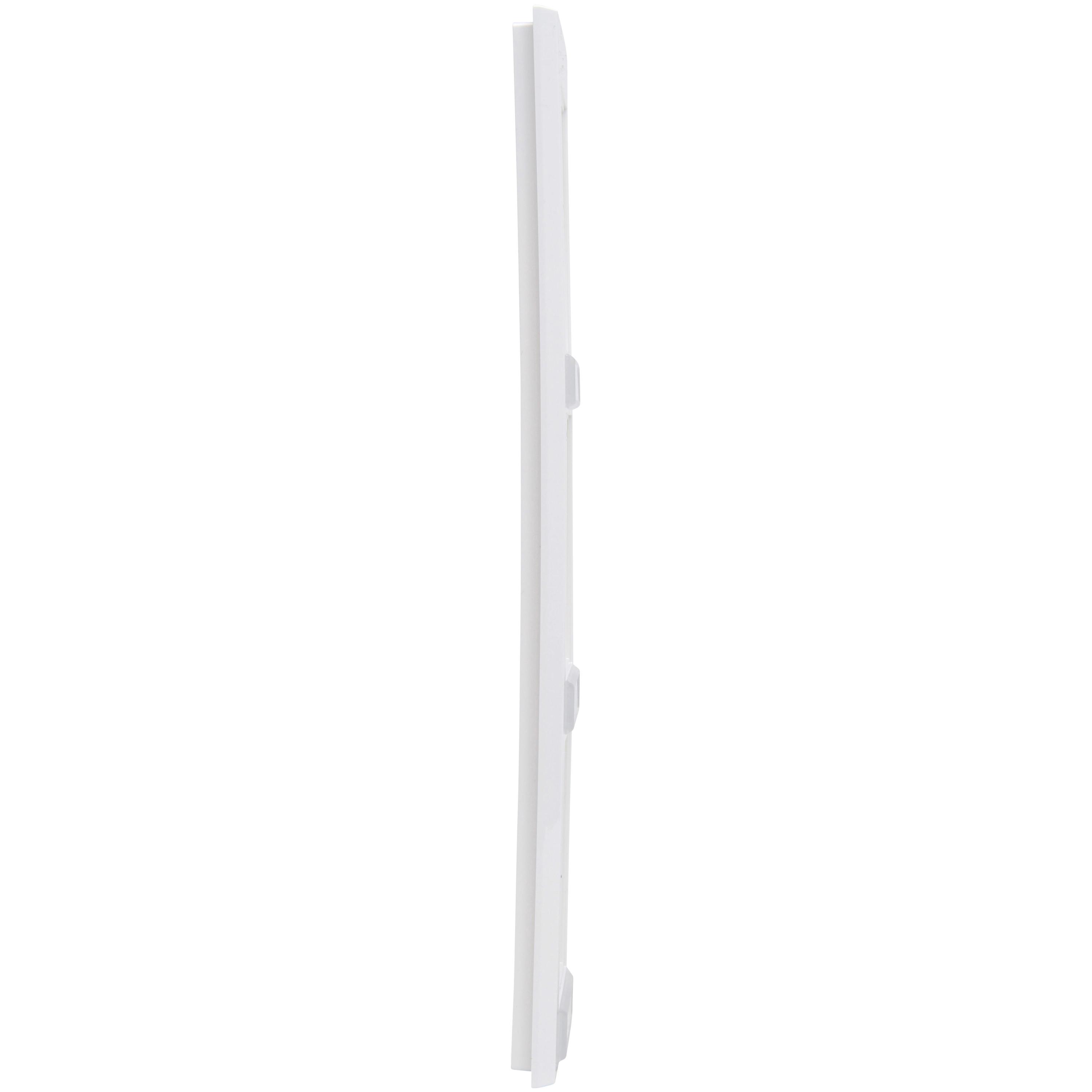

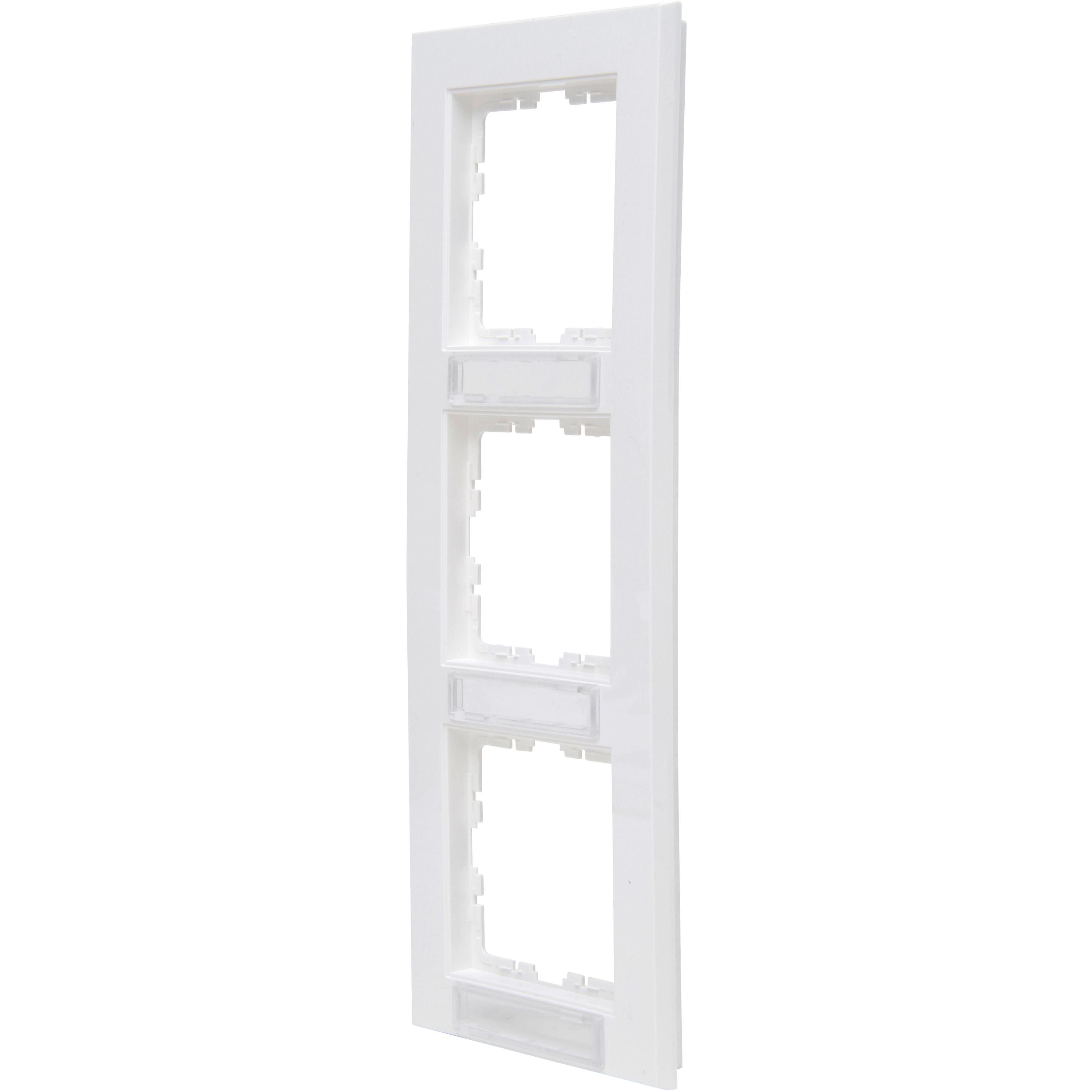

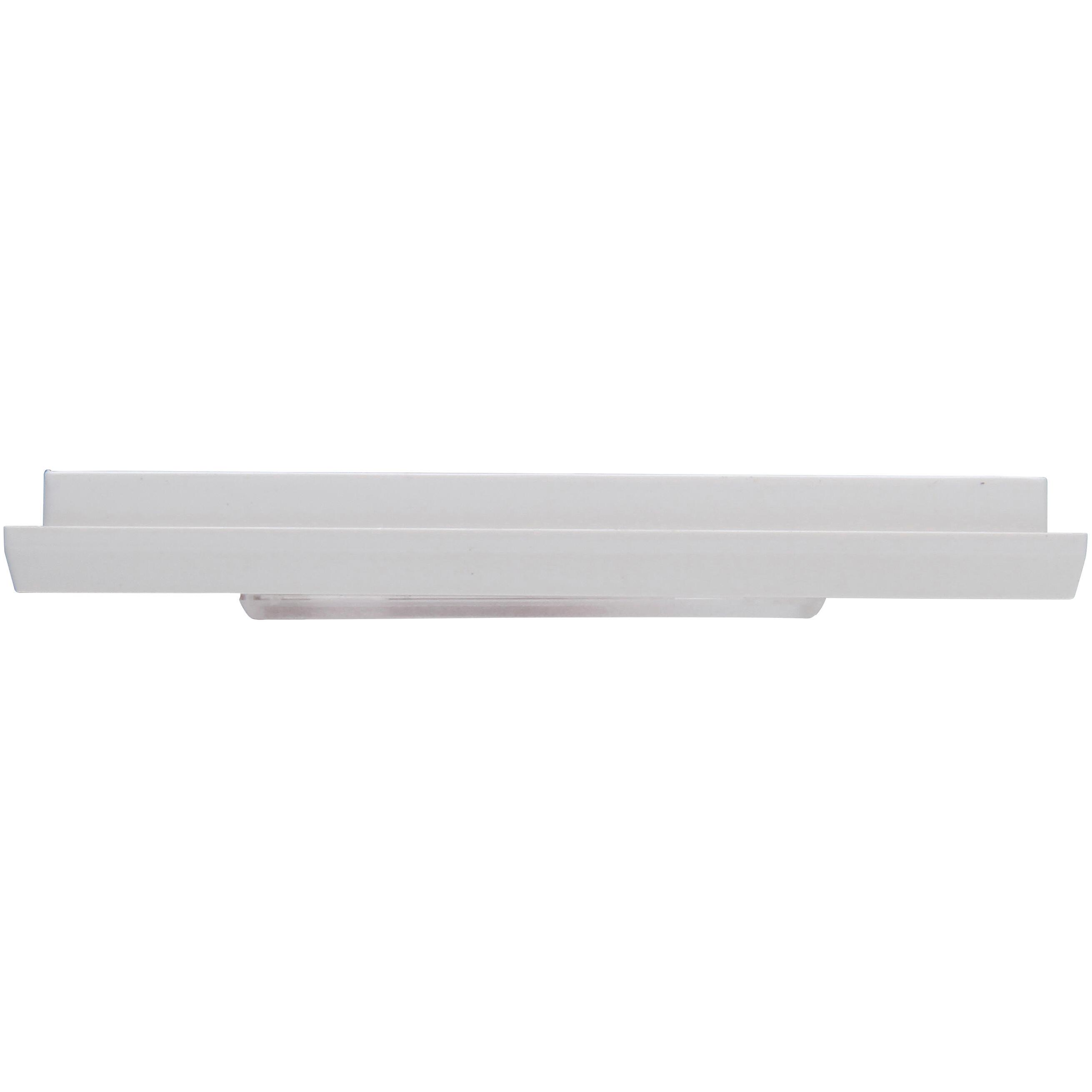

Cover frame for vertical installation, 3-fold, with Labeling, HK07, colour: pure white
Cover frame for vertical installation, 3-fold, with Labeling, HK07, protection class IP20, colour: pure white
| Characteristic | Value |
|---|---|
| Article Nr | 402729039 |
| PU | 5 |
| EAN | 4008224646956 |
| Anti-bacterial treatment | no |
| Number of units | 1 |
| Number of units horizontal | 0 |
| Number of units vertical | 3 |
| Number of modules horizontal (module system) | 0 |
| Number of modules vertical (module system) | 1 |
| Surface finishing | Glossy |
| Type of fastening | Clamp mounting |
| Width | 86,0 mm |
| Diameter bore hole (opening) | 0 mm |
| Built-in width | 55,8 mm |
| Built-in height | 55,8 mm |
| Colour | pure-white |
| Farbe (Kopp-Bezeichnung) | reinweiß |
| Suitable for built-in installation | no |
| Suitable for wall duct | yes |
| Suitable for floor box | no |
| Halogen free | yes |
| Height | 228,4 mm |
| With hinged lid | no |
| With mounting grid | no |
| Mounting direction | Vertical |
| Surface protection | Untreated |
| RAL-number (similar) | 9022 |
| Impact strength | IK00 |
| Degree of protection (IP) | IP20 |
| Label space/information surface | yes |
| Depth | 9,5 mm |
| Transparent | no |
| Flush-mounted installation | no |
| Material | Plastic |
| Material quality | Thermoplastic |
| Netzstecker - Typbezeichnung | ohne |
