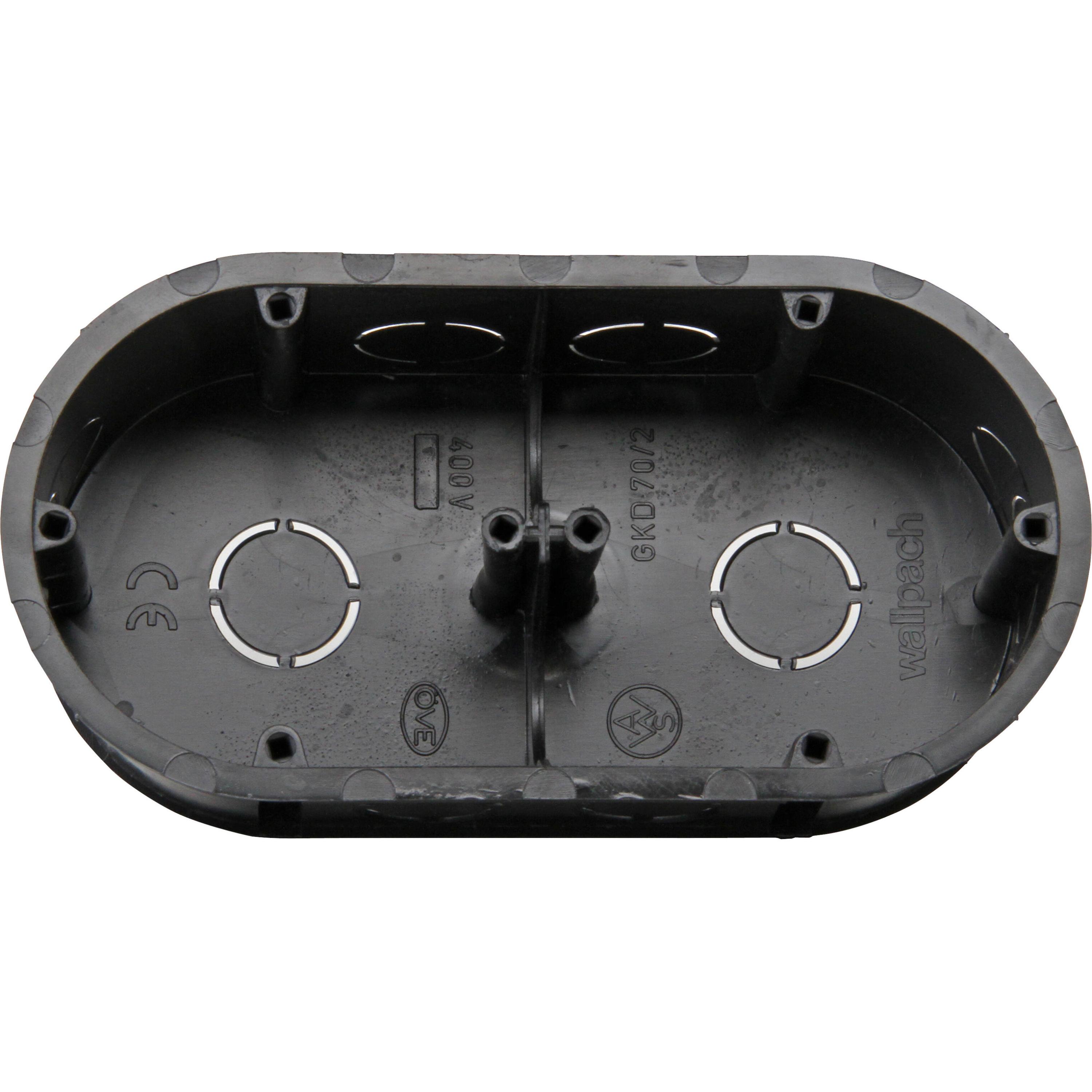

Switch box 2-way, flush mounted, 143x70x41mm, black, IP20
Switch box 2-way, flush mounted, 143x70x41mm, black, IP20, alignable, with coupling system for aligning in standard
distance of 71mm and adjustable fixing of outlet devices, mounting screw spacing 60mm
| Characteristic | Value |
|---|---|
| Article Nr | 392202002 |
| PU | 25 |
| EAN | 9008223922025 |
| Number of inlets | 10 |
| Number of adjustable device fixing lugs | 0 |
| Number of included spouts | 0 |
| Number of non-adjustable device fixing lugs | 0 |
| Model | Double |
| Cover model | None |
| Construction type | Built-in installation box (device box) |
| Mounting switching equipment | Screw or spread out |
| Equipped with | None |
| Width | 70,0 mm |
| Inlet from the rear | yes |
| Colour | Black |
| Shape | EV000396 – Oval |
| Circuit integrity | None |
| For number of electric fittings | 2 |
| For tube diameter | 16/19 mm |
| Housing feed-through by break-out opening | yes |
| Housing feed-through by seal membrane | no |
| Housing feed-through by nozzle | no |
| Housing feed-through by step membrane | no |
| Halogen free | yes |
| Internal depth | 40,0 mm |
| Clamp position fixed | mo |
| Compliant with BS 4662 | no |
| Connectable | yes |
| Luminaire hook mounting | no |
| Air tight | no |
| Length | 0,1 mm |
| With screening | no |
| Provided with revolving ring | no |
| With screws | no |
| Mit Trennwand | no |
| Mounting method | Flush mounted |
| Surface protection | Untreated |
| Sealable | no |
| Number of poles of the clamp | 0 |
| Pipe locking | no |
| Pipe locking optional | no |
| Degree of protection (IP) | IP20 |
| Special application | None |
| Nozzle | None |
| Depth | 41,0 – 41,0 mm |
| Transparent cover | no |
| Material | Plastic |
| Netzstecker - Typbezeichnung | ohne |
