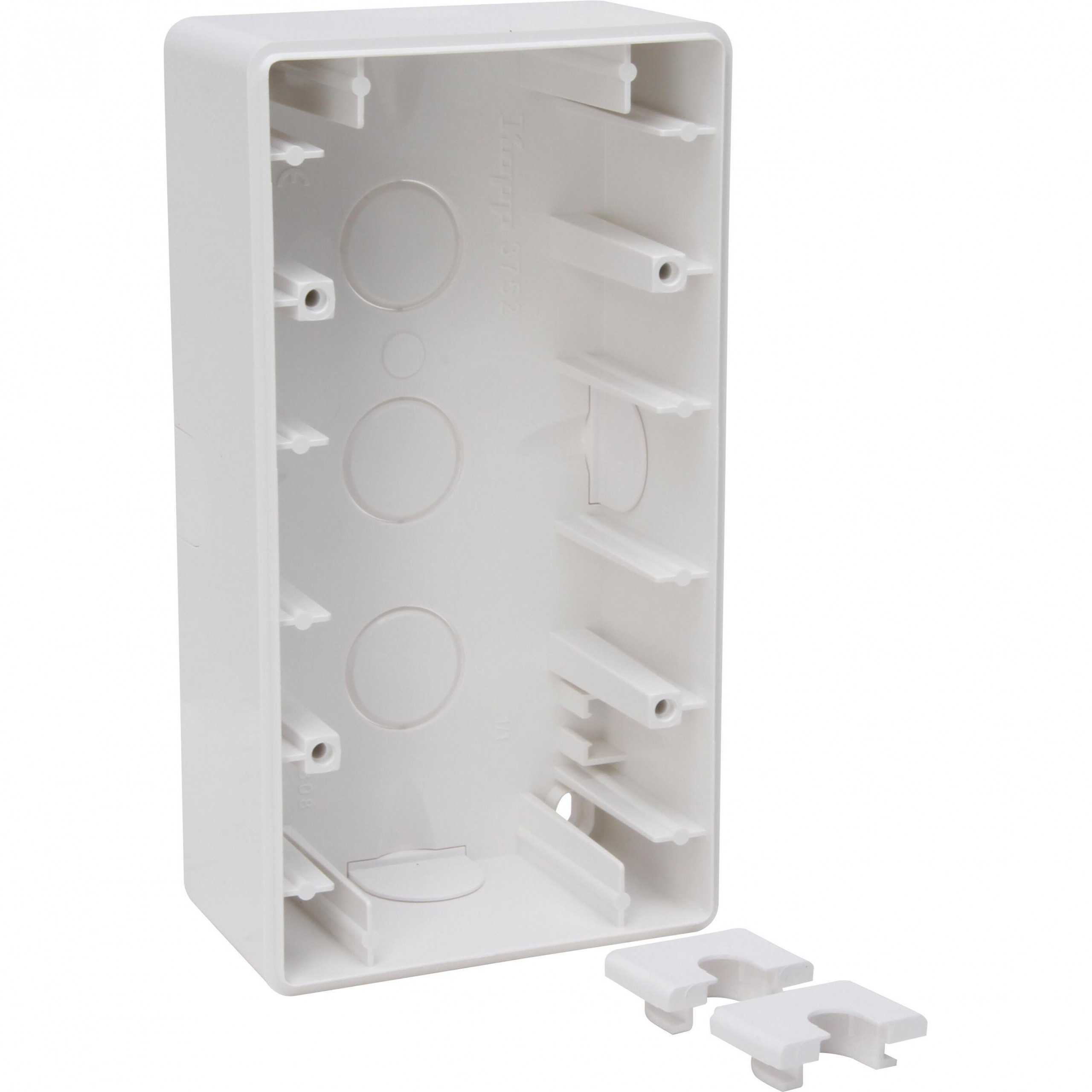

HK02 – double-surface-mounting housing for flush-mount switch ranges, colour: arctic white
HK02 – double-surface-mounted housing for surface mounting of flush-mounted switch range, with fastening screws, colour: arctic white
| Characteristic | Value |
|---|---|
| Article Nr | 375202001 |
| PU | 5 |
| EAN | 4008224652742 |
| Number of inlets | 5 |
| Number of units | 1 |
| Number of earthing terminals | 0 |
| Number of modules (module system) | 1 |
| Surface finishing | Glossy |
| Width | 151,0 mm |
| Diameter | 151,0 mm |
| Inlet from the rear | yes |
| Colour | White |
| Farbe (Kopp-Bezeichnung) | arctic white |
| Shape | Square |
| Suitable for modular domestic switching devices | no |
| Width of device | 151,0 mm |
| Height of device | 80,5 mm |
| Depth of device | 44,1 mm |
| Halogen free | yes |
| Height | 80,5 mm |
| Cross-trunking mounting | no |
| With cover frame | no |
| With installation tube entry | ja |
| With cable entry | yes |
| With duct entry | no |
| With screw gland entry | no |
| Mounting direction | Horizontal and vertical |
| Surface protection | Untreated |
| RAL-number (similar) | 9016 |
| Shock resistant | no |
| Degree of protection (IP) | IP20 |
| Depth | 44,1 mm |
| Desktop device | nein |
| Transparent | no |
| Material | Plastic |
| Material quality | Thermoplastic |
| Assembly arrangement | Surface mounted housing |
| Netzstecker - Typbezeichnung | ohne |
