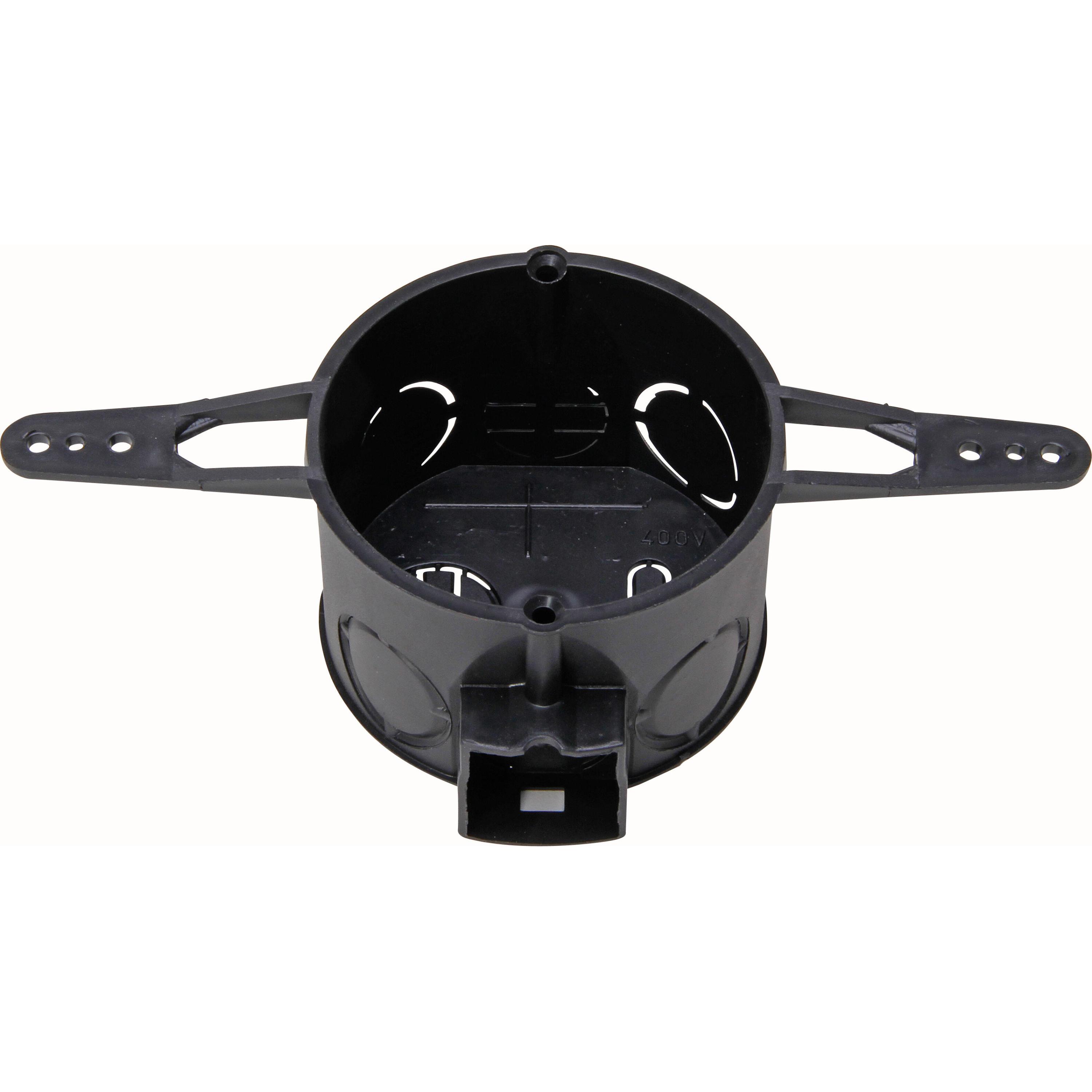

Switch box with nail lugs, flush-mounted, diameter: 60mm, depth: 41mm, black, IP20
Switch box with 2 nail lugs as mounting aids, flush mounted, diameter: 60mm, box depth: 41mm, black, IP20, 2 screw options or clip fixing, with fixed inlets, centre distance 71mm horizontal and vertical, with 3x M16 and 3x M20 knock-out openings
| Characteristic | Value |
|---|---|
| Article Nr | 370301008 |
| PU | 25 |
| EAN | 4034338510500 |
| Number of inlets | 6 |
| Number of adjustable device fixing lugs | 0 |
| Number of included spouts | 0 |
| Number of non-adjustable device fixing lugs | 0 |
| Model | Single |
| Cover model | None |
| Construction type | Built-in installation box (device box) |
| Mounting switching equipment | Screw or spread out |
| Equipped with | None |
| Width | 60,0 mm |
| Diameter | 60,0 mm |
| Inlet from the rear | yes |
| Colour | Black |
| Shape | EV000167 – round |
| Circuit integrity | None |
| For number of electric fittings | 1 |
| For tube diameter | 16/19 mm |
| Suitable for cable diameter | 15 – 17 mm |
| Housing feed-through by break-out opening | yes |
| Housing feed-through by seal membrane | no |
| Housing feed-through by nozzle | yes |
| Housing feed-through by step membrane | no |
| Halogen free | yes |
| Internal depth | 40,0 mm |
| Clamp position fixed | mo |
| Compliant with BS 4662 | no |
| Connectable | yes |
| Luminaire hook mounting | no |
| Air tight | no |
| Length | 0,1 mm |
| Max. conductor cross section | 2,50 mm² |
| With screening | no |
| Provided with revolving ring | no |
| With screws | no |
| Mit Trennwand | no |
| Mounting method | Flush mounted |
| Surface protection | Untreated |
| Sealable | no |
| Number of poles of the clamp | 0 |
| Pipe locking | no |
| Pipe locking optional | no |
| Degree of protection (IP) | IP20 |
| Special application | None |
| Nozzle | None |
| Depth | 41,0 – 41,0 mm |
| Transparent cover | no |
| Material | Plastic |
| Netzstecker - Typbezeichnung | ohne |
