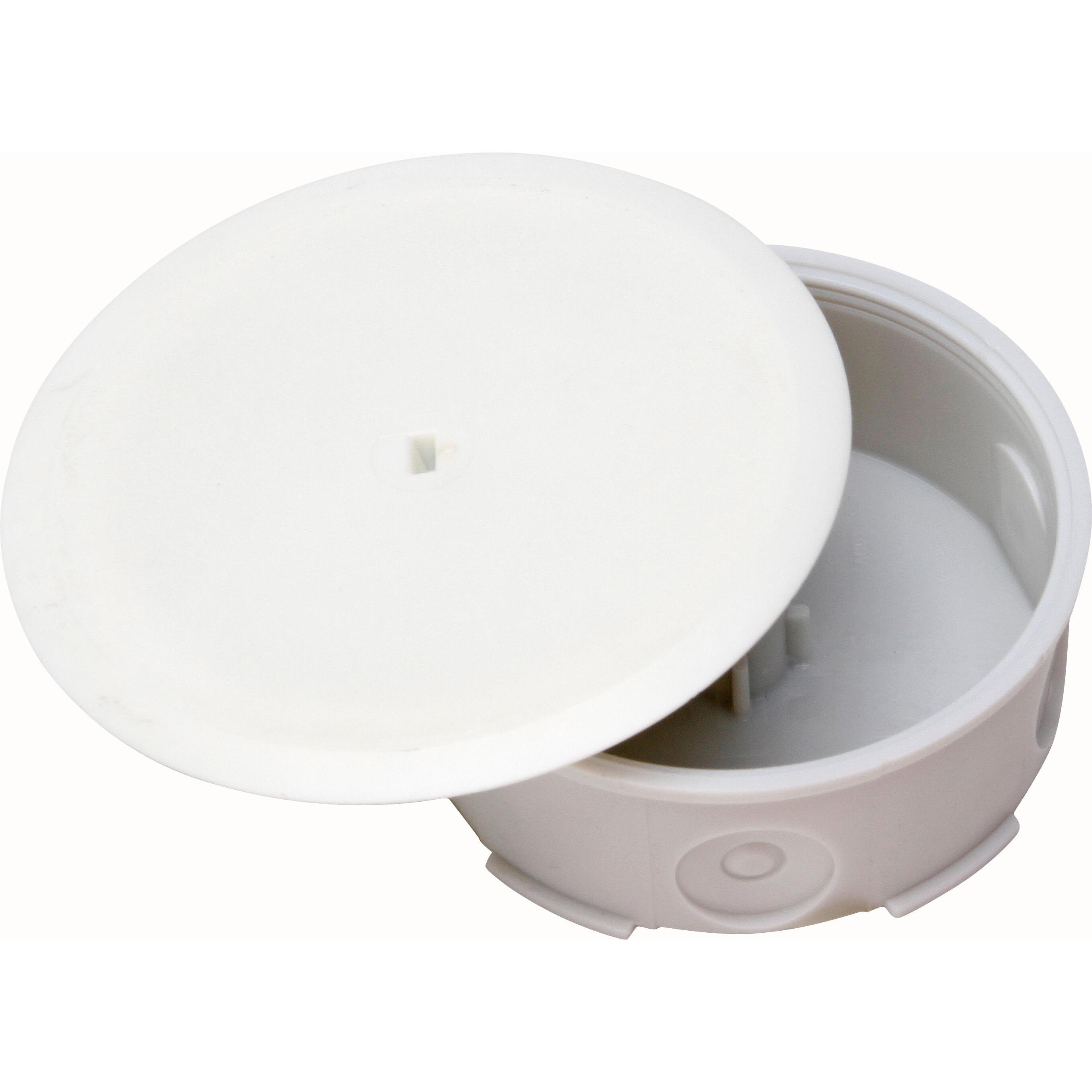

Junction box, flush-mounted, for humid areas, Ø80 mm, IP54, white
Junction box, flush-mounted, for humid areas, IP54, with cover and screws, Ø80mm, outer depth: 32mm, inner depth: 28mm
| Characteristic | Value |
|---|---|
| Article Nr | 359617005 |
| PU | 10 |
| EAN | 4008224283076 |
| Number of inlets | 6 |
| Number of adjustable device fixing lugs | 0 |
| Number of included spouts | 0 |
| Number of non-adjustable device fixing lugs | 0 |
| Model | Single |
| Cover model | Other |
| Construction type | Cable junction box |
| Equipped with | None |
| Width | 80,0 mm |
| Cover attachment | Screwed |
| Diameter | 80,0 mm |
| Inlet from the rear | no |
| Colour | White |
| Shape | EV000167 – round |
| Circuit integrity | None |
| Suitable for cable diameter | 1,5 – 2,5 mm |
| Housing feed-through by seal membrane | no |
| Housing feed-through by nozzle | no |
| Housing feed-through by step membrane | yes |
| Halogen free | yes |
| Internal depth | 32,0 mm |
| Connectable | no |
| Luminaire hook mounting | no |
| Air tight | no |
| Length | 0,1 mm |
| With screening | no |
| Provided with revolving ring | no |
| With screws | no |
| Surface protection | Untreated |
| Sealable | no |
| Pipe locking | no |
| Pipe locking optional | no |
| Degree of protection (IP) | IP54 |
| Nozzle | None |
| Depth | 32,0 – 32,0 mm |
| Transparent cover | no |
| Material | Plastic |
| Netzstecker - Typbezeichnung | ohne |
