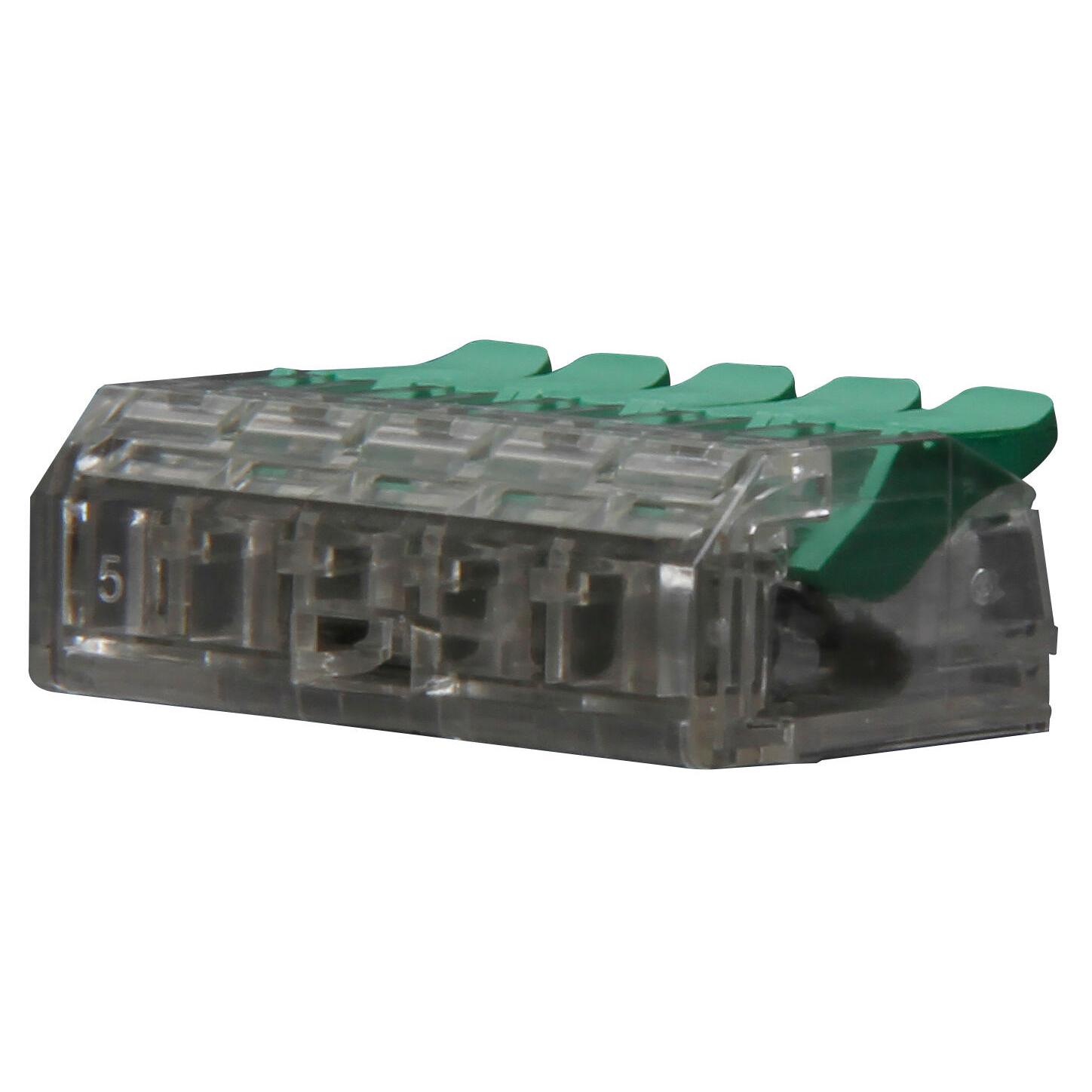

Clamp terminal-connectors, with lever, 5 conductors, max. 4 mm², contents: 8 pcs., cover colour: green
Clamp terminal-connector, with lever, for all conductors, max. 4mm², 5 conductors, housing colour: transparent, contens: 8 pcs., cover colour: green
| Characteristic | Value |
|---|---|
| Article Nr | 348552036 |
| PU | 3 |
| EAN | 4008224690461 |
| Number of clamp positions | 5 |
| AWG-range | 14 – 28 |
| Colour | Green |
| Suitable for flexible core | yes |
| Suitable for solid conductors | yes |
| Suitable for multi-wire core | yes |
| Cable diameter | 0,8 – 2,25 mm |
| Conductor cross section flexible (fine-strand) with cable end sleeve | 0,20 – 4,00 mm² |
| Conductor cross section solid (solid, stranded) | 0,2 – 4 mm² |
| With operation lever | yes |
| Nominal cross section | 0,2 – 4,0 mm² |
| Nominal voltage | 450 V |
| Nominal current | 32,00 A |
| Transparent | yes |
