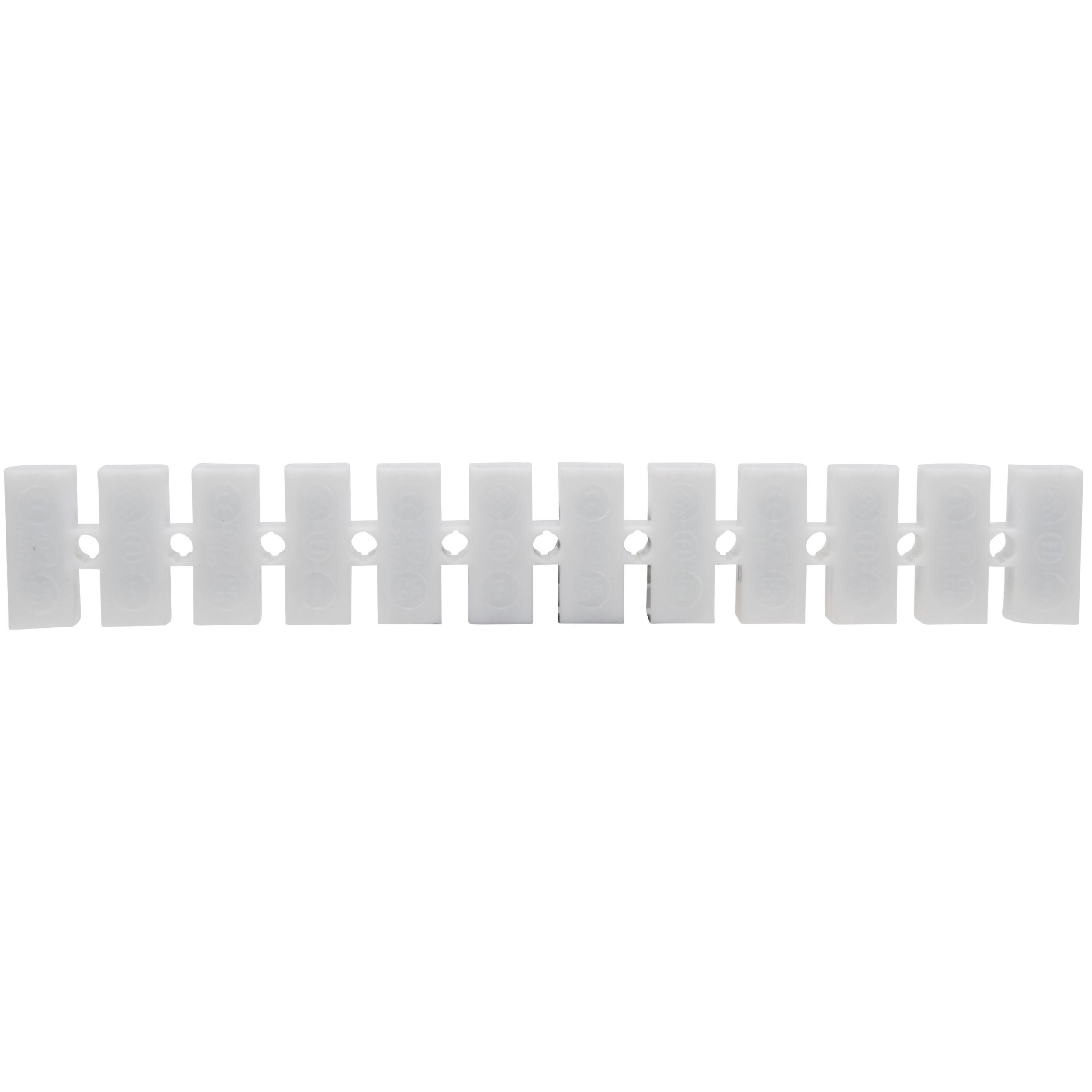

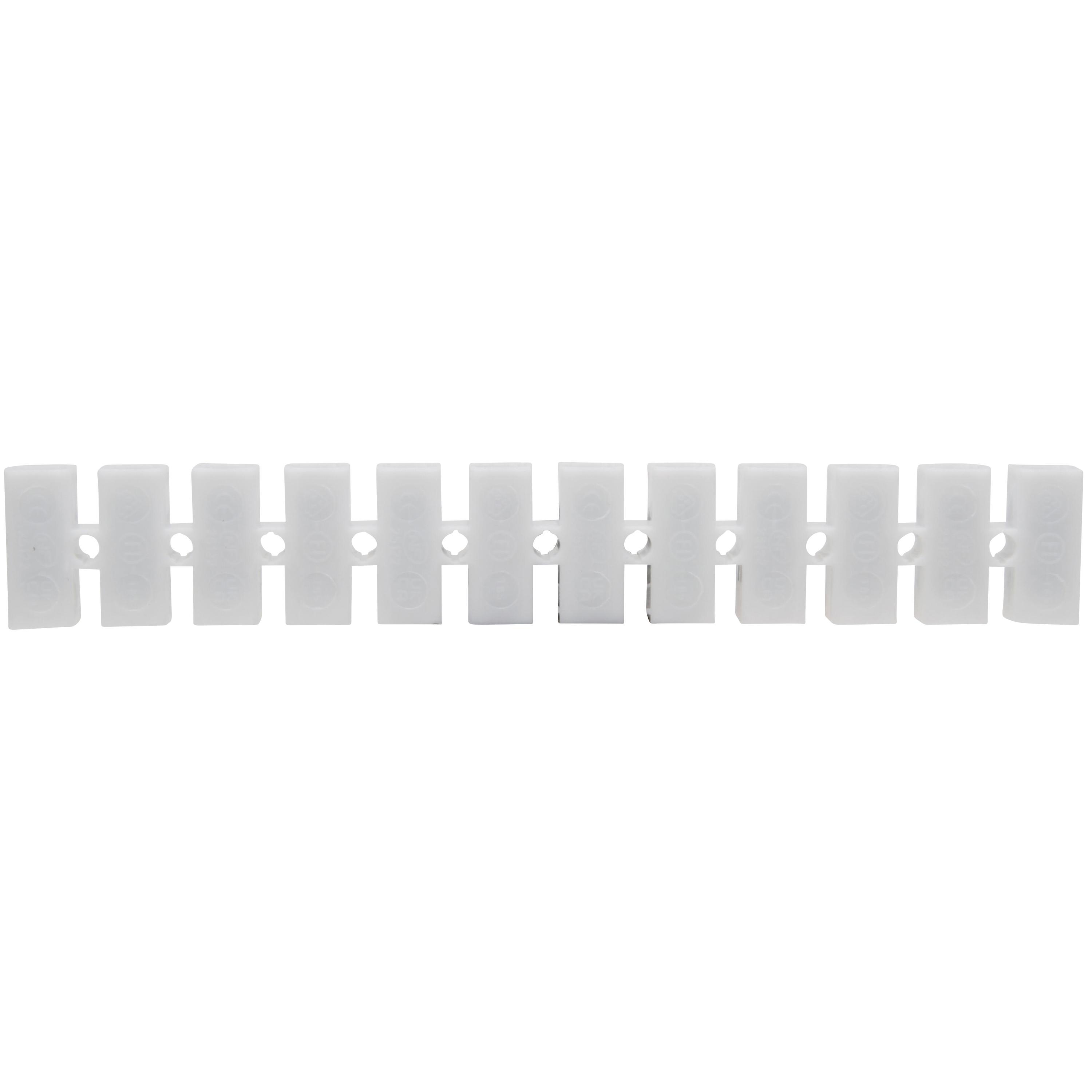

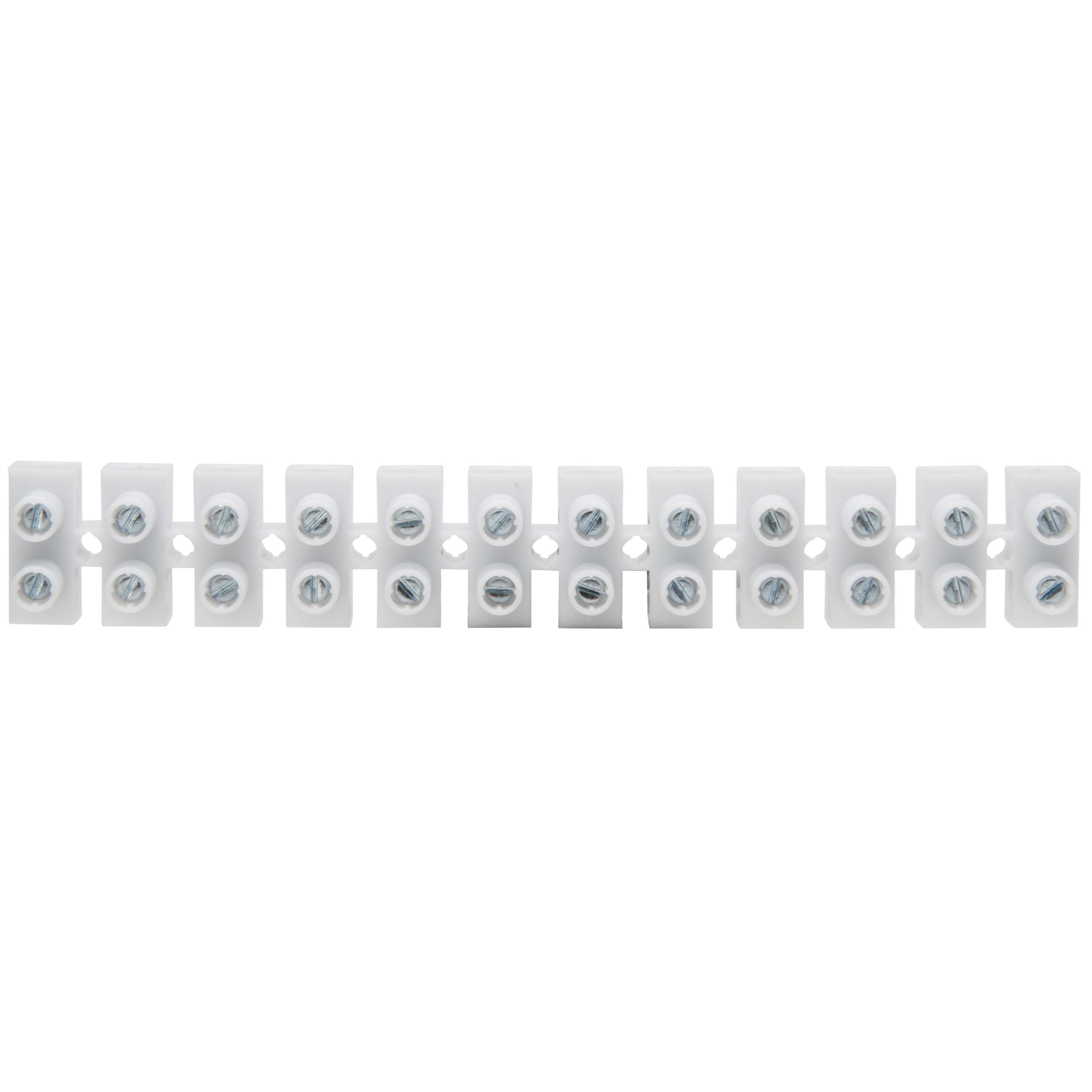

Terminal strip, 12-pole, 4-16mm², white, contents: 2 pcs.
Terminal strip, 12-pole, white, 4-16mm² solid wires, 4–10mm² rigid stranded and 4–6mm² flexible wires, wire stripping length: 8,5-9,5mm, 450V, material terminal housing: PP, inserts: tinned steel, screws: galvanized steel
| Characteristic | Value |
|---|---|
| Article Nr | 345000088 |
| PU | 10 |
| EAN | 4008224337663 |
| Closing plate required | no |
| Connectable conductor cross section solid-core | 4,00 – 16,00 mm² |
| Connectable conductor cross section multi-wired | 4,00 – 10,00 mm² |
| Number of clamp positions per pole | 2 |
| Type of electrical connection 1 | Screw connection |
| Rated voltage | 450 V |
| Rated current In | 76,00 A |
| Inflammability class of insulation material according to with UL94 | V2 |
| Explosion-tested version 'Ex e' | no |
| Colour | White |
| Height | 20,7 mm |
| Mounting method | Other |
| Number of poles | 12 |
| Depth | 25,0 mm |
| Transparent | no |
| Material insulation body | Other |
| Netzstecker - Typbezeichnung | ohne |
