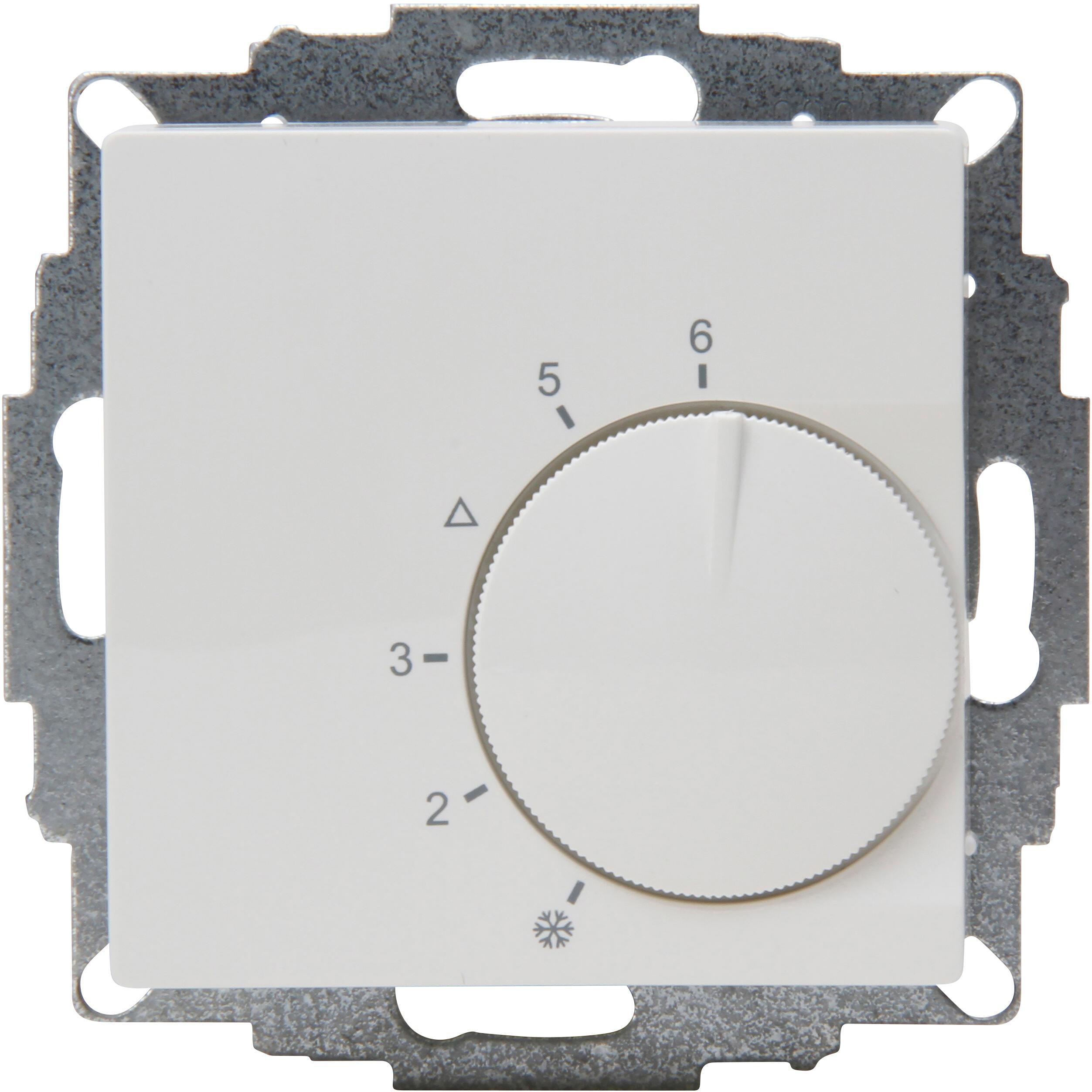

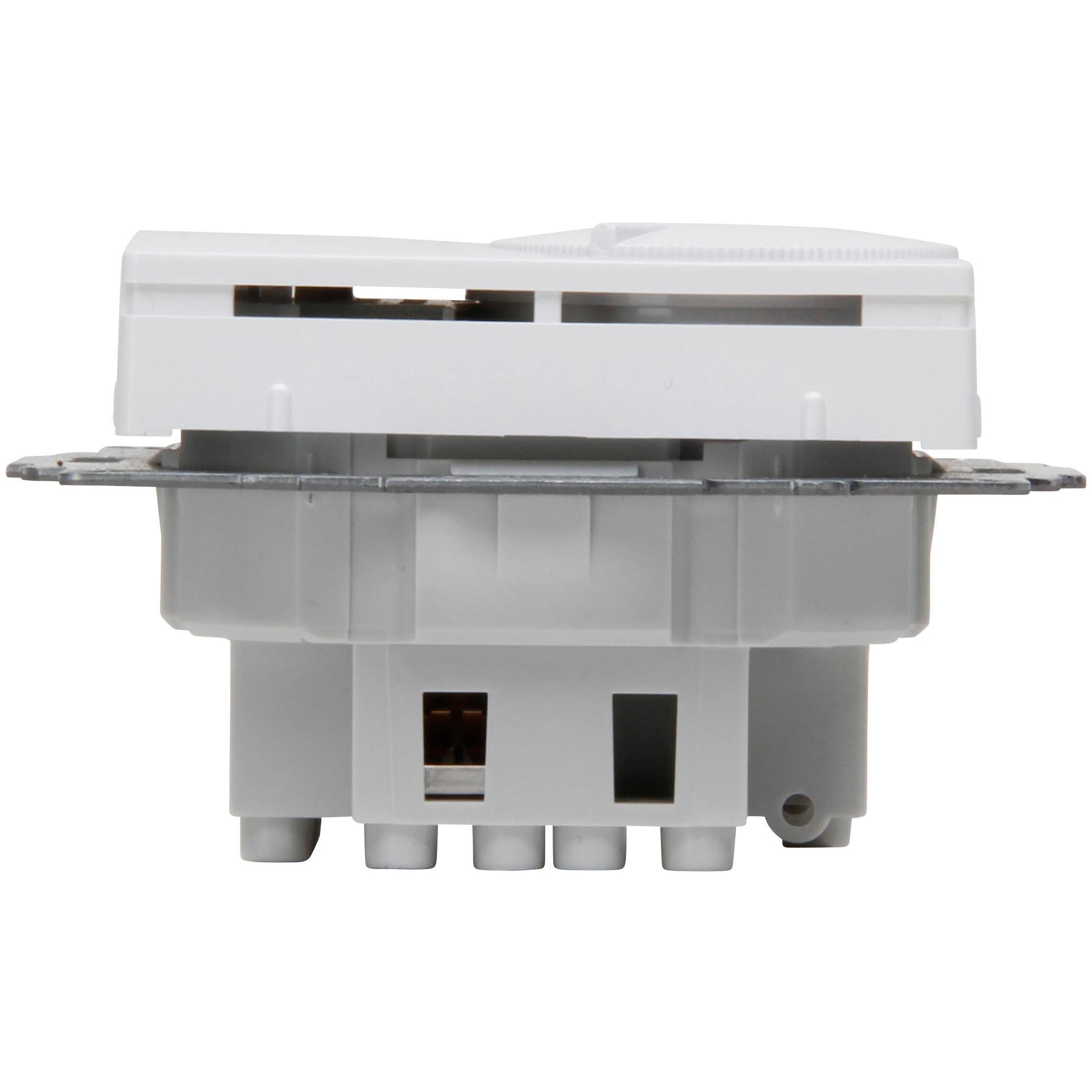

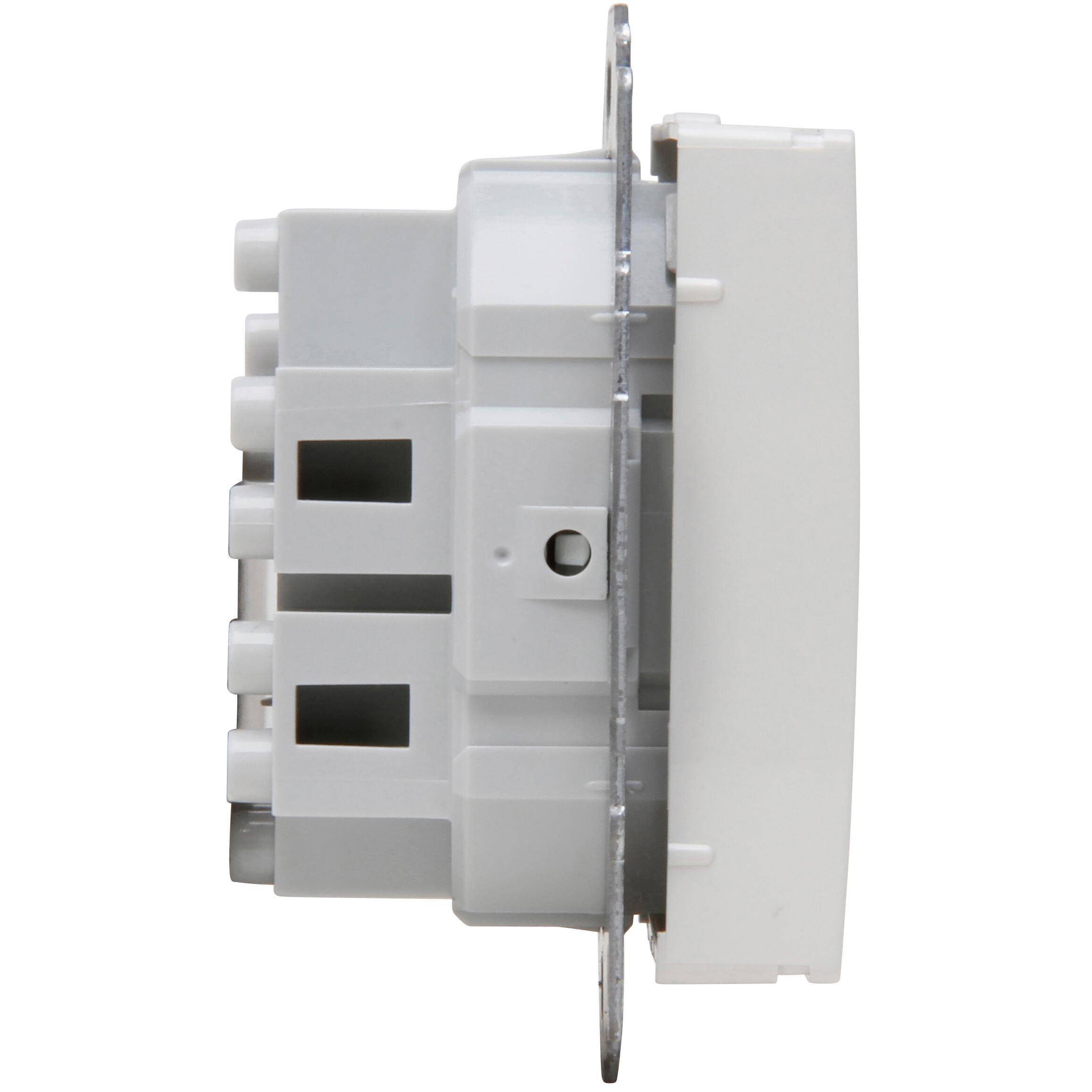

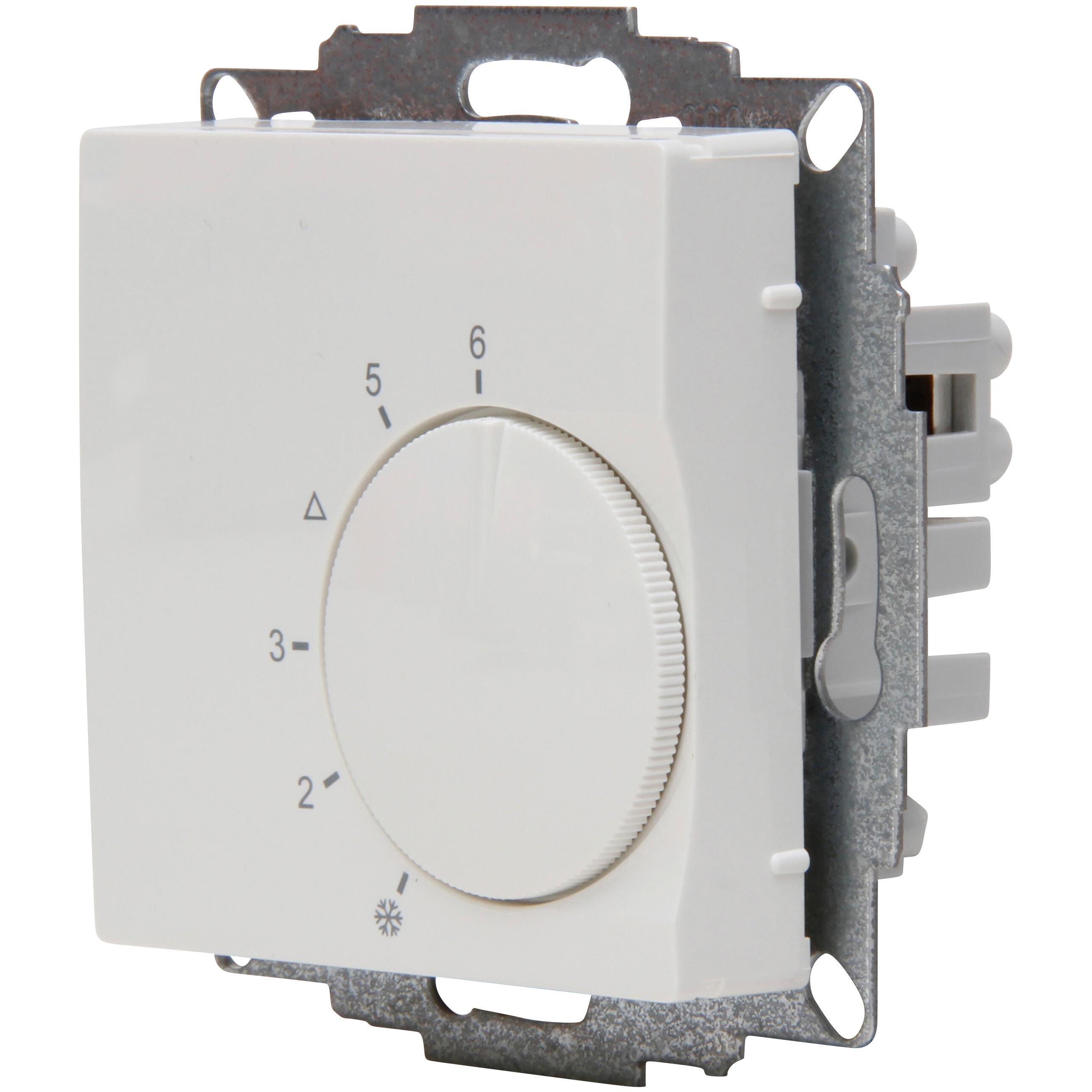

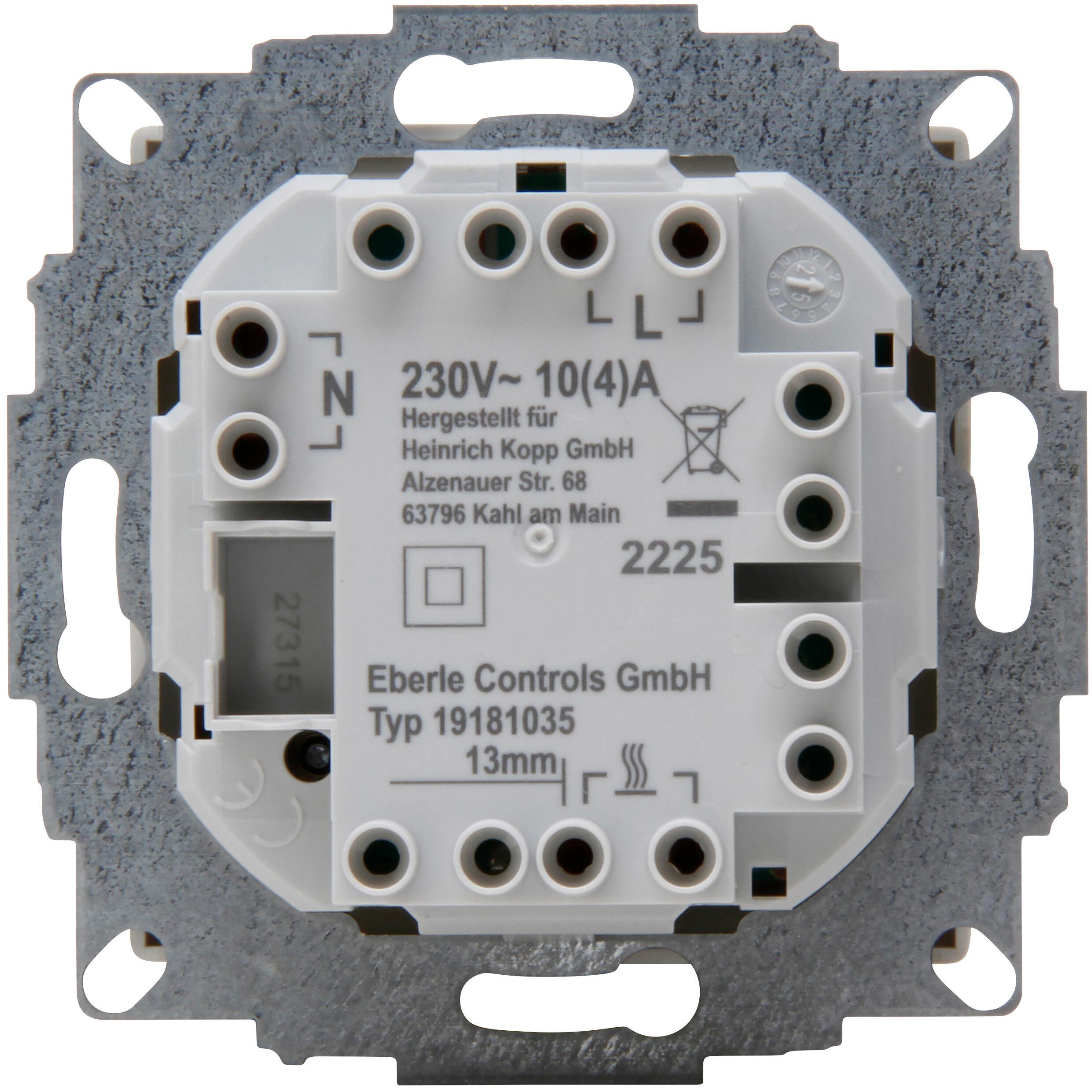

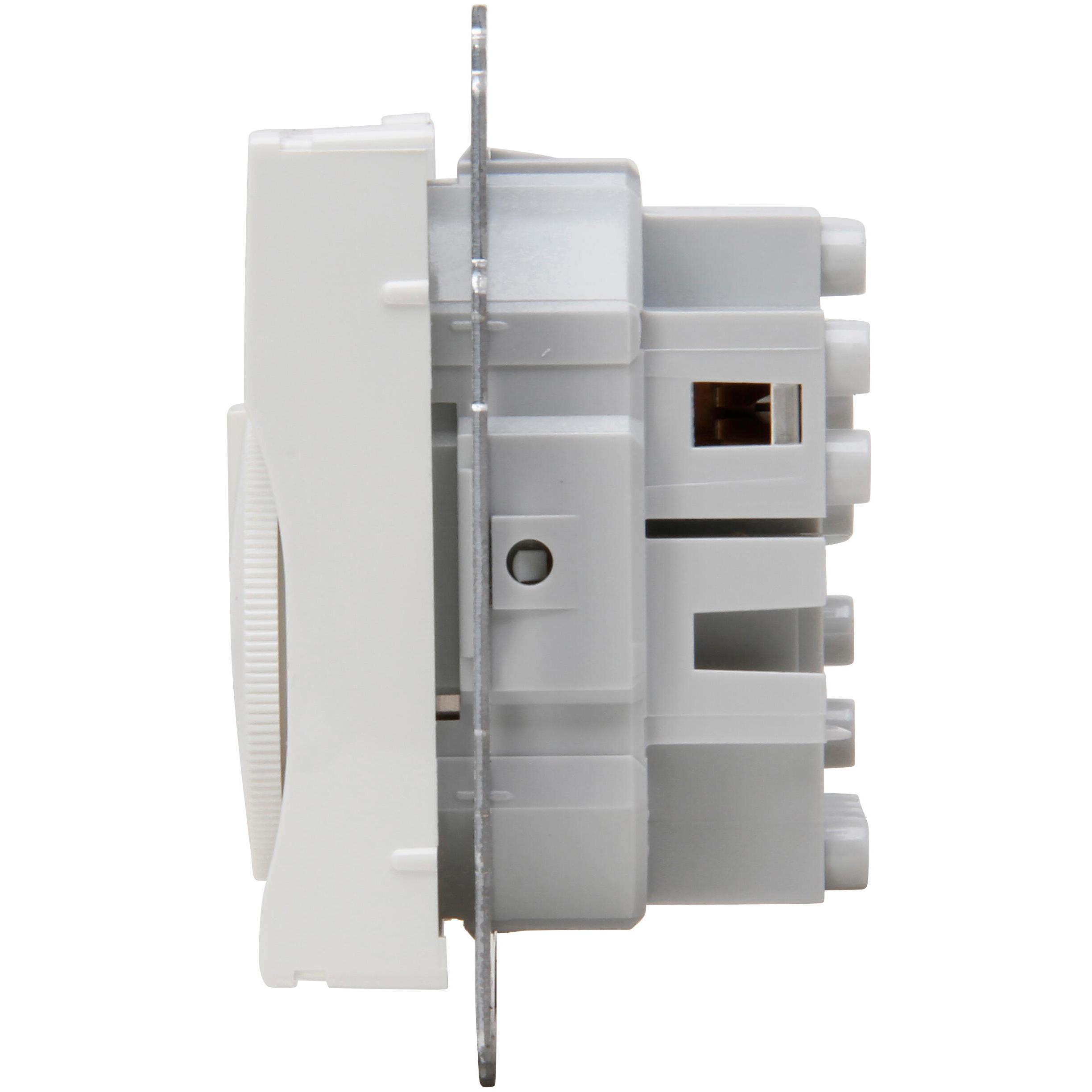

HK07 – room temperature controller “NC contact”, 2.300 W, colour: pure white
HK07 – room temperature controller “NC contact”, temperature range +5°C to +30°C, switches off the heater when the setpoint temperature is exceeded, 10(4)AX, rated voltage 230V~, 2300W, can be combined with switch range HK07, colour: pure white
| Characteristic | Value |
|---|---|
| Article Nr | 298329009 |
| PU | 1 |
| EAN | 4008224681322 |
| Connection | 3-wire |
| Number of heater outputs | 1,00 |
| Number of cooler outputs | 0 |
| Number of modules (module system) | 0 |
| Type of power supply | 230 V AC |
| Model | on/off |
| Sensor/feeler type | Bimetal |
| Operation | Turn |
| Width | 71,0 mm |
| Adjustable differential | ja |
| Differential value | 1,00 – 30,00 K |
| Diameter | 71,0 mm |
| Explosion-proof | no |
| Colour | pure-white |
| Farbe (Kopp-Bezeichnung) | pure white |
| Suitable for heating | yes |
| Suitable for cooling | nein |
| Height | 17,0 mm |
| IFTTT support available | no |
| Class of the temperature control | I |
| Compatible with Amazon Alexa | no |
| Compatible with Apple HomeKit | no |
| Compatible with Google Assistant | no |
| Contact type | Breaker contact (NC) |
| Max. contact load | 10,00 A |
| Max. contact voltage | 230,00 V |
| Measuring range | 5 – 30 °C |
| With display | no |
| With receiver | no |
| With sound indicator | nein |
| With tap water circuit | nein |
| Mounting method | Flush mounted (plaster) |
| RAL-number | 9010 |
| Control characteristic | Other |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | Other |
| External sensor | nein |
| Temperature readable | no |
| Thermal feedback | Serie |
| Depth | 25,0 mm |
| Concealed operation | no |
| Netzstecker - Typbezeichnung | ohne |
