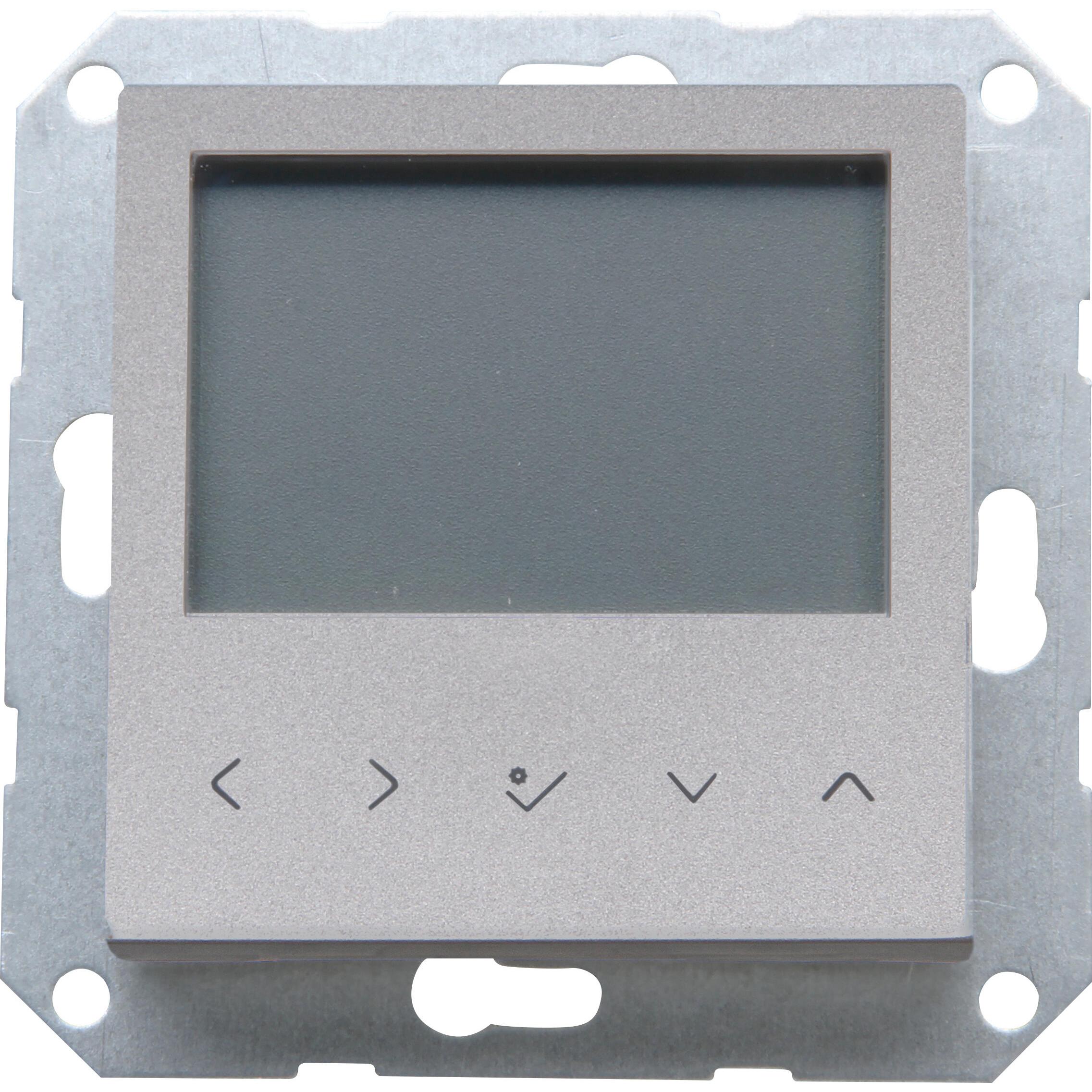

HK07 – Room thermostat with display, programmable, colour: steel
HK07 – Room thermostat with display, max. switching capacity 0.5A, 230V~, 1.8W, 50Hz, temperature setting range 5°C- 30°C and programmable temperature reduction, protection class IP30, colour: steel
| Characteristic | Value |
|---|---|
| Article Nr | 298147005 |
| PU | 1 |
| EAN | 4008224667265 |
| Connection | 3-wire |
| Number of heater outputs | 1,00 |
| Number of cooler outputs | 1 |
| Number of modules (module system) | 0 |
| Type of power supply | 230 V AC |
| Model | on/off |
| Sensor/feeler type | Resistance sensor |
| Operation | Turn |
| Width | 55,0 mm |
| Adjustable differential | ja |
| Diameter | 55,0 mm |
| Explosion-proof | no |
| Colour | steel |
| Suitable for heating | yes |
| Suitable for cooling | ja |
| Height | 55,0 mm |
| IFTTT support available | no |
| Class of the temperature control | II |
| Compatible with Amazon Alexa | no |
| Compatible with Apple HomeKit | no |
| Compatible with Google Assistant | no |
| Contact type | Change-over contact (NO/NC) |
| Max. contact load | 0,50 A |
| Max. contact voltage | 230,00 V |
| Measuring range | 0 – 40 °C |
| With display | yes |
| With sound indicator | nein |
| With tap water circuit | nein |
| Mounting method | Flush mounted (plaster) |
| RAL-number | 9022 |
| Control characteristic | PID |
| Degree of protection (IP) | IP30 |
| Degree of protection (NEMA) | 1 |
| External sensor | ja |
| Temperature readable | yes |
| Thermal feedback | ohne |
| Depth | 46,0 mm |
| Concealed operation | no |
| Netzstecker - Typbezeichnung | ohne |
