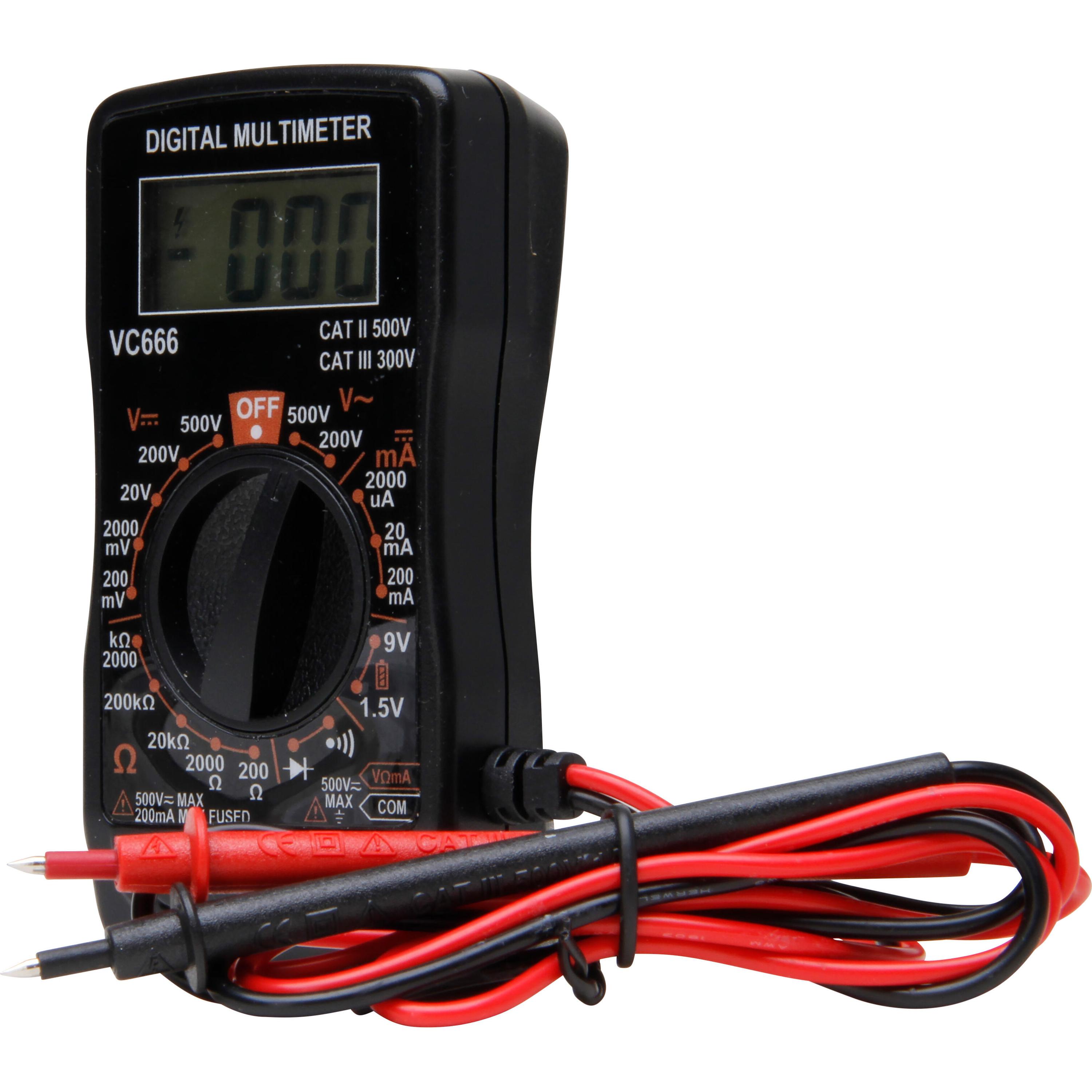

Digital Multimeter, 7 functions
Digital Multimeter 7 functions Display:15×32mm LCD DC Voltage: 200m/2/20/200/300V ± 0.8% AC Voltage 200/300V ± 1.2% DC Current: 2m/20m/200mA ± 1.0% Resistance: 200/2K/20K/200K/2MΩ ± 1.0% Diode Test: Test Current 0.80mA Test voltage 3VBattery test: 1.5V/9V± 1.0% Signal Generator:50Hz square wave Power: CR2032-3V required
| Characteristic | Value |
|---|---|
| Article Nr | 196402109 |
| PU | 3 |
| EAN | 4008224650311 |
| Indication | Digital |
| Bluetooth interface | no |
| Rotational speed measuring | no |
| Continuity test | no |
| Resistance test/diode test | yes |
| True RMS measurement | no |
| Explosion-tested version | no |
| Frequency measurement | no |
| Inductance measurement | no |
| IR interface | no |
| Cable length measurement | no |
| Capacitance measurement | no |
| Lowest resolution, DC current | 1 µA |
| Lowest resolution, AC voltage | 100 mV |
| Lowest resolution, resistance | 0.1 Ohm |
| Power and energy measurement | no |
| With conductivity measurement | no |
| Cable symmetry testing for two wire connections a-b-E | no |
| Max. voltage measuring circuit category | 300 V |
| Max. voltage measuring range, AC | 500 V |
| Max. current measuring range, DC | 0,20 A |
| Max. resistance measuring range | 2 MOhm |
| Max. value storage | no |
| Multiple display | no |
| Measuring range selection | Manual |
| Measuring circuit category | CAT III |
| Measured value memory | no |
| Milliohm measurement with 4 wire technique (Kelvin connection) | no |
| Min. value storage | no |
| With decibel measurement (dB) | no |
| Nominal test voltage 10 V | no V |
| Nominal test voltage 100 V | no V |
| Nominal test voltage 1000 V | no V |
| Nominal test voltage 250 V | no V |
| Nominal test voltage 50 V | no V |
| Nominal test voltage 500 V | no V |
| Harmonics analysis/power quality | no |
| Relative value measurement | no |
| Peak value memory | no |
| Duty cycle measurements | no |
| Temperature measurement RTD | no |
| Temperature measurement TC | no |
| Netzstecker - Typbezeichnung | ohne |
