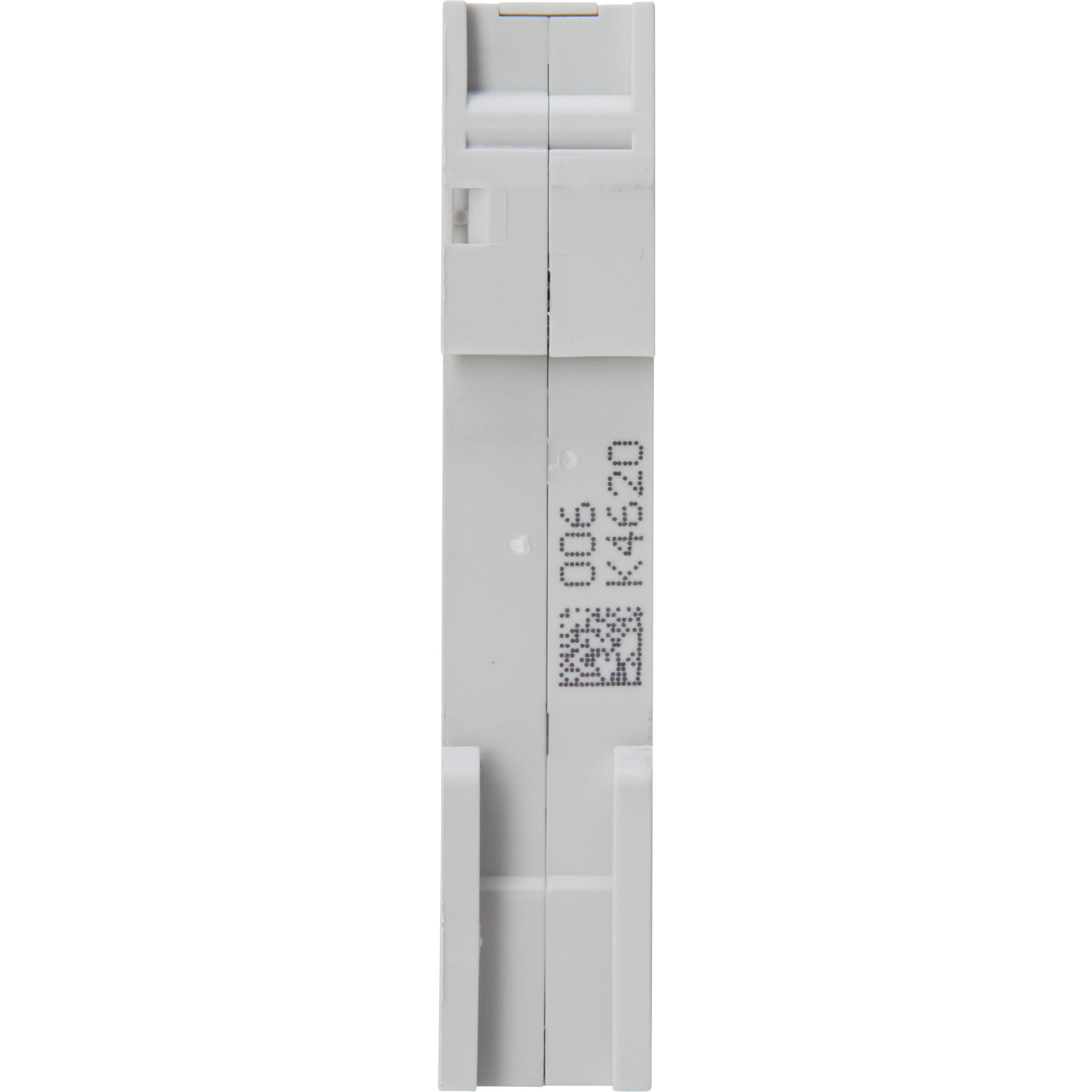

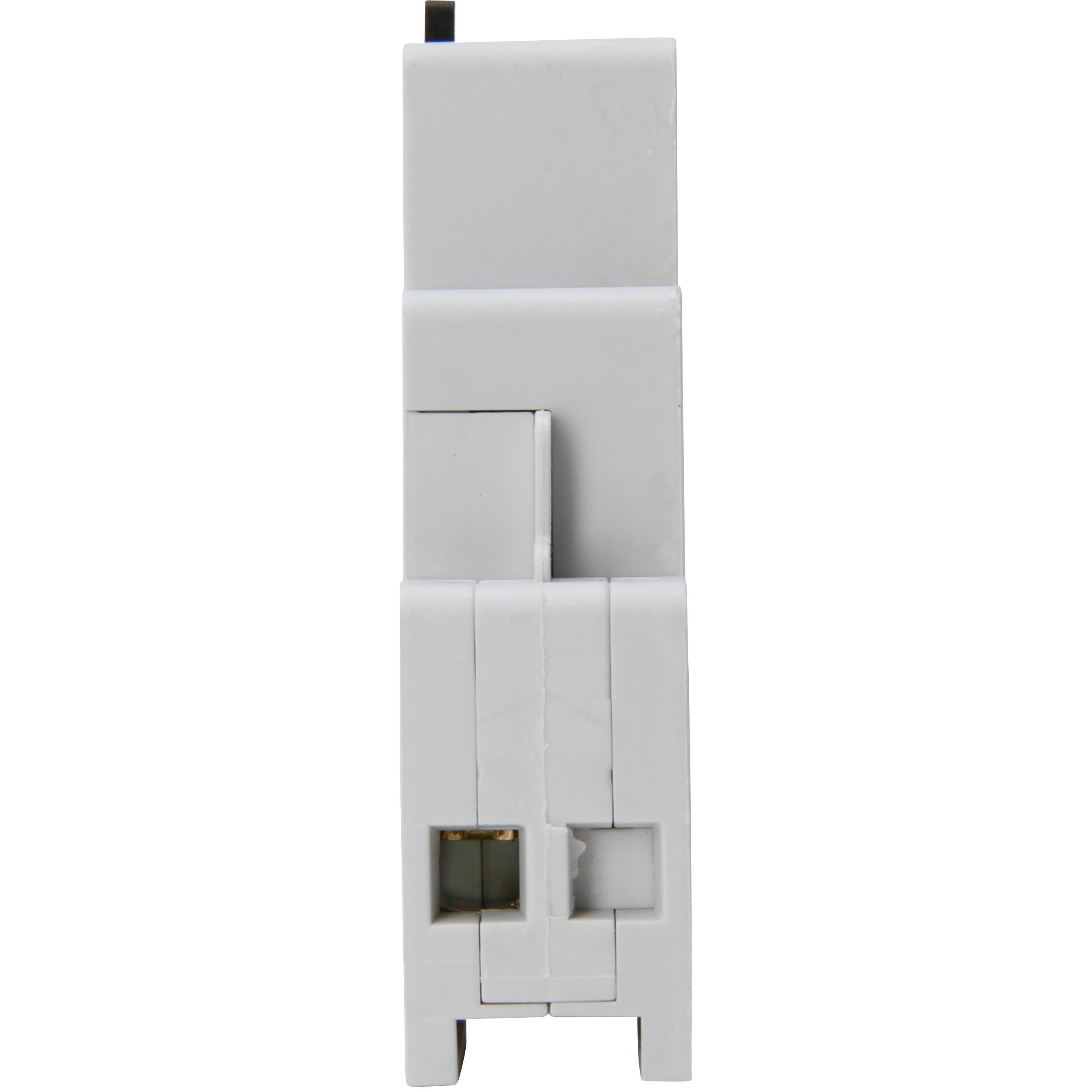

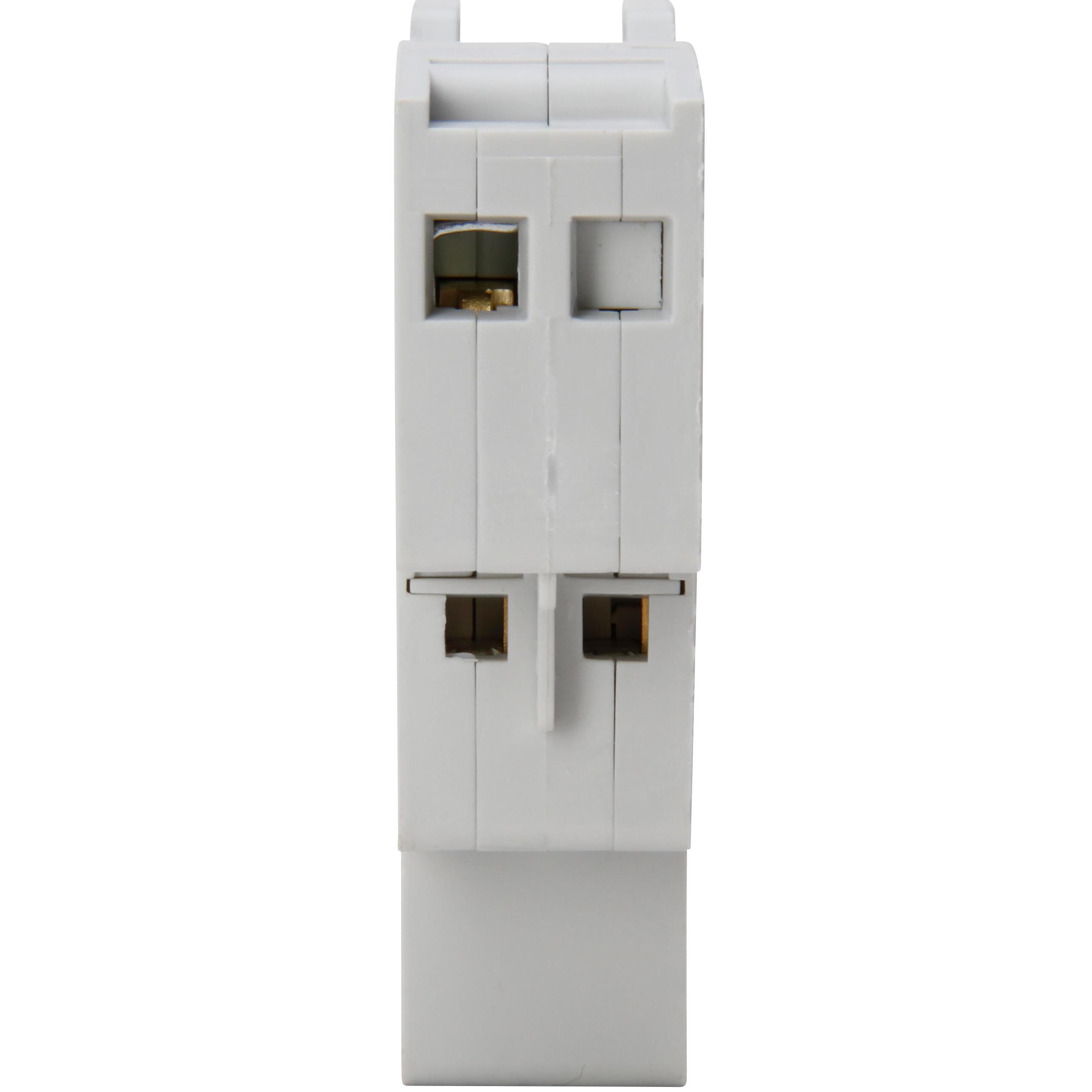

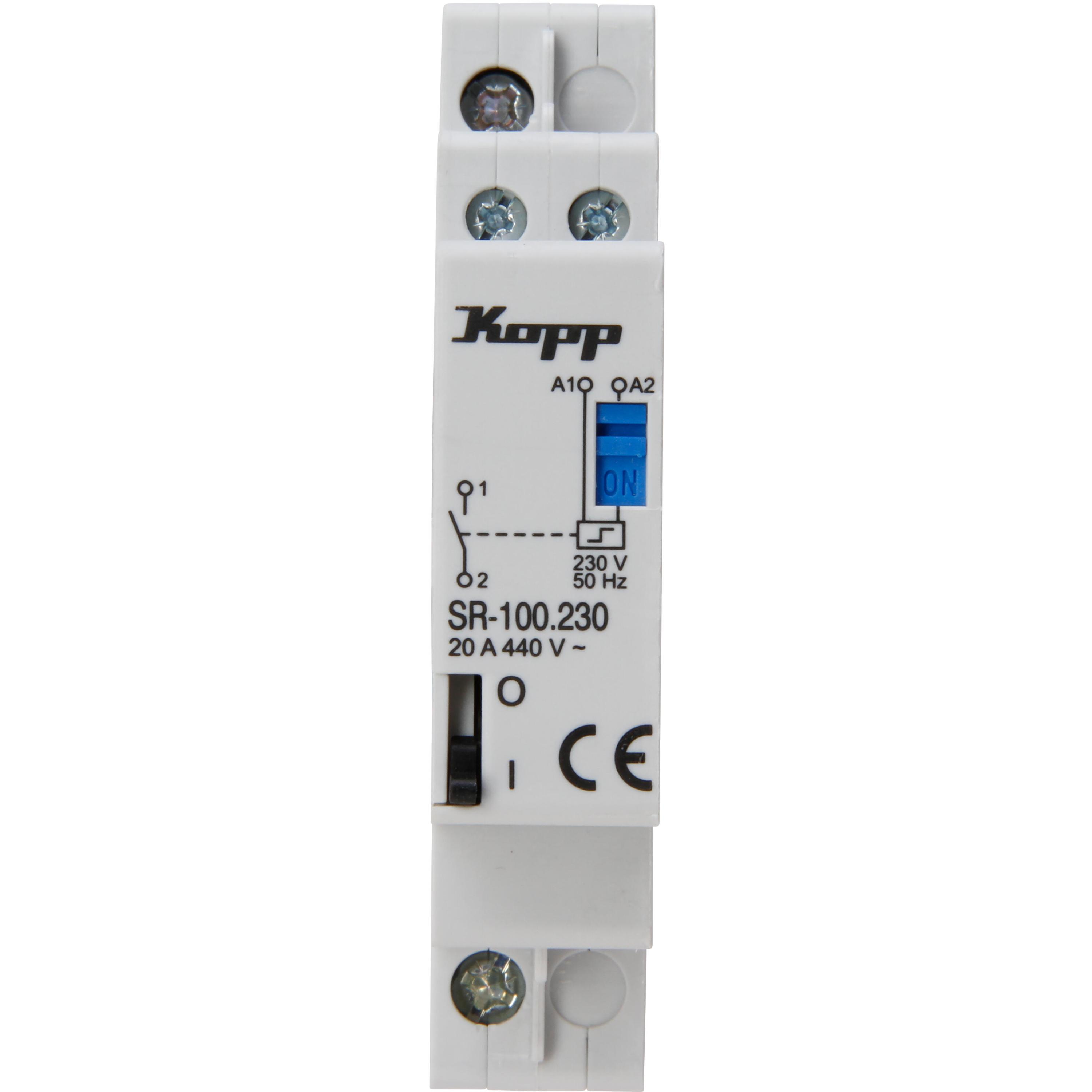

Impulse relay, for installation in distribution boxes
Impulse ralay, 20A, 250V~, for installation in distribution boxes
| Characteristic | Value |
|---|---|
| Article Nr | 191600005 |
| PU | 5 |
| EAN | 4008224514637 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Rated switch current | 20,00 A |
| Width in number of modular spacings | 1 |
| Built-in depth | 65,0 mm |
| Frequency control voltage 1 | 50 – 50 Hz |
| Frequency control voltage 2 | 0 – 0 Hz |
| Function | Electronic switch |
| Suitable for manual operation | yes |
| Max. incandescent lamp load | 4400 W |
| Max. load fluorescent lamp | 4400 VA |
| Max. load fluorescent lamp (Duo circuit) | 0 VA |
| Max. load fluorescent lamp (parallel compensated) | 0 VA |
| Max. switching current (cos phi = 0.6) | 20 A |
| Mounting method | DIN rail |
| Voltage type of supply voltage | AC |
| Control voltage 1 | 230 – 230 V |
| Control voltage 2 | 0 – 0 V |
| Type of control voltage 1 | AC |
| Type of control voltage 2 | AC |
| Supply voltage | 230 – 230 V |
| Netzstecker - Typbezeichnung | ohne |
