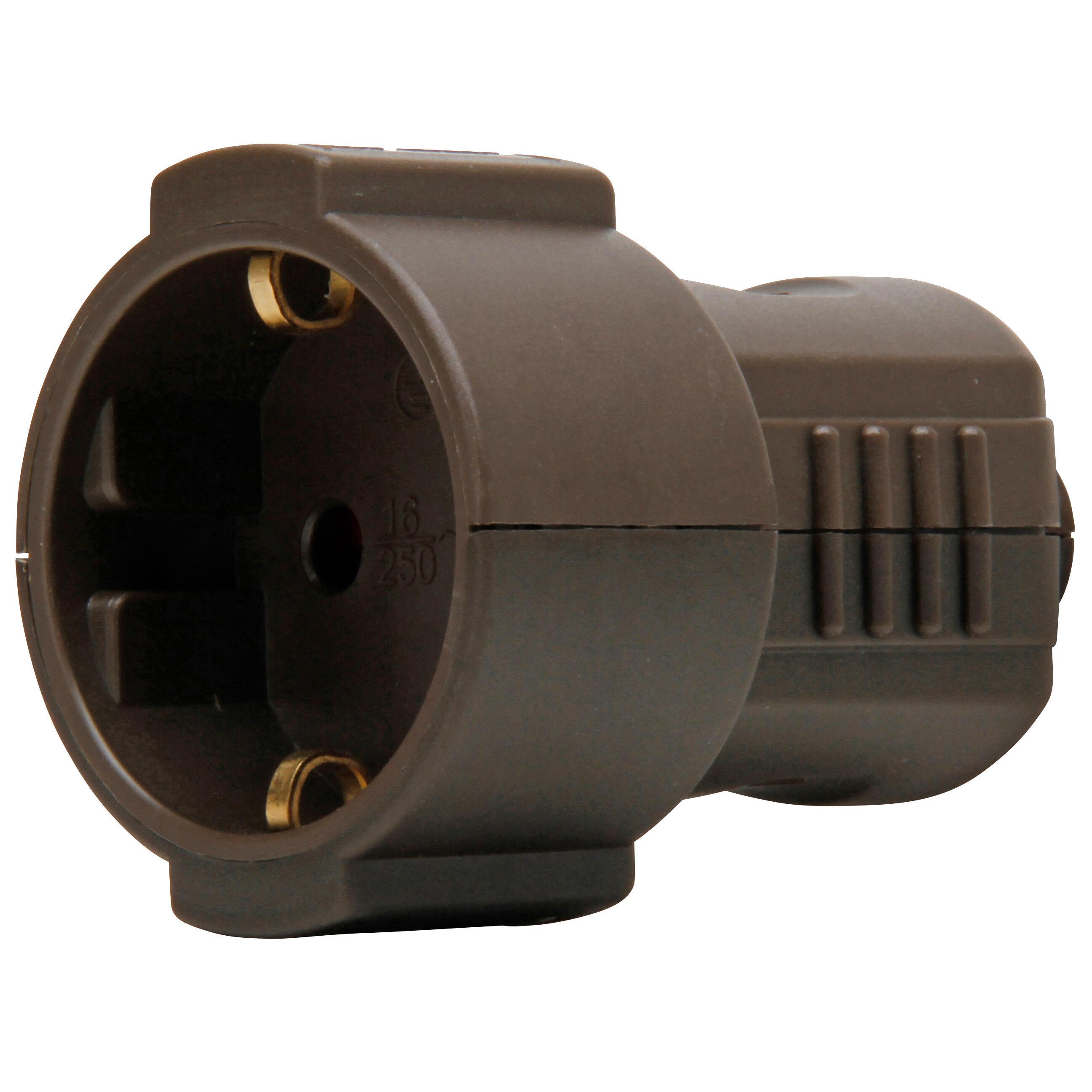

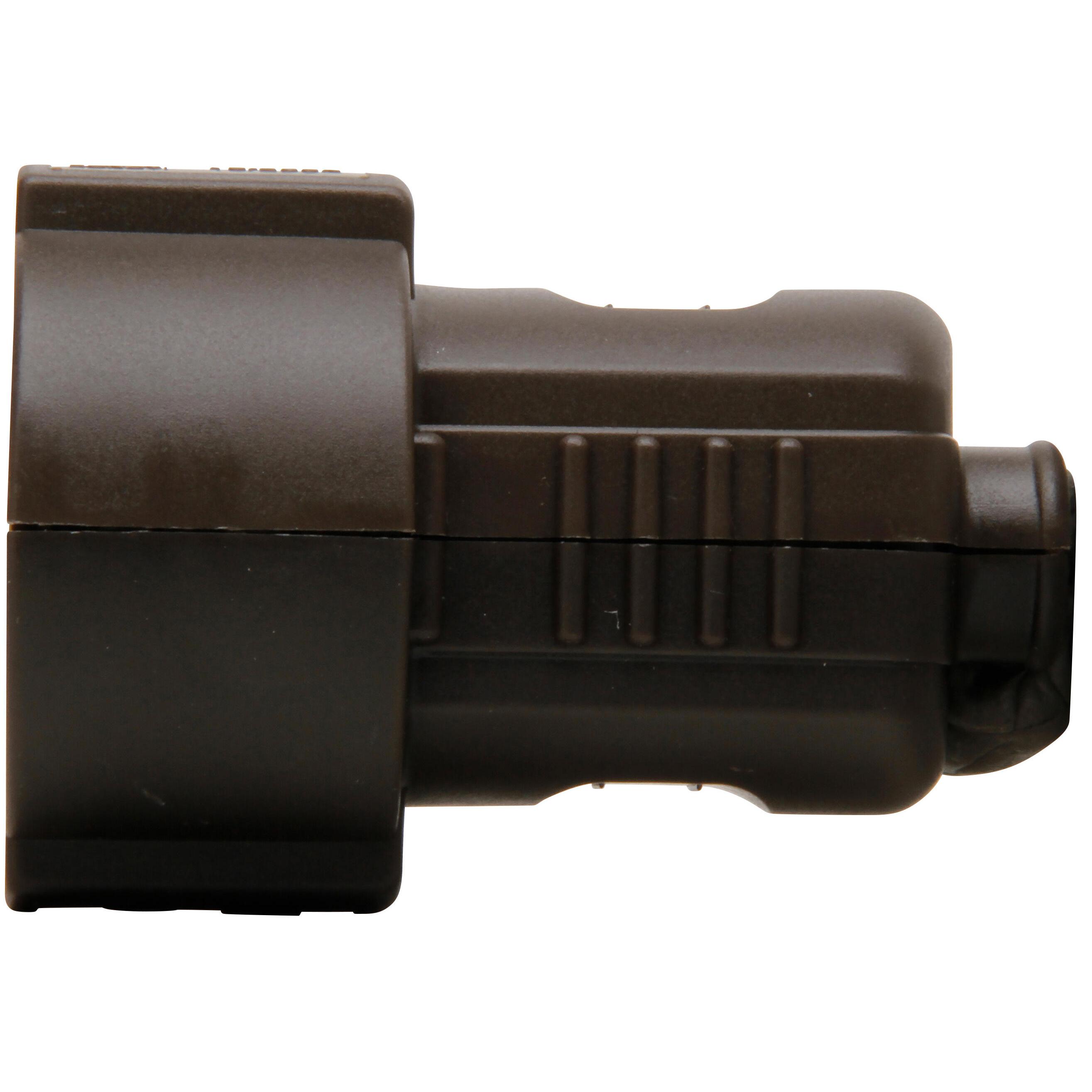

Plastic protective contact shell coupling, break-proof, for cable cross-section up to cable cross-section up to 3×1.5mm², colour: brown
Plastic protective contact shell coupling, break-proof, for cable cross-section up to cable cross-section up to 3×1.5mm², 16A, 250V~, protection class IP20, colour: brown
| Characteristic | Value |
|---|---|
| Article Nr | 183206107 |
| PU | 5 |
| EAN | 4008224687829 |
| Connection system | Screwed terminal |
| Colour | brown |
| For heavy conditions (according to VDE) | no |
| Suitable for protective contact pin | no |
| Halogen free | yes |
| With quick-lock | nein |
| With voltage indication | nein |
| NEMA designation | unknown |
| Nominal voltage | 230 V |
| Nominal current | 16,00 A |
| Number of poles | 2 |
| Degree of protection (IP) | IP20 |
| Angle of plug | Straight |
| Material | Plastic |
