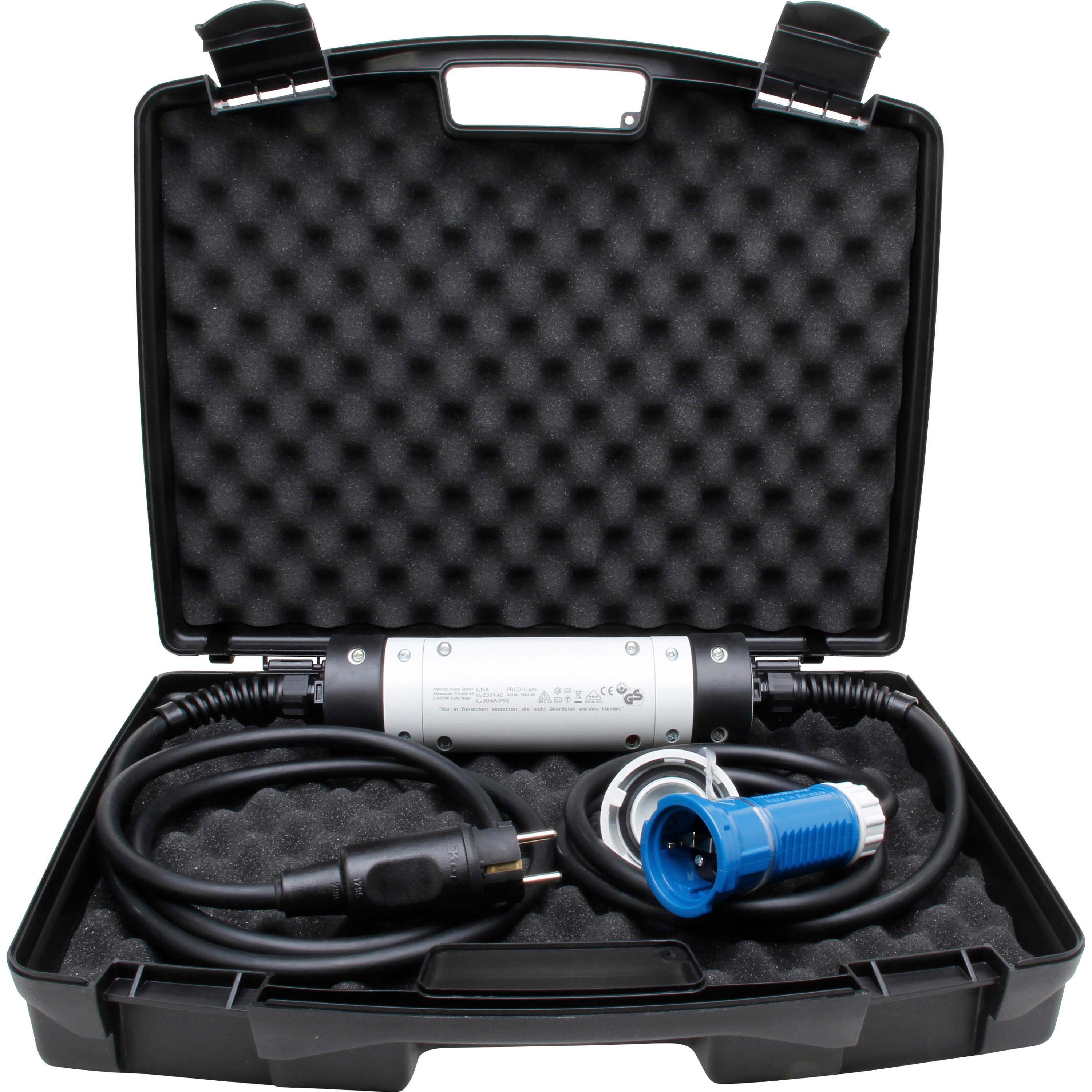

PRCD-S pro, portable protective device, 3-pole, 0.03A, with extension and carrying case, plug (IP44) and coupling (IP68) for fire departments
PRCD-S pro, with protective conductor monitoring, 3-pole switching, rated residual current 0.03A, type A, 230V, 16A, 50Hz, IP55, in solid case, plug IP44, coupling 1-fold IP68, cable lengths: plug – PRCD-S pro=150cm, plug – coupling=300cm, cable: H07RN-F3G2,5mm², for fire departments
| Characteristic | Value |
|---|---|
| Article Nr | 148605019 |
| PU | 1 |
| EAN | 4008224677318 |
| Connectable conductor cross section multi-wired | 1,50 – 2,50 mm² |
| Rated fault current | 0,03 A |
| Rated insulation voltage Ui | 1500 V |
| Rated voltage | 230 V |
| Rated impulse withstand voltage Uimp | 2,50 kV |
| Rated current | 16,00 A |
| Explosion-proof | no |
| Leakage current type | A |
| Frequency | 50 Hz |
| Short-circuit breaking capacity (Icw) | 1,500 kA |
| Short-time delayed tripping | no |
| With interlocking device | no |
| Mounting method | Cable |
| Number of poles | 3 |
| Degree of protection (IP) | IP44 |
| Selective protection | no |
| Voltage type | AC |
| Surge current capacity | 0,250 kA |
| Ambient temperature during operating | -25 – 45 °C |
| Pollution degree | 2 |
| Additional equipment possible | no |
| Article width in mm (net dimension) | 64,2 mm |
| Item length in mm (net measurement) | 436,0 mm |
| Item height in mm (net measurement) | 58,5 mm |
| Netzstecker - Typbezeichnung | CEE7/4 (Typ F – Schutz-Kontakt) |
