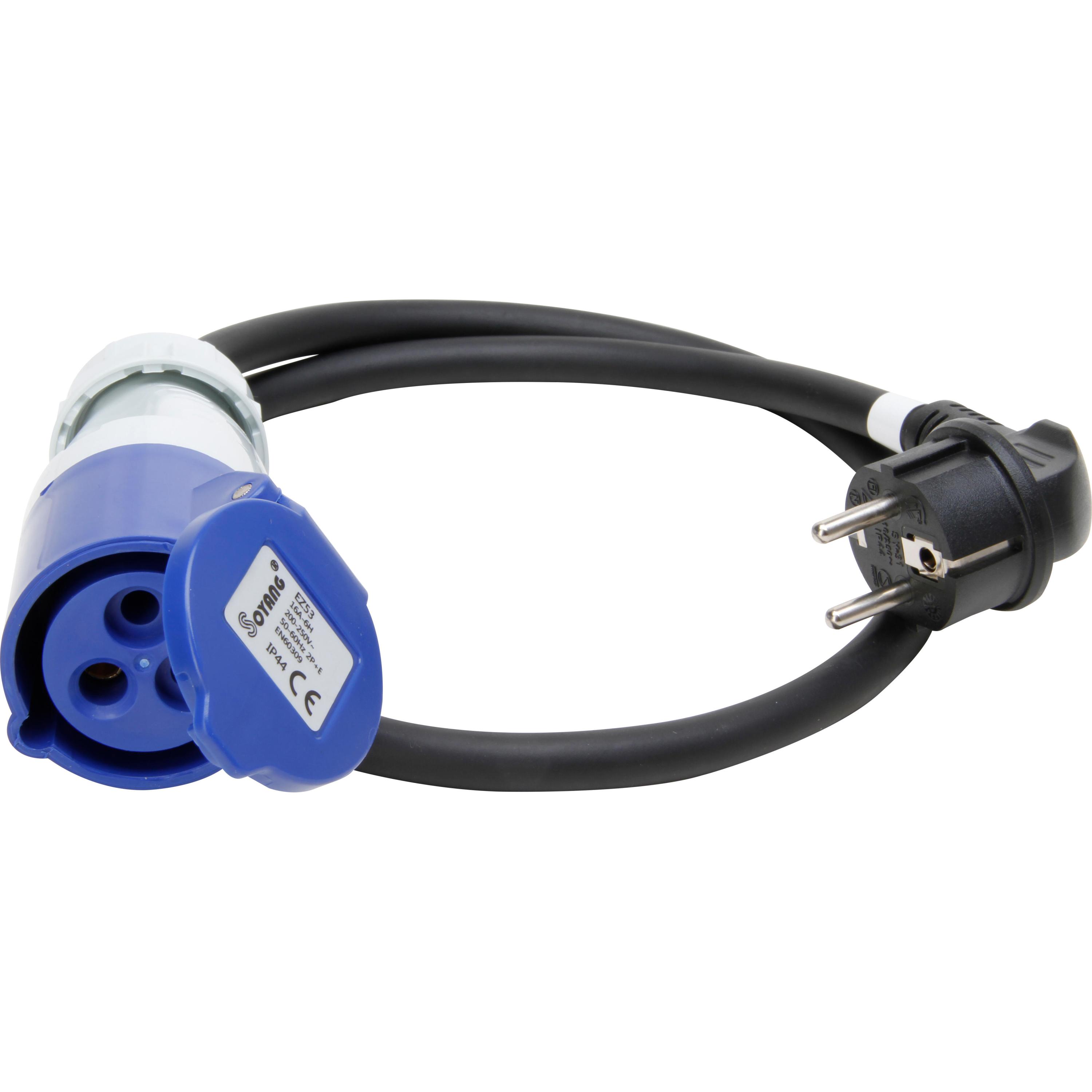

CEE to protective contact lead 3x16A, colour: blue
CEE-caravan-adapter cable, input: grounding-type plug, 16A, 250V~, output: caravan-coupling, 3-pole, 16A, 250V~, 6h cable: H 07 RN-F 3×2,5mm², 80cm long, max. 3680W, splash-proof, IP44, colour: blue
| Characteristic | Value |
|---|---|
| Article Nr | 147512002 |
| PU | 1 |
| EAN | 4008224683296 |
| Number of cores | 5 |
| Connection 1 | Protective contact plug CEE 7/4 (type F) |
| Connection 2 | CEE coupling |
| Connection type according to IEC 60320, connection 1 | sonstige |
| Connection type according to IEC 60320, connection 2 | sonstige |
| Outer diameter approx. | 2,5 mm |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | None |
| Reaction-to-fire according to EN 13501-6: Smoke production | None |
| Reaction-to-fire according to EN 13501-6: Acidity | None |
| Reaction-to-fire according to EN 13501-6: Class | None |
| Farbe (Kopp-Bezeichnung) | schwarz |
| Frequency | 50 – 50 Hz |
| Cable entry connection 1 | abgewinkelt |
| Cable entry connection 2 | gerade |
| Nominal cross section conductor | 2,50 mm² |
| Length | 800,0 mm |
| Colour outer sheath | Black |
| Material outer sheath | Rubber |
| With personal protection PRCD | geen |
| With cord switch | no |
| With protective conductor | yes |
| Nominal voltage | 230 – 400 V |
| Nominal current | 16,00 A |
| Degree of protection (IP) | IP44 |
| Spiralized cable | no |
| Connector system system-oriented | no |
| Oil resistant according to EN IEC 60811-404 | no |
| Cable length in mm | 800,0 |
| Netzstecker - Typbezeichnung | CEE |
