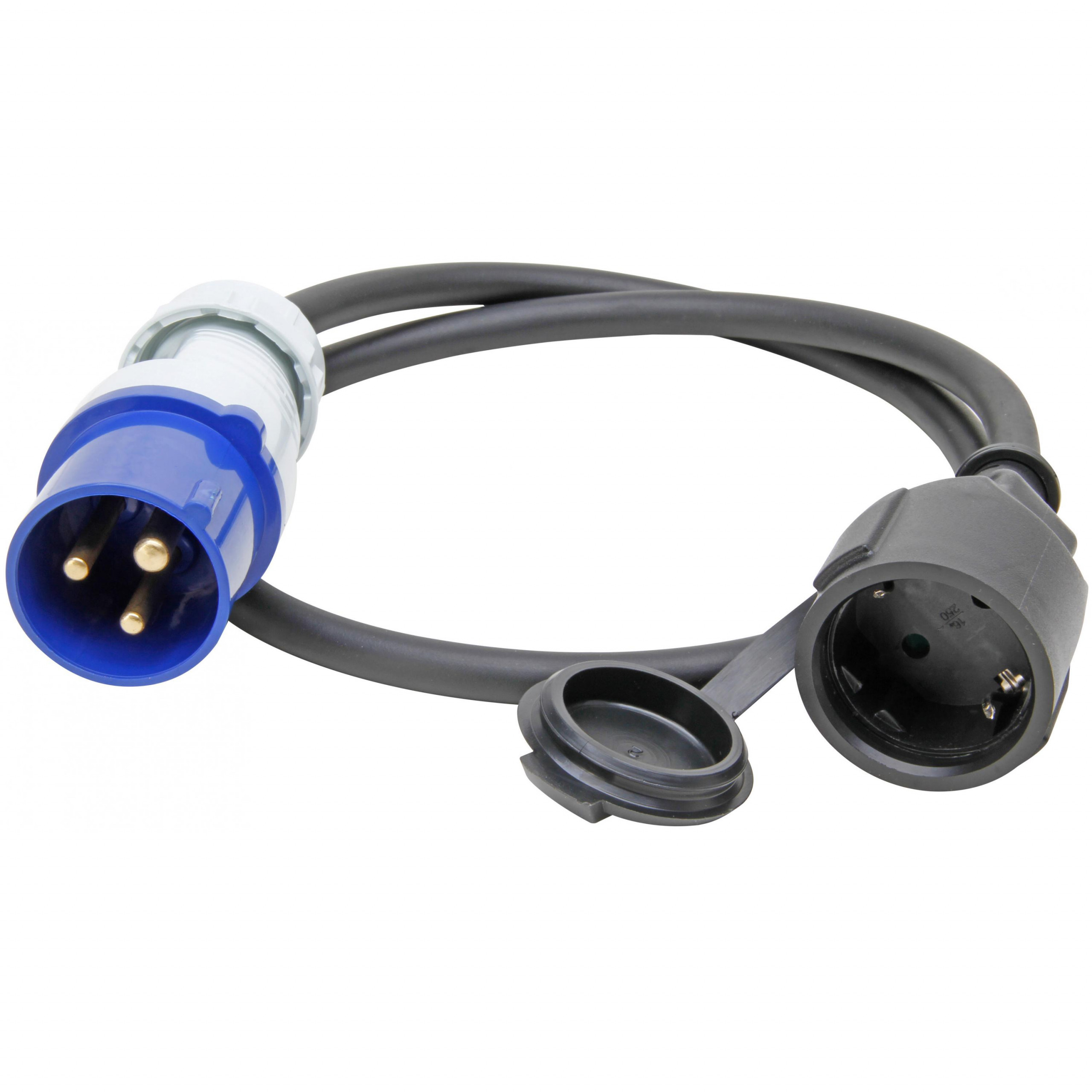

CEE – caravan adapter cable, caravan plug, 3-pole, earthing contact coupling, 16A, 250v~, colour: black
CEE caravan adapter cable, input: caravan plug, 3-pole, 16A, 250v~, 6h output: earthing contact coupling, 16A, 250V~ Cable: H 07 RN-F 3×2.5mm², 40cm, max. 3680W, protection class IP44, colour: black
| Characteristic | Value |
|---|---|
| Article Nr | 147511403 |
| PU | 1 |
| EAN | 4008224684736 |
| Number of cores | 5 |
| Connection 1 | CEE plug |
| Connection 2 | Coupler with protective contact (SCHUKO) |
| Connection type according to IEC 60320, connection 1 | sonstige |
| Connection type according to IEC 60320, connection 2 | sonstige |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | unknown |
| Reaction-to-fire according to EN 13501-6: Smoke production | unknown |
| Reaction-to-fire according to EN 13501-6: Acidity | unknown |
| Reaction-to-fire according to EN 13501-6: Class | unknown |
| Farbe (Kopp-Bezeichnung) | schwarz |
| Frequency | 50 – 50 Hz |
| Cable entry connection 1 | gerade |
| Cable entry connection 2 | gerade |
| Nominal cross section conductor | 2,50 mm² |
| Length | 400,0 mm |
| Colour outer sheath | Black |
| Material outer sheath | Rubber |
| With personal protection PRCD | geen |
| With cord switch | no |
| With protective conductor | yes |
| Nominal voltage | 230 – 230 V |
| Nominal current | 16,00 A |
| Degree of protection (IP) | IP44 |
| Spiralized cable | no |
| Connector system system-oriented | no |
| Oil resistant according to EN IEC 60811-404 | no |
| Netzstecker - Typbezeichnung | CEE |
