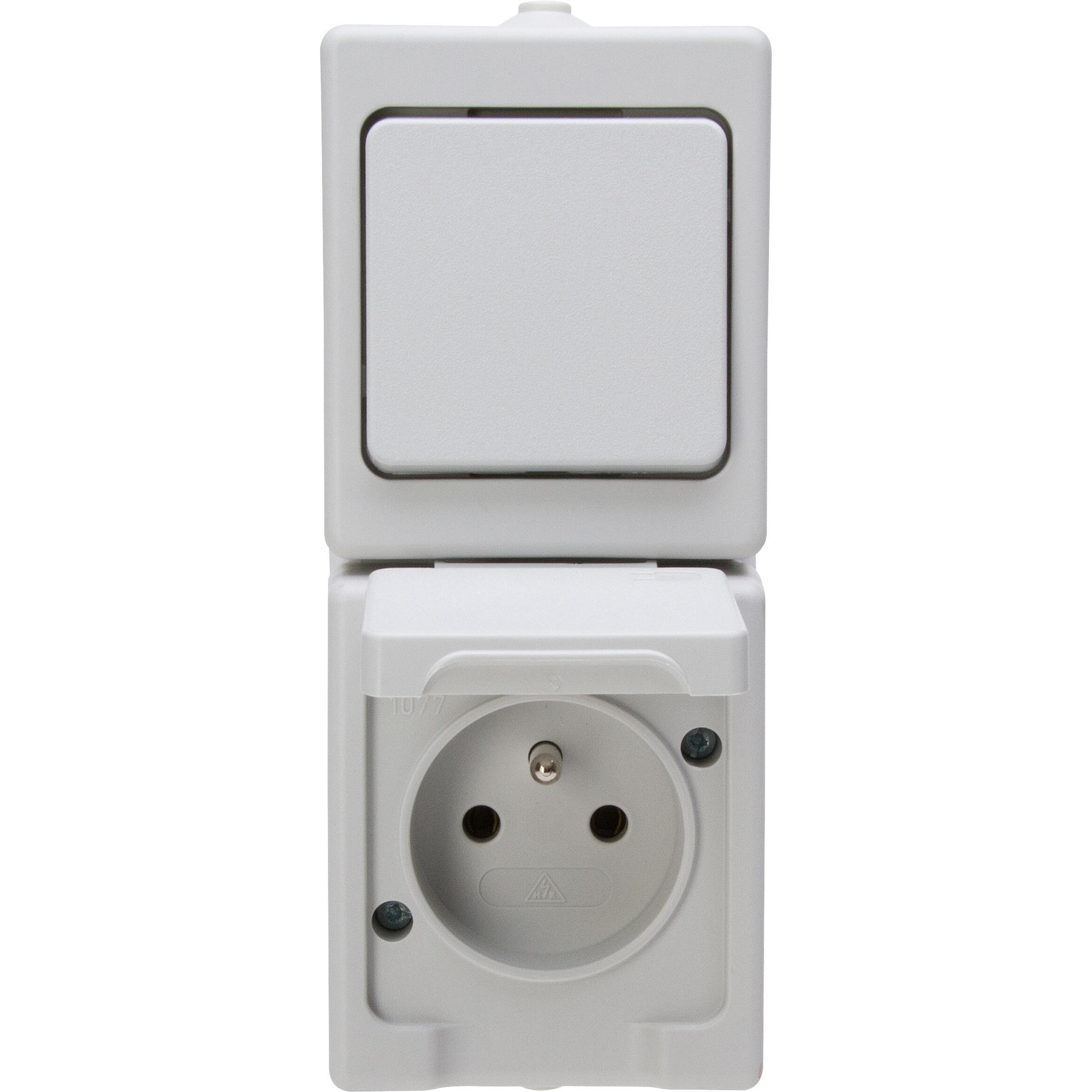

STANDARD – earthed socket outlet with central earth contact with hinged cover, 2-fold, vertical, colour: grey
STANDARD – surface-mounted socket outlet with center earthing contact, 2-fold, with hinged cover, rated current 16A, rated voltage 250V~, degree of protection IP44, without contact protection, (Eastern Europe), colour: grey
| Characteristic | Value |
|---|---|
| Article Nr | 135804007 |
| PU | 5 |
| EAN | 4008224596763 |
| Lockable | no |
| Connection type | Push-in clamp |
| Anti-bacterial treatment | no |
| Number of rockers | 0 |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Number of modules (module system) | 0 |
| Number of revolving contacts | 0 |
| Imprint | None |
| Imprint/indication | None |
| Model | 2-fold |
| Contactless type | no |
| Method of operation | Other |
| Type of fastening | Screw mounting |
| Rated current | 16,00 A |
| Colour | Grey |
| Farbe (Kopp-Bezeichnung) | grey |
| Fault current protection | no |
| Frequency | 50 – 50 Hz |
| For heavy conditions (according to VDE) | no |
| Suitable for degree of protection | IP44 |
| Width of device | 86,0 mm |
| Height of device | 55,0 mm |
| Depth of device | 101,0 mm |
| Halogen free | yes |
| IFTTT support available | no |
| Compatible with Amazon Alexa | no |
| Compatible with Apple HomeKit | no |
| Compatible with Google Assistant | no |
| Min. depth of built-in installation box | 0,0 mm |
| With lighting | no |
| With loop through function | yes |
| With built-in bluetooth speaker | nein |
| With enhanced contact protection | no |
| With miniature fuse | no |
| With function lighting | no |
| With light source | no |
| With orientation lighting | no |
| With signal lamp | no |
| Mounting method | EV000384 – Surface mounted (plaster) |
| Nominal voltage | 230 V |
| Surface protection | Untreated |
| RAL-number (similar) | 7035 |
| Feedback-signal contact | no |
| Impact strength | unknown |
| Protective contact | yes |
| Special power supply | No special power supply |
| Label space/information surface | no |
| Transparent | no |
| Rotated central insert | no |
| Material | Plastic |
| Material quality | Thermoplastic |
| Operating technology | unknown |
| Assembly arrangement | Complete device |
| Over voltage protection | no |
| Netzstecker - Typbezeichnung | ohne |
