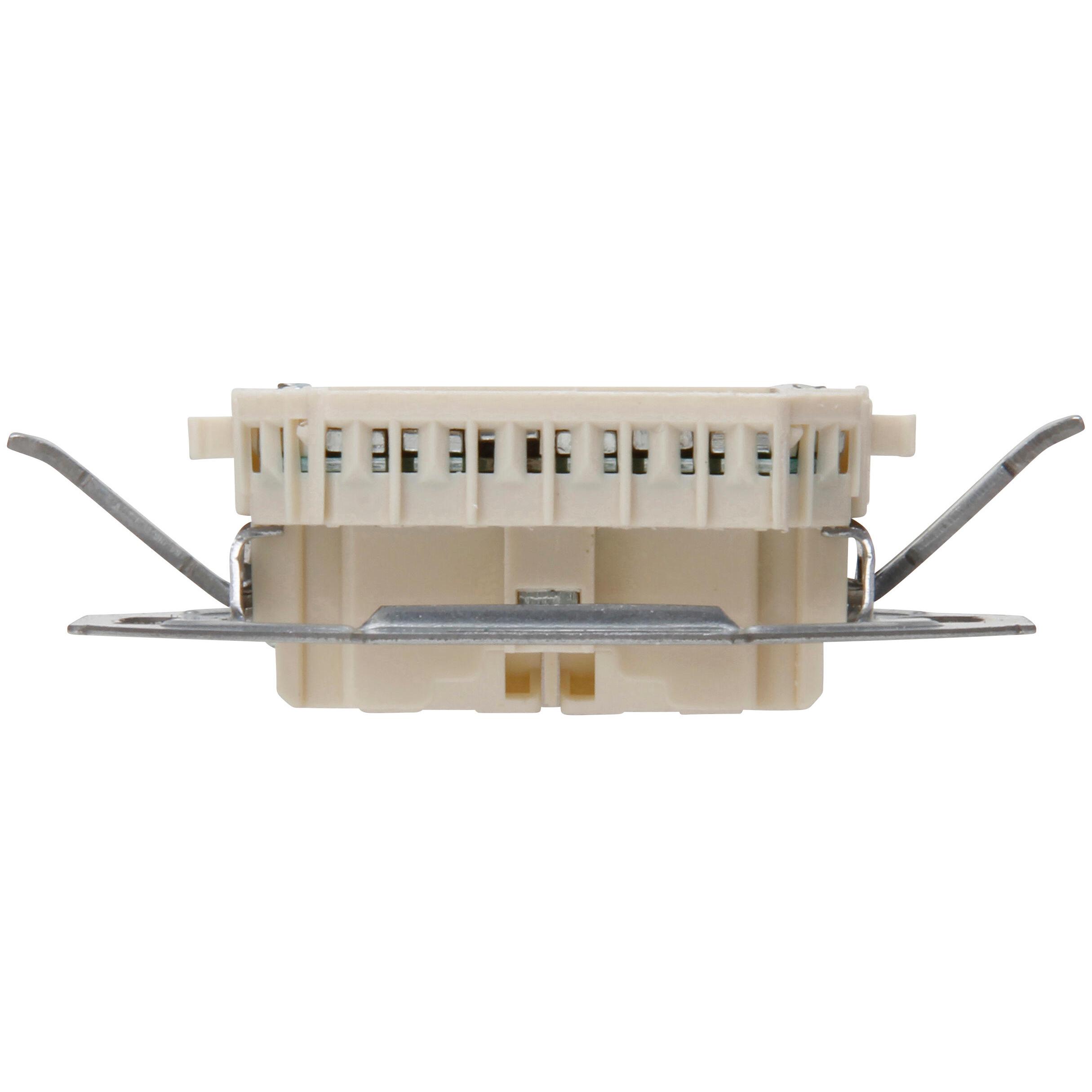

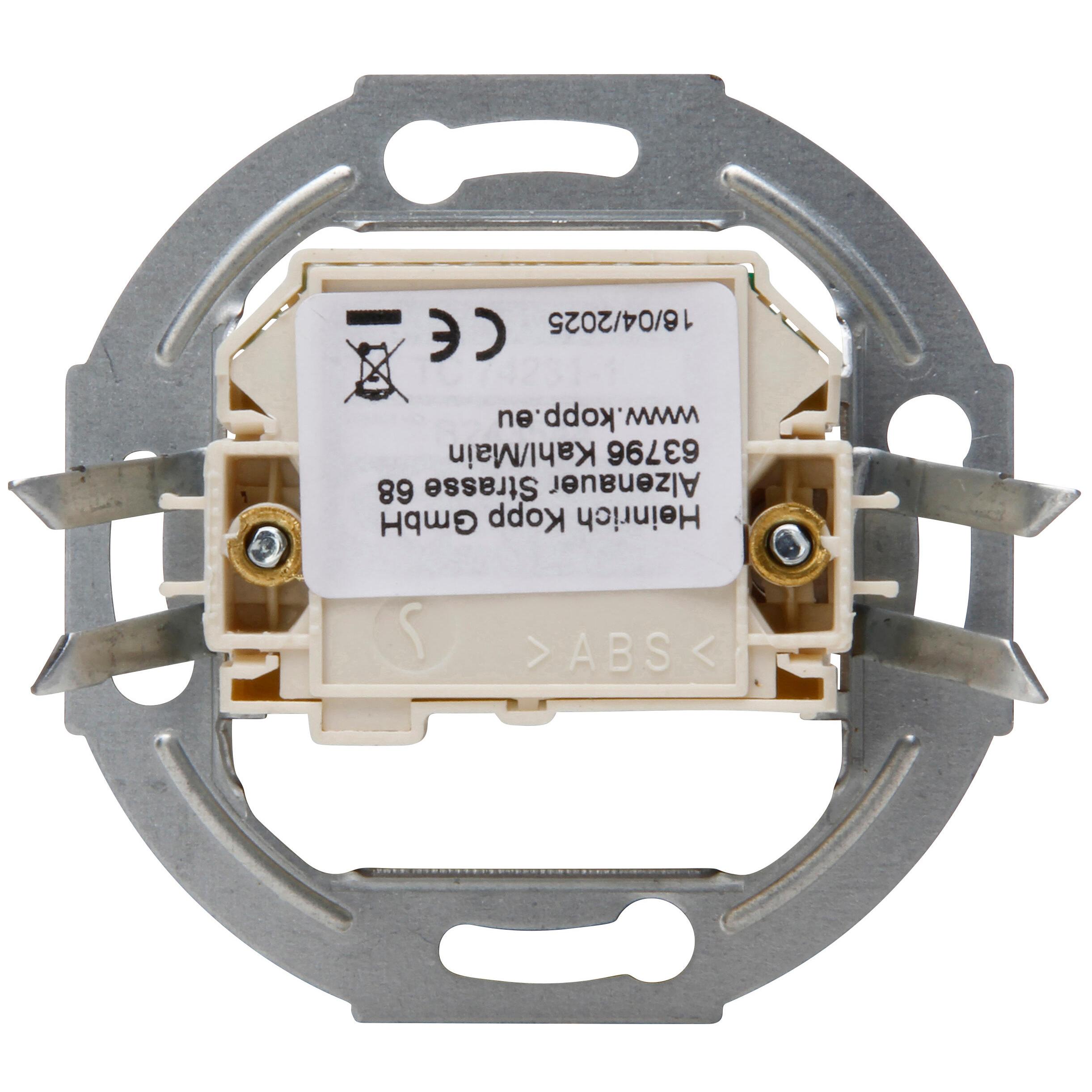

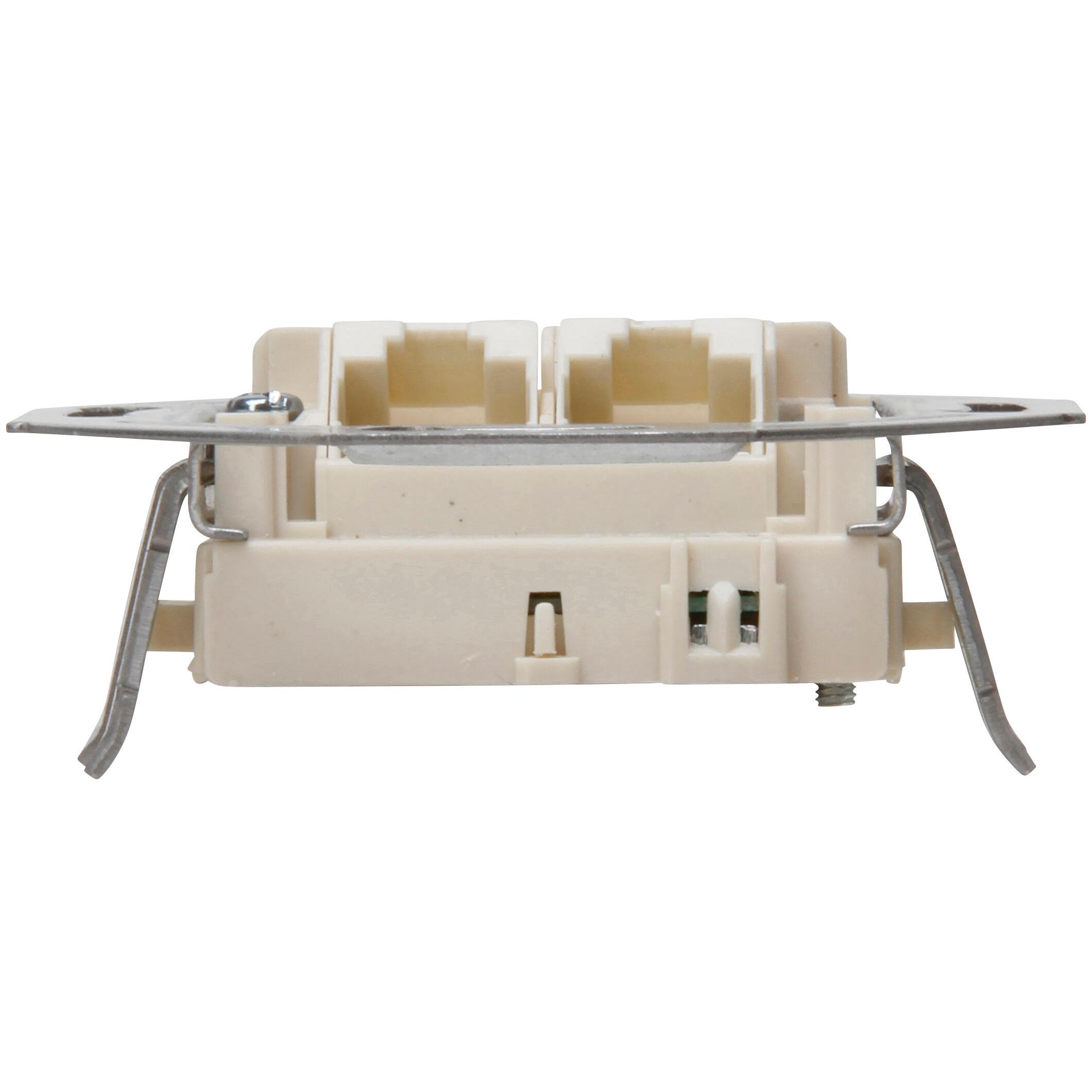

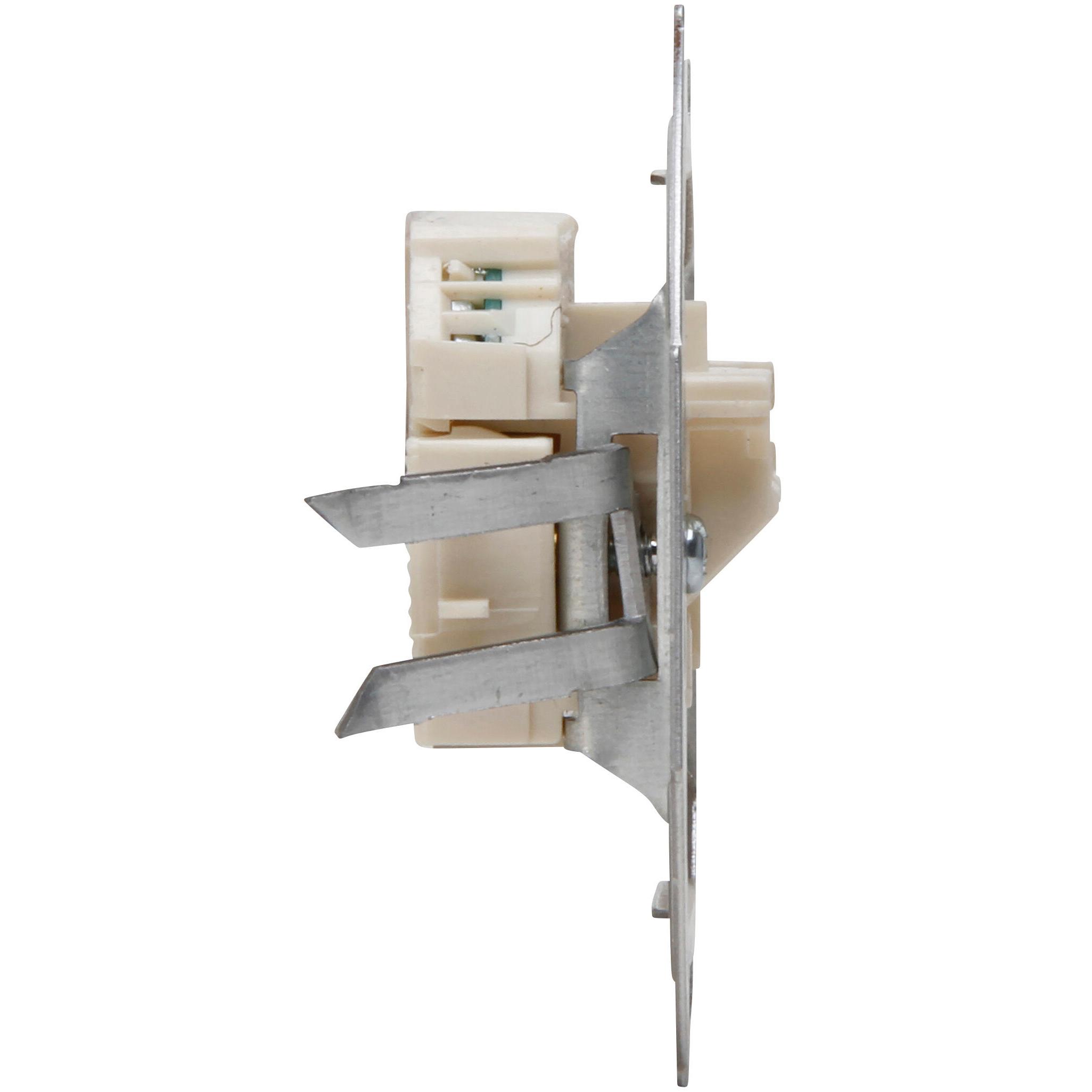

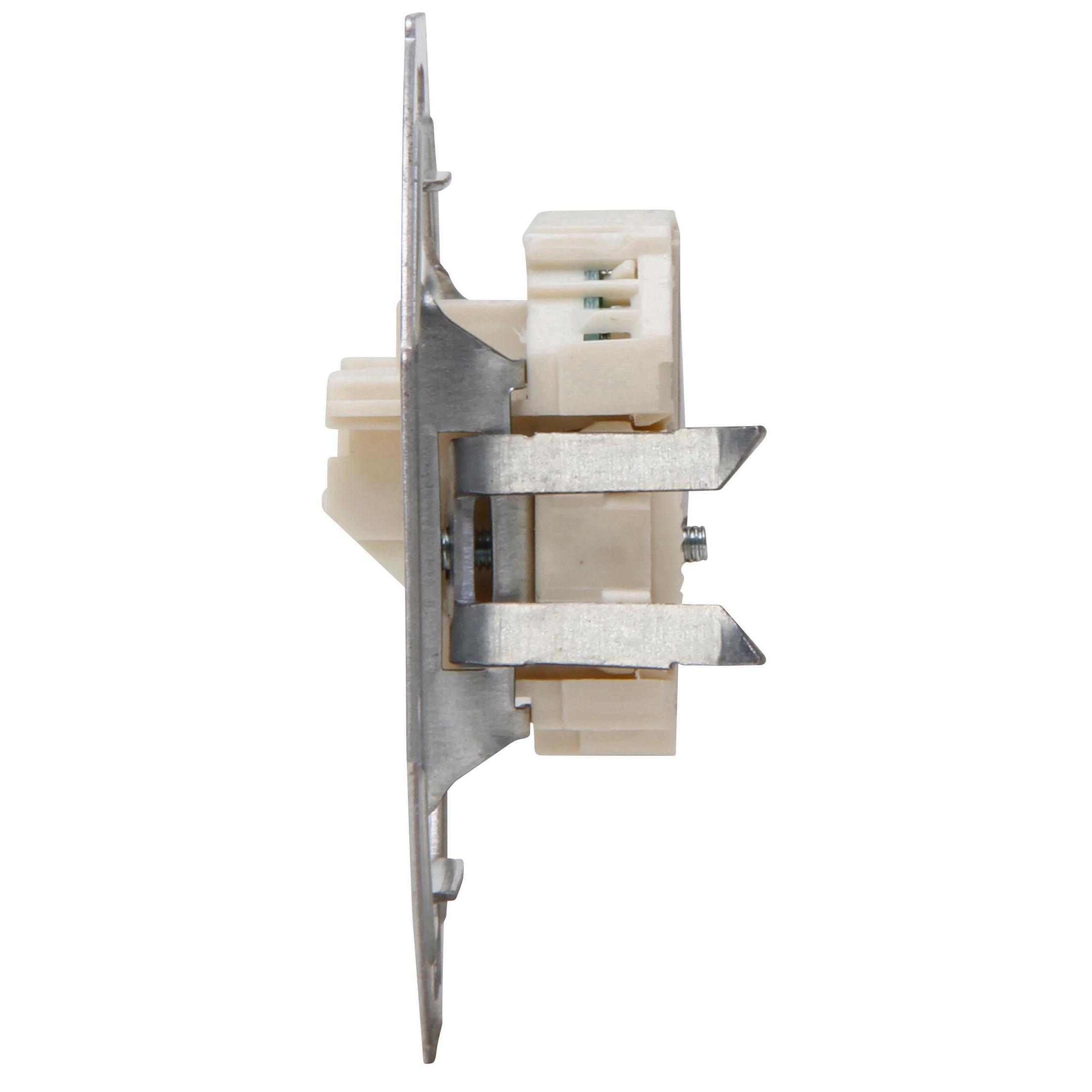

UAE connection socket, for telephone and data technology, RJ11/12, RJ45, 8 poles, 2 connection
UAE-connection socket, universal connection unit for telephone and data technology ISDN compatible RJ11/12, RJ45, with angled lead out, screw terminals, flush mounted, 8 poles connectable, 2 parallel connectors
| Characteristic | Value |
|---|---|
| Article Nr | 115400186 |
| PU | 2 |
| EAN | 4008224582957 |
| Anti-bacterial treatment | no |
| Number of modules (module system) | 0 |
| Surface finishing | Glossy |
| Outlet direction | Inclined |
| Type of fastening | Mounting with claw and screw |
| Imprintable label | Without indication field |
| Shielded buses | no |
| Colour | Stainless steel |
| Suitable for number of connectors | 2 |
| Suitable for degree of protection | IP20 |
| Shielded housing | no |
| Width of device | 115,0 mm |
| Height of device | 40,0 mm |
| Depth of device | 131,0 mm |
| Halogen free | yes |
| Contact type | Female |
| Luster terminal | no |
| Min. depth of built-in installation box | 32,0 mm |
| With imprint | no |
| With lighting | no |
| With buses/couplings | no |
| With hinged lid | no |
| With dust cover | no |
| With strain relief | no |
| Mounting method | EV000383 – Flush-mounted (plaster) |
| Surface protection | Untreated |
| RAL-number (similar) | 9006 |
| Impact strength | IK00 |
| Support ring | yes |
| Transparent | no |
| Utilization | For data connection housing |
| Material | Plastic |
| Material quality | Thermoplastic |
| Assembly arrangement | Basic element |
| Netzstecker - Typbezeichnung | ohne |
