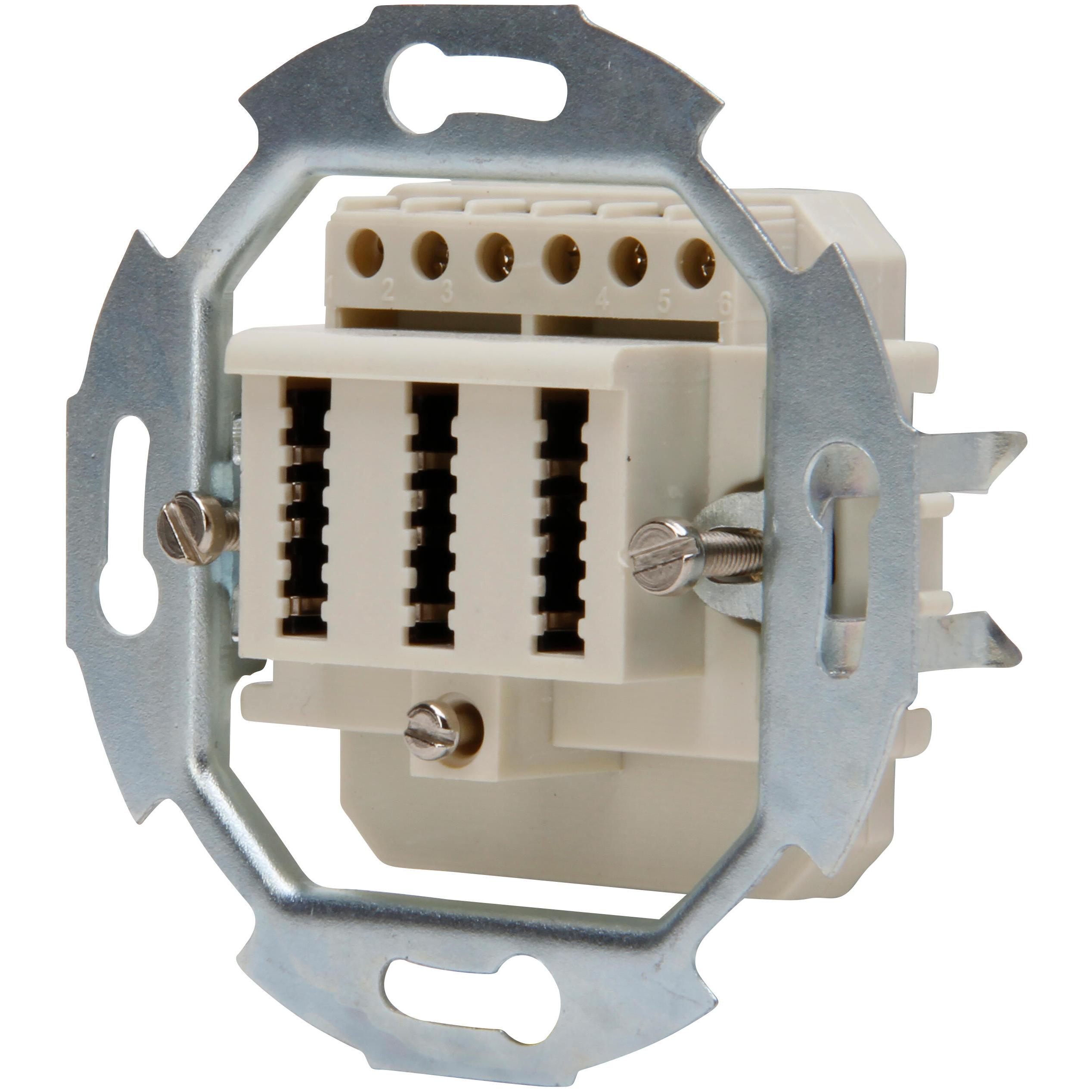

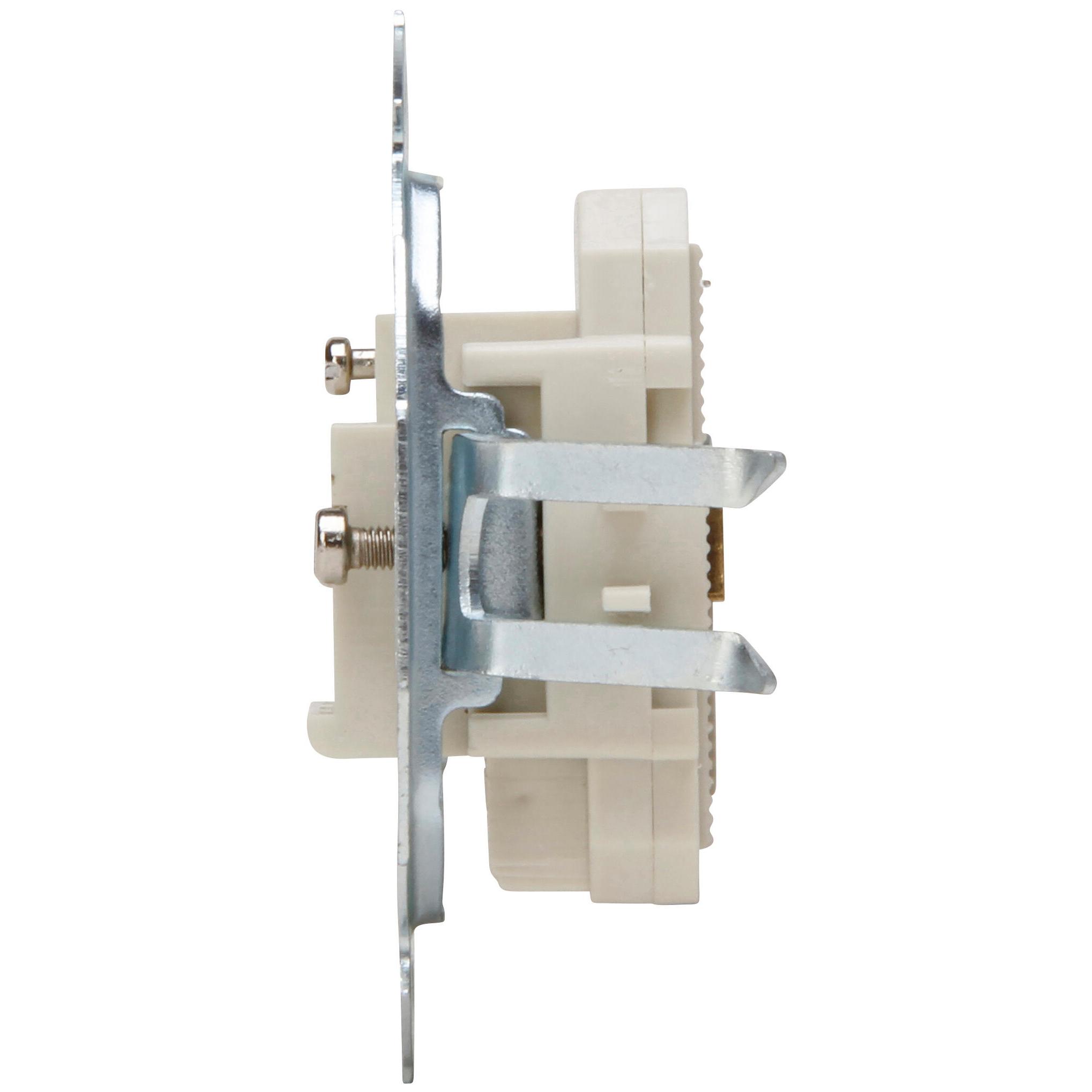

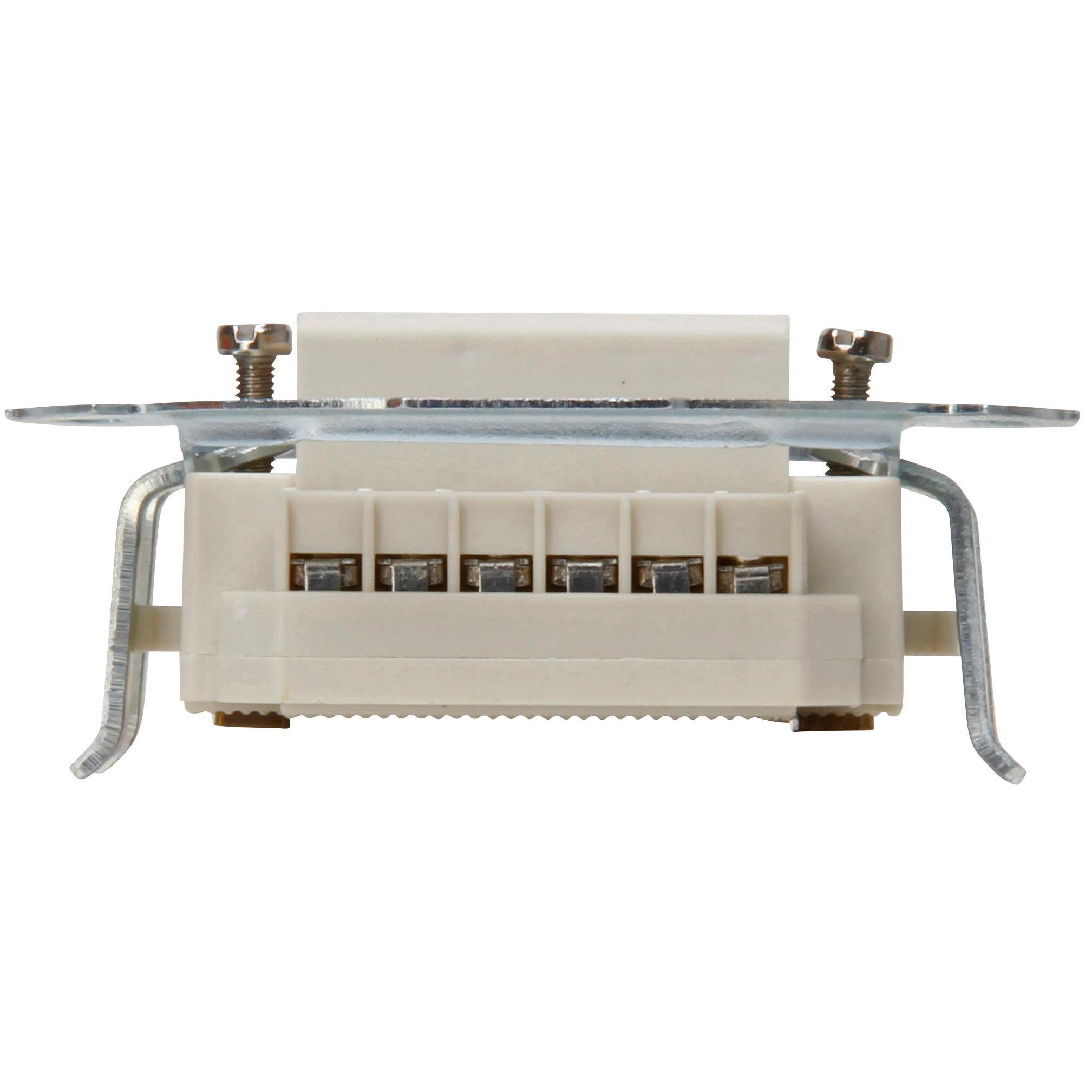

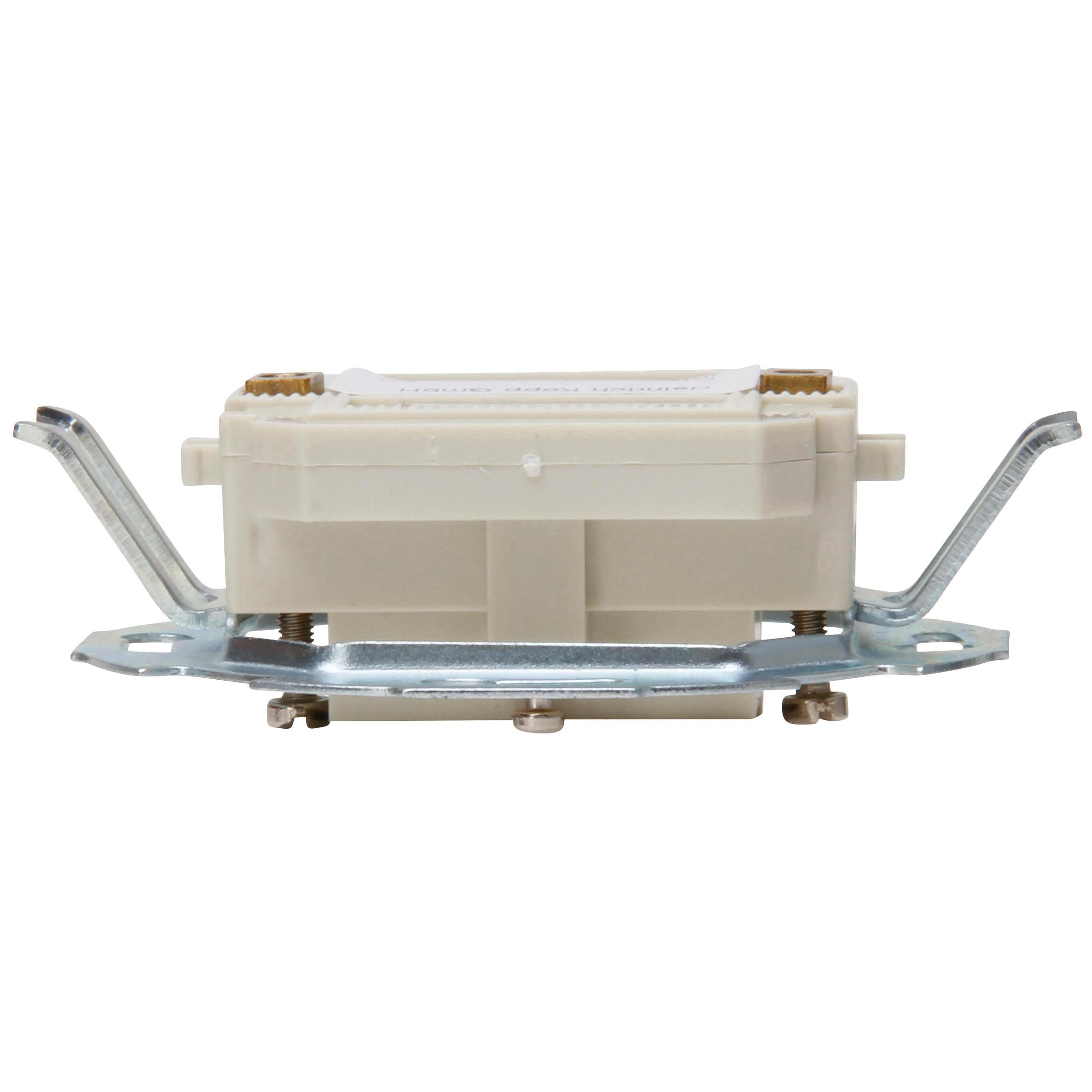

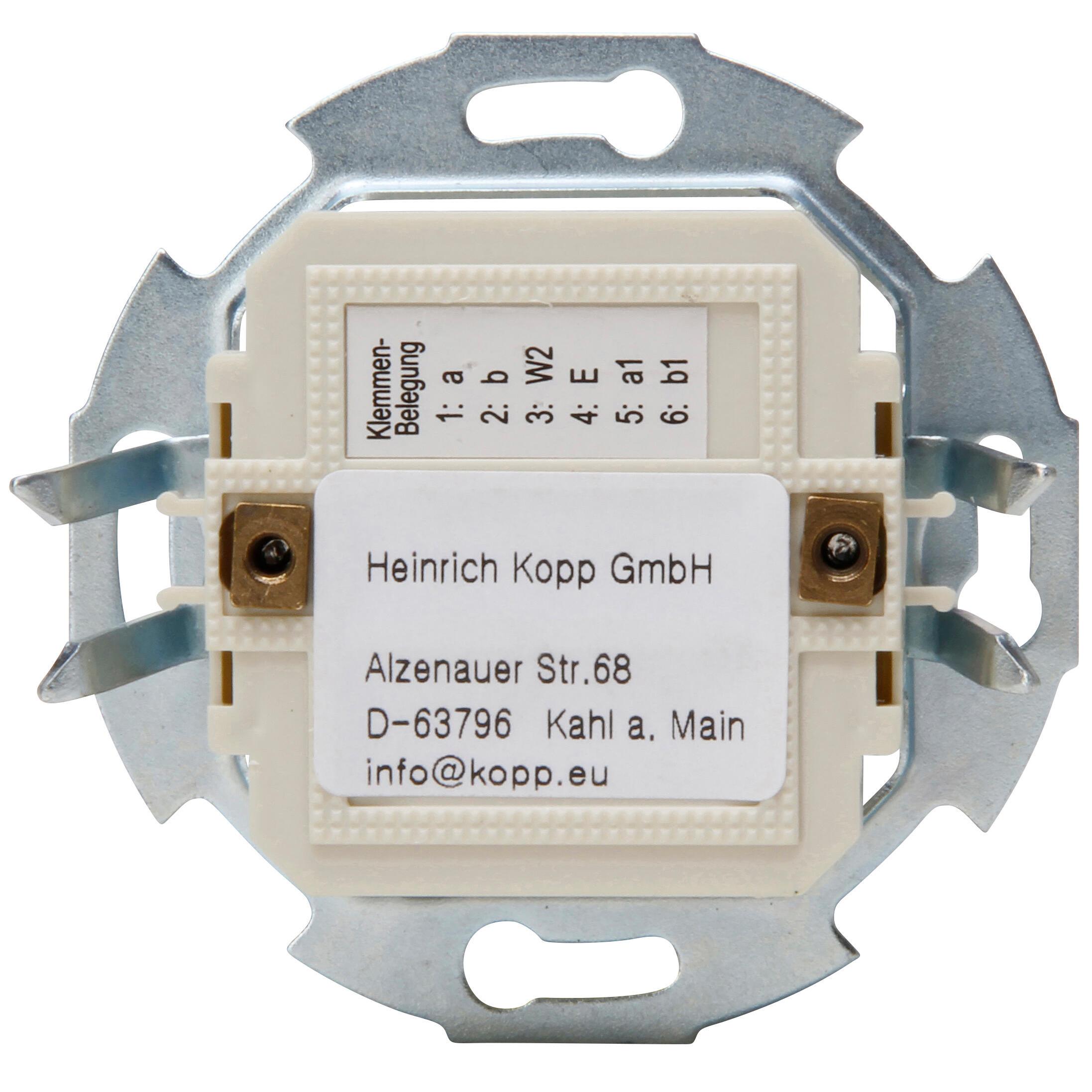

Telephone connection socket TDO
Telephone connection socket TDO, AT
| Characteristic | Value |
|---|---|
| Article Nr | 112301514 |
| PU | 2 |
| EAN | 4008224693912 |
| Anti-bacterial treatment | no |
| Number of modules (module system) | 0 |
| Outlet direction | Straight |
| Type of fastening | Mounting with claw and screw |
| Imprintable label | Without indication field |
| Shielded buses | no |
| Colour | aluminium |
| Suitable for number of connectors | 2 |
| Suitable for degree of protection | IP20 |
| Shielded housing | no |
| Width of device | 117,0 mm |
| Height of device | 38,0 mm |
| Depth of device | 133,0 mm |
| Halogen free | yes |
| Isolated connections | no |
| Contact type | Female |
| Luster terminal | no |
| With imprint | no |
| With lighting | no |
| With buses/couplings | yes |
| With hinged lid | no |
| With dust cover | no |
| With strain relief | no |
| Mounting method | Flush mounted |
| Surface protection | Untreated |
| RAL-number (similar) | 9006 |
| Impact strength | IK00 |
| Support ring | yes |
| Transparent | no |
| Utilization | TDO |
| Material | Plastic |
| Material quality | Thermoplastic |
| Assembly arrangement | Basic element with central cover plate |
| Netzstecker - Typbezeichnung | ohne |
