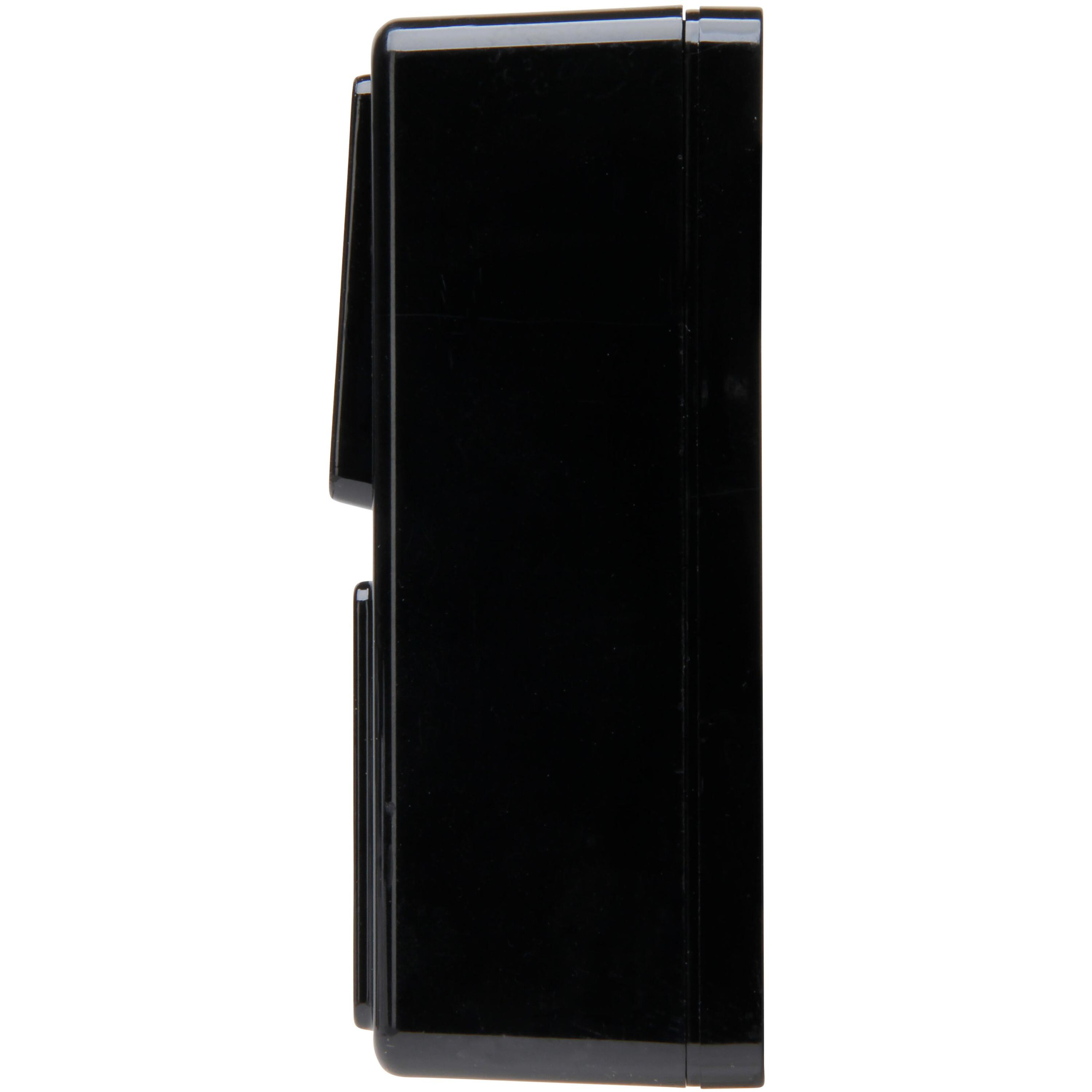

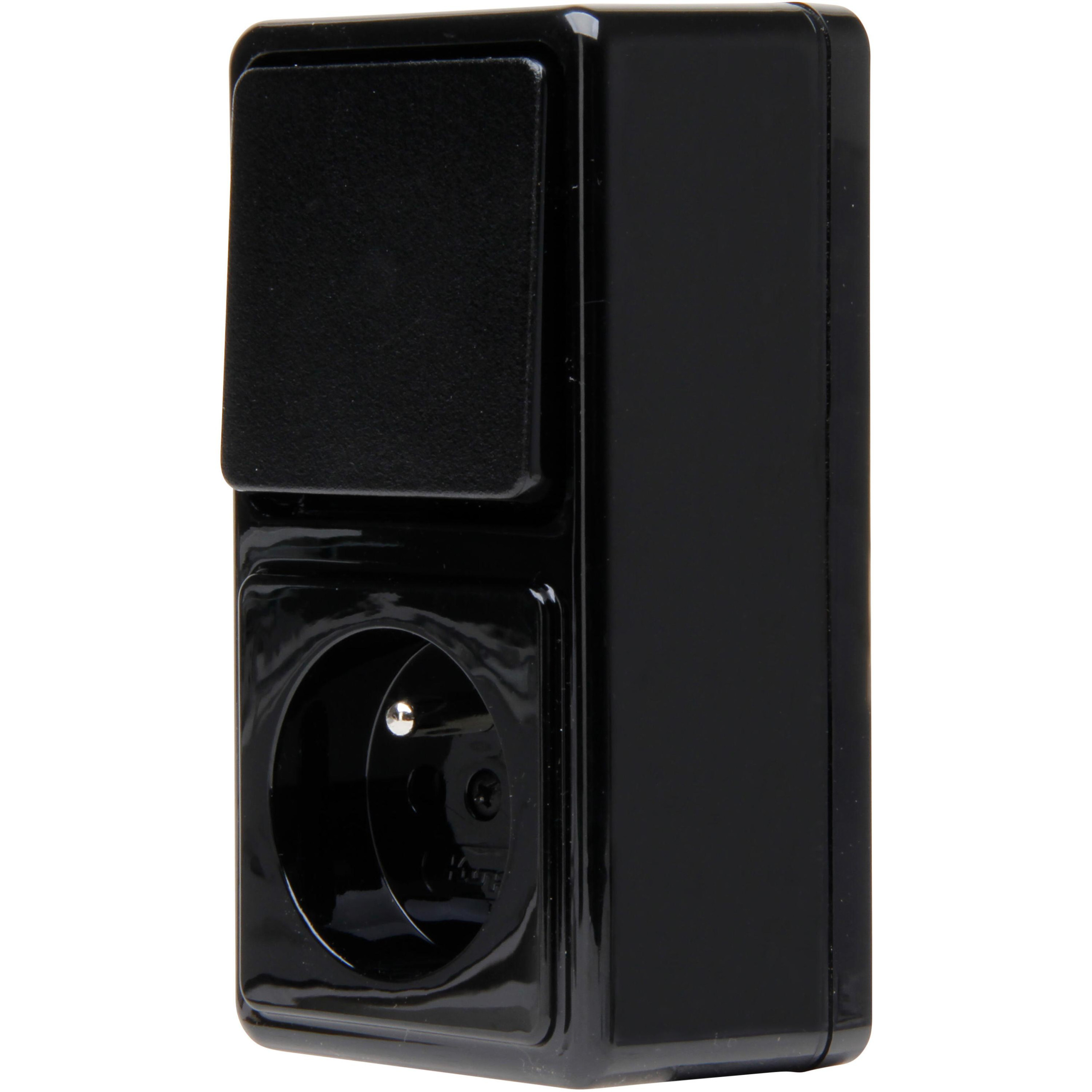

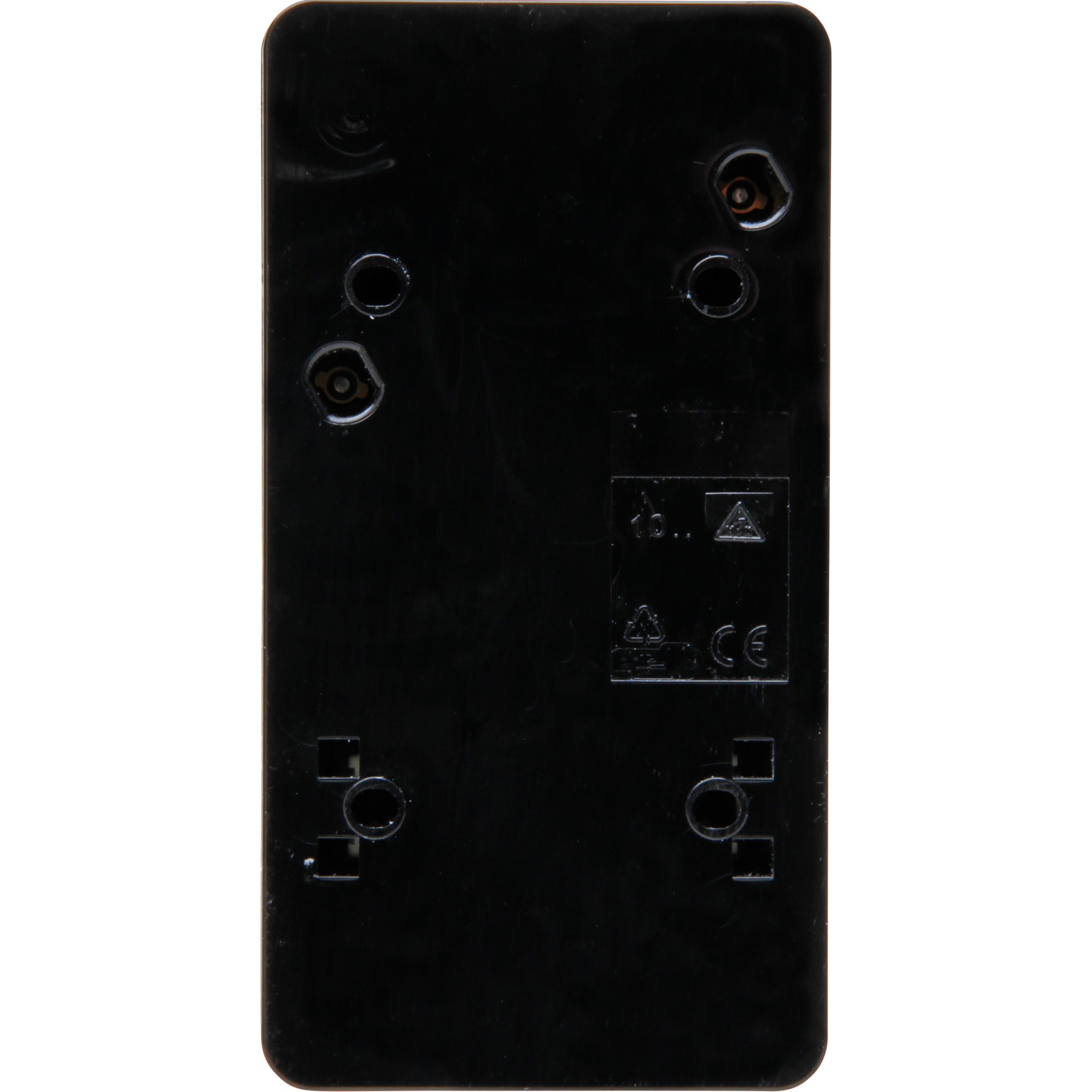

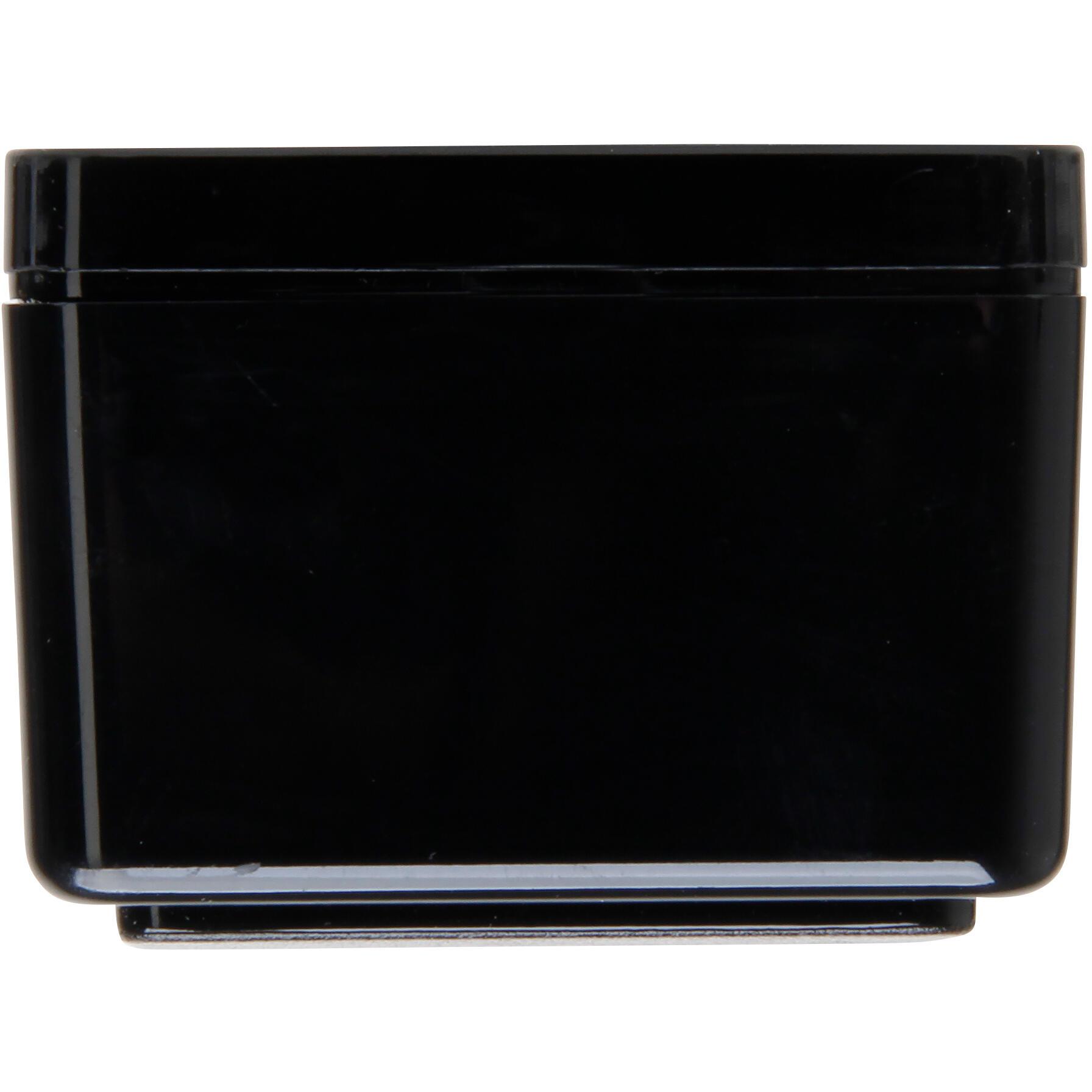

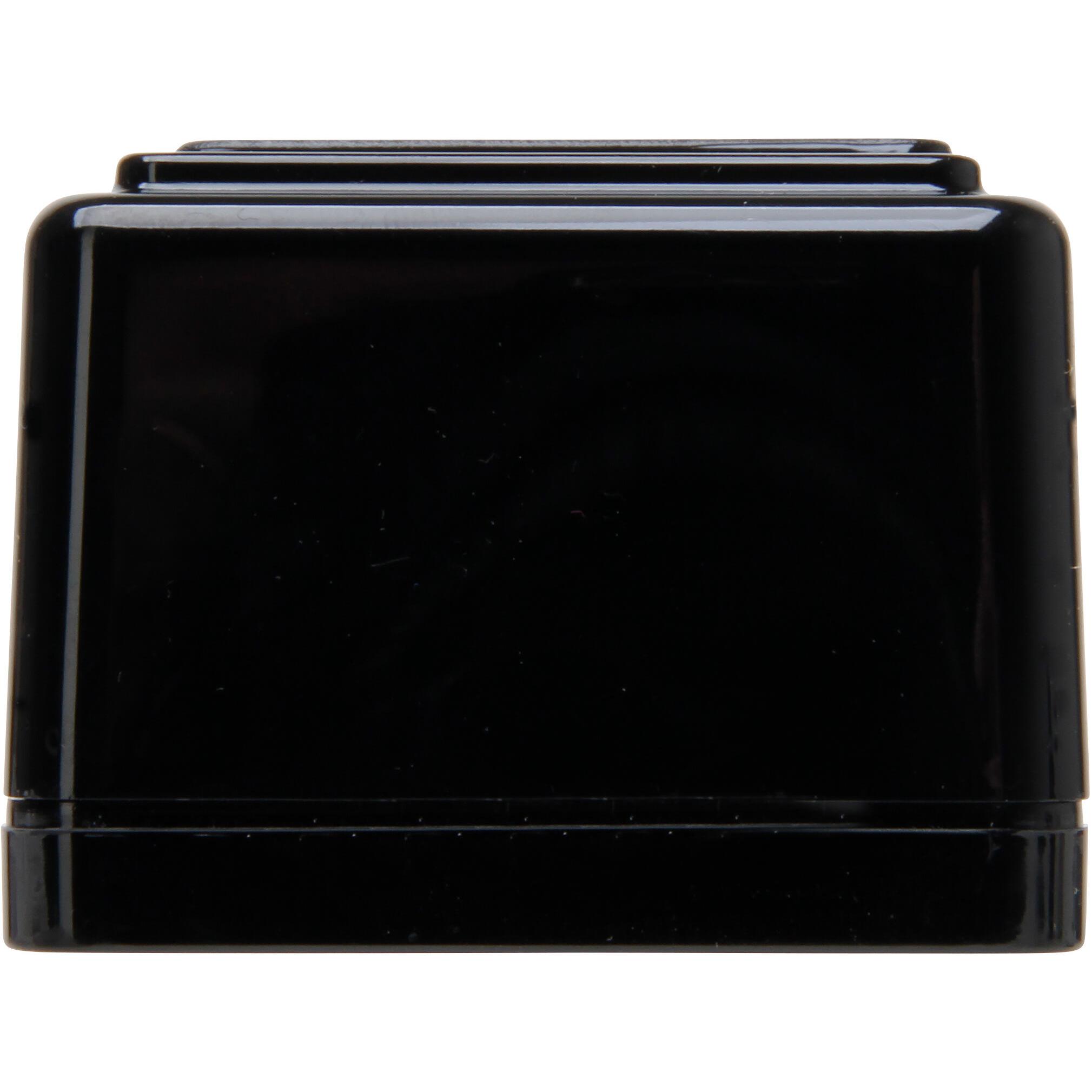

STANDARD – Kombination Universalschalter MSK Steckdose, colour: black
STANDARD – surface mount, combination universal switch (off and change-over switch) and earthed socket outlet with central earth contact, without shutter, 10AX/16A, 250V~, IP20, colour: black
| Characteristic | Value |
|---|---|
| Article Nr | 109005007 |
| PU | 5 |
| EAN | 4008224669276 |
| Connection type | Push-in clamp |
| Number of active pins (flat) | 0 |
| Number of active pins (round) | 1 |
| Number of units | 2 |
| Number of socket outlets | 1 |
| Number of socket outlets switchable | 0 |
| Number of ports USB-A | 0 |
| Number of ports USB-C | 0 |
| Type of USB power supply | not applicable |
| Model | Grounding pin |
| Surface finishing | not applicable |
| Type of socket outlet | Earthing pin |
| Type of switch | Two-way switch |
| Eject-mechanism | no |
| Method of operation | Rocker |
| Type of fastening | Mounting with screw |
| Rated fault current | 0,00 A |
| Colour | Black |
| Farbe (Kopp-Bezeichnung) | schwarz |
| Colour of switch operator | not applicable |
| Fault current protection | no |
| Frequency | 50 – 50 Hz |
| Suitable for degree of protection | IP20 |
| Width of device | 64,2 mm |
| Height of device | 123,0 mm |
| Depth of device | 50,0 mm |
| Halogen free | yes |
| IFTTT support available | no |
| Compatible with Amazon Alexa | no |
| Compatible with Apple HomeKit | no |
| Compatible with Google Assistant | no |
| Min. depth of built-in installation box | 0,0 mm |
| With lighting | no |
| With miniature fuse | no |
| Mounting method | Aufputz |
| Mounting direction | Horizontal |
| Nominal voltage | 250 V |
| Nominal current socket outlet | 16,00 A |
| Surface protection | not applicable |
| RAL-number (similar) | 9005 |
| Transparent | no |
| Material | Plastic |
| Material quality | Thermoplastic |
| Over voltage protection | no |
| Netzstecker - Typbezeichnung | ohne |
